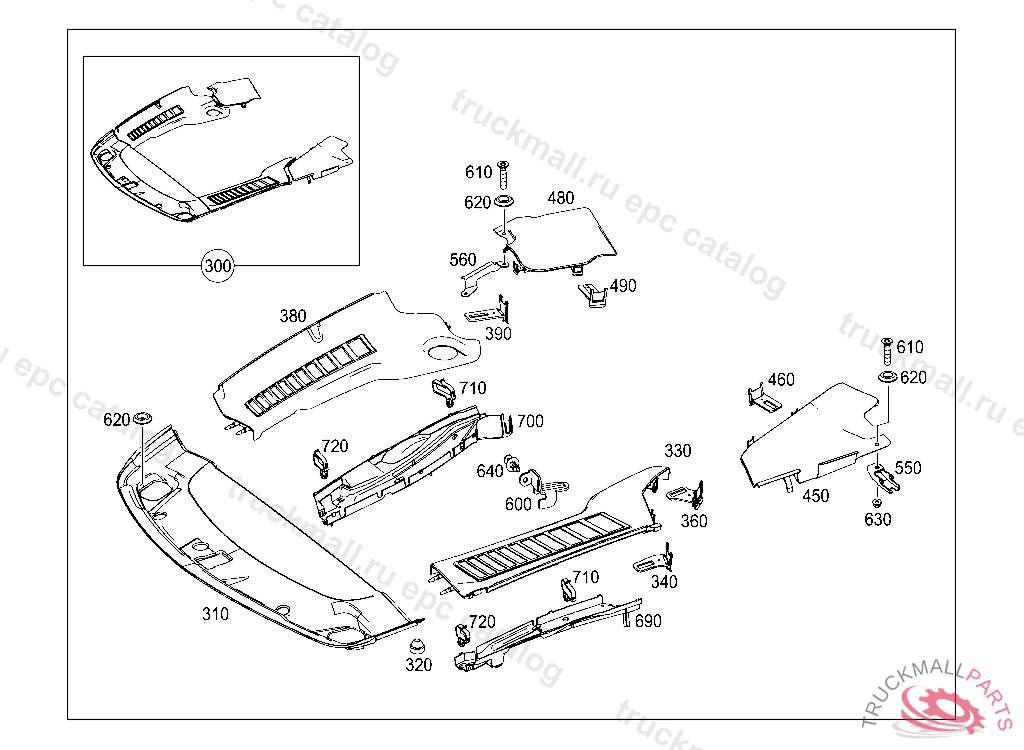

Поз.
Артикул
Описание
300
TS COVER F ENGINE COMP.
300
TS COVER F ENGINE COMP.
300
TS COVER F ENGINE COMP. , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 00653720110531, Replaced By: A1975202422
300
TS COVER F ENGINE COMP. , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 00653720110531, Replaced By: A1975202522
310
COVER F ENGINE COMP. TOP CENTER
320
GROMMET OIL COOLER
330
COVER LEFT CENTRAL
330
COVER F ENGINE COMP. LEFT CENTRAL
330
COVER F ENGINE COMP. LEFT CENTRAL, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 00653720110531, Replaced By: A1975202222
340
BRACKET LEFT CENTRAL 70°
360
BRACKET TO COVER LEFT, REAR 127°
380
COVER F ENGINE COMP. RIGHT CENTRAL
380
COVER RIGHT CENTRAL
390
BRACKET REAR LEFT 90°
450
COVER F ENGINE COMP. LEFT REAR
460
BRACKET REAR LEFT 90°
480
COVER F ENGINE COMP. RIGHT REAR
490
BRACKET REAR LEFT 90°
550
BRACKET LEFT 0°
560
BRACKET RIGHT
600
BRACKET COVERING
610
SCREW ATTACHMENT COVER LEFT M5X20
620
WASHER MOUNTING, COVER 5,5X19,1
630
NUT , Replaced By: N913023006001
640
RIVET MOUNTING, HANDLE
690
COVER LEFT CENTER, LOWER SECTION
700
COVER RIGHT CENTER, LOWER SECTION
710
LINE FASTENER REAR COVERING
720
LINE FASTENER FRONT COVERING
