Поз.
Артикул
Описание
5

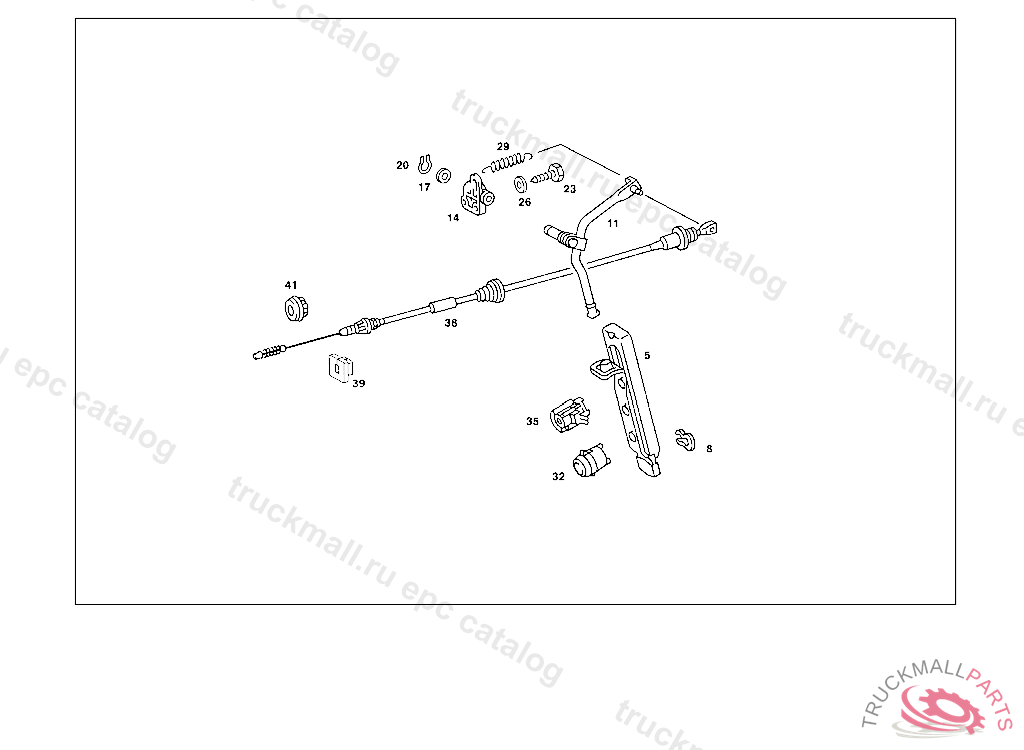

ACCELERATOR PEDAL
8
CLIP
8
BRACKET , Replaced By: A1249888678
11
LEVER ACCELERATOR PEDAL
14
BEARING PEDAL LEVER TO FRONT PANEL, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
17
FITTED WASHER ACCELERATOR PEDAL BEARING,B 838714,J 003392
20
LOCK RINGTO 000 553 37 01,000 553 39 01,
23
SHEET METAL SCREW , Replaced By: A0009906836
26
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
29
SPRING ACCELERATOR PEDAL,B 838714,J 003392
32
STOP ACCELERATOR PEDAL,A 907056
32
STOP FULL THROTTLE
35
SWITCH , NOT USED
35
SWITCH , NOT USED
35
SWITCH (KICK-DOWN SWITCH)
38
WIRE CABLE
38
WIRE CABLE
39
GUIDE
41
RUBBER BUFFER WIRE CABLE TO FIRE WALL, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
