190 E AUSTRALIA
›
201.024 FROM 09/88
›
46 STEERING
›

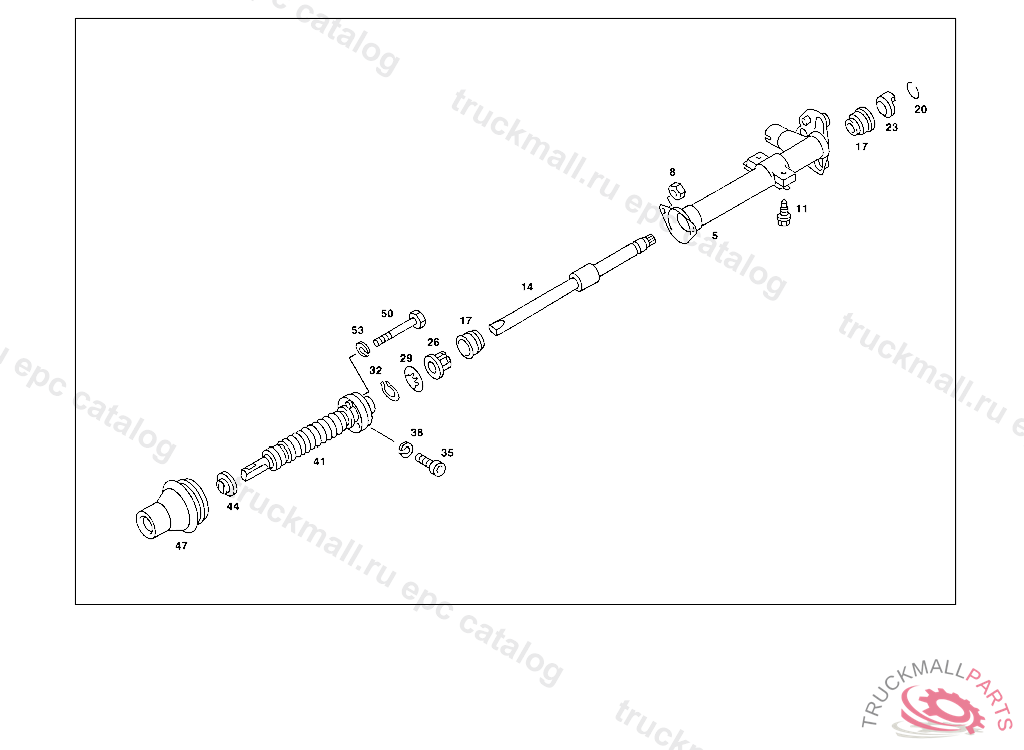

075 STEERG.COLUMN JACKET TUBE & STEERG. SHAFT
Mercedes A1234620460 - Уплотнительное кольцо
190 E AUSTRALIA 201.024 FROM 09/88
46 STEERING - 075 STEERG.COLUMN JACKET TUBE & STEERG. SHAFT
Поз.
Артикул
Описание
5
A2014604116
STEER. COLUMN JACKET TUBE
8
N000934006013
NUT CYLINDER TO BRACKET TO0002902112
11
A2019900204
SCREW STEERING COLUMN JACKET TUBE TO BODY
14
A2014601309
STEERING SHAFT , Replaced By: A2014602009
14
A2014602009
STEERING SHAFT TOP
17
A1269810025
BALL BEARING
20
N912009025100
SNAP RING
23
A1264620051
RING
26
A2014620017
CONICAL SLEEVE
29
A1239930226
DISC SPRING , 023 108180 033 045305 123 087739 130 110887
32
N900055025401
LOCK RING
35
N000912008098
SCREW , Replaced By: N000912008204
38
N912006008000
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL
41
A2014601909
STEERING SHAFT BOTTOM
44
A1234620460
SEAL RING
47
A2014621796
BOOT
50
A1239900720
SCREW , Replaced By: A2029902101
50
A2029902101
SCREW
53
N912006008000
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL
