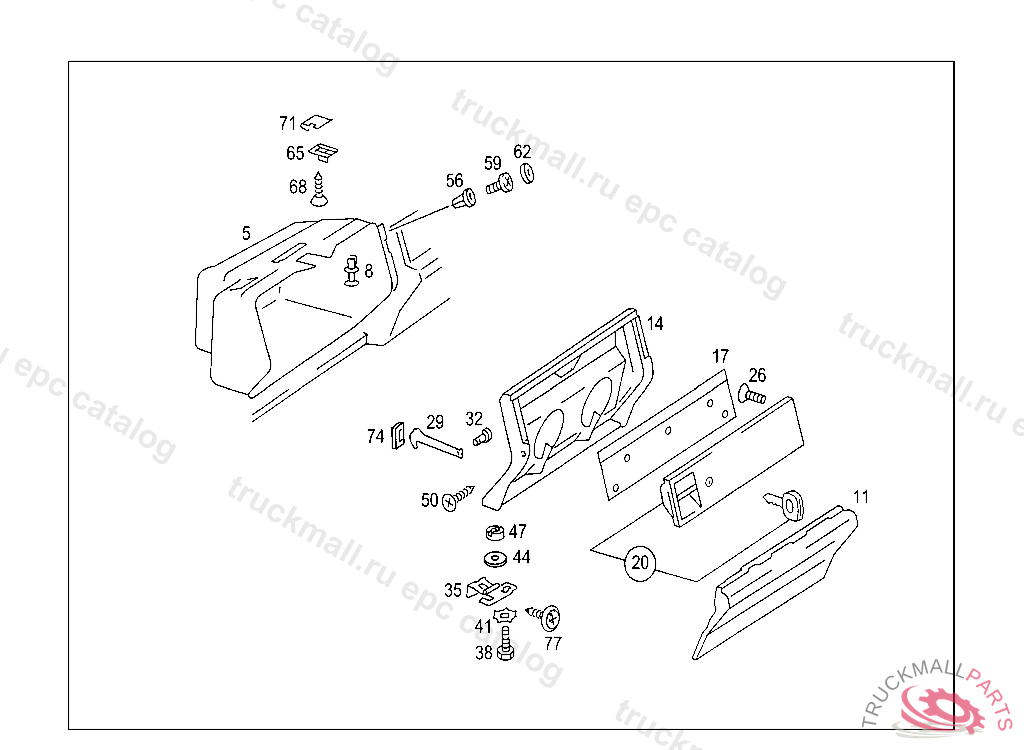

Поз.
Артикул
Описание
5
GLOVE COMPARTMENT
5
GLOVE COMPARTMENT
5
GLOVE COMPARTMENT
8
RIVET
11
GLOVE COMPARTMENT LID OUTSIDE PART
11
GLOVE COMPARTMENT LID OUTSIDE PART
14
GLOVE COMPARTMENT LID INSIDE PART
14
GLOVE COMPARTMENT LID INSIDE PART
17
ORNAMENTAL COVER BETWEEN GLOVE COMPARTMENT LID EXTERIOR AND INTERIOR PARTS
20
PROTECTIVE STRIP WORKSHOP VERSION WITH KEY, ONLY W/CODE 466 (CENTRAL LOCKING MECHANISM), WITH LOCK NUMBER UNDEFINED,FOR STORAGE PURPOSES ONLY
20
PROTECTIVE STRIP WORKSHOP VERSION WITH KEY, ONLY W/CODE 466 (CENTRAL LOCKING MECHANISM), WITH LOCK NUMBER UNDEFINED,FOR STORAGE PURPOSES ONLY
26
SCREW WASHER TO STEERING COLUMN BRACKET M 4X10,4 231945
29
STOP LOCK TO GLOVE COMPARTMENT LID
32
PIN LOCK TO GLOVE COMPARTMENT LID
35
HINGE GLOVE COMPARTMENT LID TO INSTRUMENT PANEL
38
SCREW HINGE TO GLOVE COMPARTMENT LID
41
LOCK HINGE TO GLOVE COMPARTMENT LID,F 078641
44
WASHER , Replaced By: N009021005205
44
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
47
NUT
50
TAPPING SCREW GLOVE COMPARTMENT LID INTERIOR PART B 3.5X16
50
SHEET METAL SCREW LINING TO REAR BACKREST
56
TREENAIL
59
SCREW
62
LOCKING CAP
65
STRIKER GLOVE COMPARTMENT LID TO INSTRUMENT PANEL
68
SHEET METAL SCREW
71
LOCK
74
GROMMET GLOVE COMPARTMENT LID TO INSTRUMENT PANEL
77
TAPPING SCREW CONTROL UNIT TO FIRE WALL
77
SHEET METAL SCREW BRACKET TO PROTECTIVE GRILL
999
CLAMP
