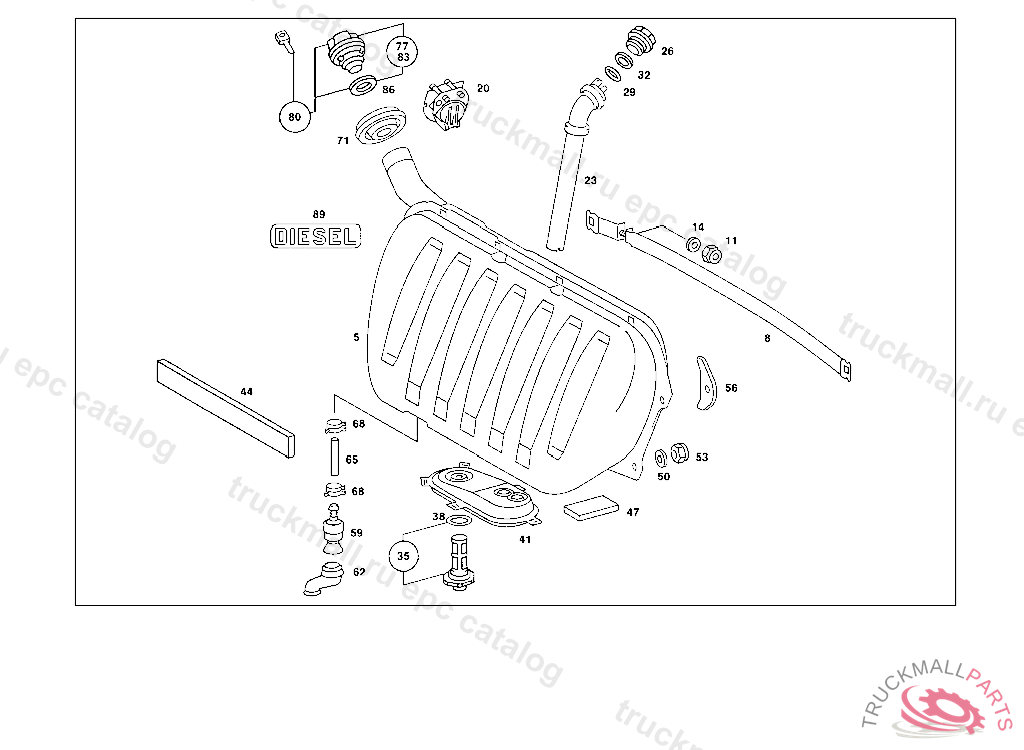

Поз.
Артикул
Описание
5
FUEL TANK , A 663706 F 925786
5
FUEL TANK70 L.
8
STRAP FUEL TANK TO WHEELHOUSE, ONLY APPLICABLE TO PLASTIC FUEL TANK A 663706 F 925786
11
NUT SWITCH TO FLOOR PLATE
14
WASHER BRACKET TO AIR INTAKE SCOOP
23
GAUGE SENDER UNIT
26
FLANGE
29
SEAL RING , ONLY APPLICABLE TO PLASTIC FUEL TANK A 663706 F 925786
29
SEAL RING
29
SEAL RING , Replaced By: A0149975348
32
SEAL RING
35
FUEL STRAINER , Replaced By: A1244700106
35
FUEL STRAINER PARTS KIT
38
SEAL RING
41
BOOT
41
BOOT , ONLY APPLICABLE TO PLASTIC FUEL TANK A 663706 F 925786
44
PAD FUEL TANK FRONT SIDE, ONLY APPLICABLE TO STEEL FUEL TANK
47
PAD FUEL TANK BOTTOM SIDE
50
WASHER PROTECTIVE PLATE TO BRACKET,5 502998
53
NUT SWITCH TO FLOOR PLATE
56
REINFORCEMENT , ONLY APPLICABLE TO 70-LITER FUEL TANK
59
VALVE , 003,004,080,083 NOT FOR RETROFIT/CATALYST VEHICLES
59
VALVE , 003,004,080,083 NOT FOR RETROFIT/CATALYST VEHICLES
62
BOOT , 003,004,080,083 NOT FOR RETROFIT/CATALYST VEHICLES
65
HOSE ***
65
HOSE , Replaced By: A2019970852
68
LOOM TIE , Replaced By: A1249972090
68
LOOM TIE
71
GROMMET FILLER NECK THRU FENDER RECESS
71
GROMMET FILLER NECK, ONLY APPLICABLE TO PLASTIC FUEL TANK A 663706 F 925786
77
FILLER CAP MAKE HUF, STATE LOCK NUMBER WHEN ORDERING LOCK NUMBER UP TO 2000,MAKE HUF, LOCK NUMBER FROM2001-3200,MAKE YMOS
77
FILLER CAP MAKE YMOS, STATE LOCK NUMBER WHEN ORDERING LOCK NUMBER UP TO 2000,MAKE HUF, LOCK NUMBER FROM2001-3200,MAKE YMOS
80
FILLER CAP , WITH LOCK UNDEFINED
83
FILLER CAP , Replaced By: A0004700730
86
SEAL RING
89
GUIDE SIGN DIESEL REFILLING
89
GUIDE SIGN , Replaced By: A1245840246
89
GUIDE SIGN , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A2105849217
999
MOUNTING PLATE FUEL TANK TO WHEELHOUSE, ONLY APPLICABLE TO PLASTIC FUEL TANK
