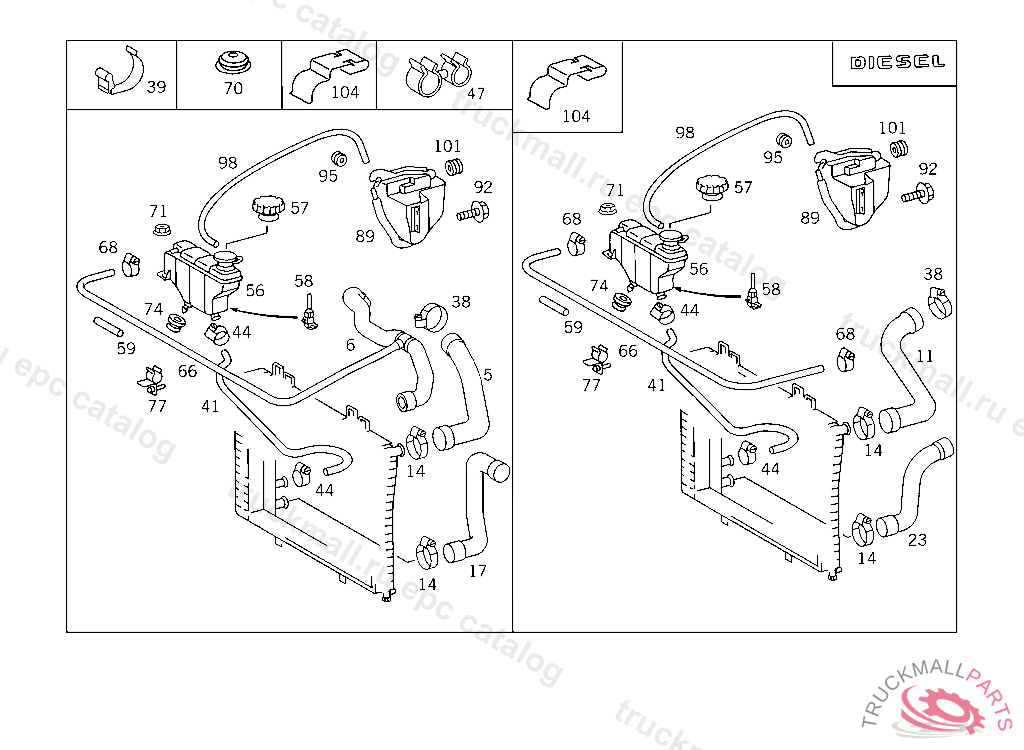

Поз.
Артикул
Описание
5
HOSE TOP
14
LOOM TIE
17
HOSE BOTTOM
38
LOOM TIE. CLAMP HOSE FASTENING
41
HOSE
44
LOOM TIE HOSE TO RADIATOR AND TO EXPANSION TANK
44
CLAMP HOSE FASTENING 28-35 MM,V 207570
56
TANK EXPANSION TANK
57
CLOSING COVER RADIATOR
58
SWITCH,AUTOMATIC EXPANSION TANK, A 328811 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 328810 WITH CODE 807
59
HOSE , Replaced By: A0229972682
59
HOSE OVERFLOW 530 MM, ORDER BY THE METER
66
HOSE ENGINE BREATHING 8X15X2550MM, TO BE ADAPTED DURING ASSEMBLY
68
HOSE CLAMP8-16
68
CLAMP HOSE FASTENING 14-16 MM
71
NUT EXPANSION TANK TO WHEELHOUSE
74
RUBBER MOUNTING EXPANSION TANK TO WHEELHOUSE
77
BRACKET BREATHER LINE
104
BRACKET BREATHER LINE
