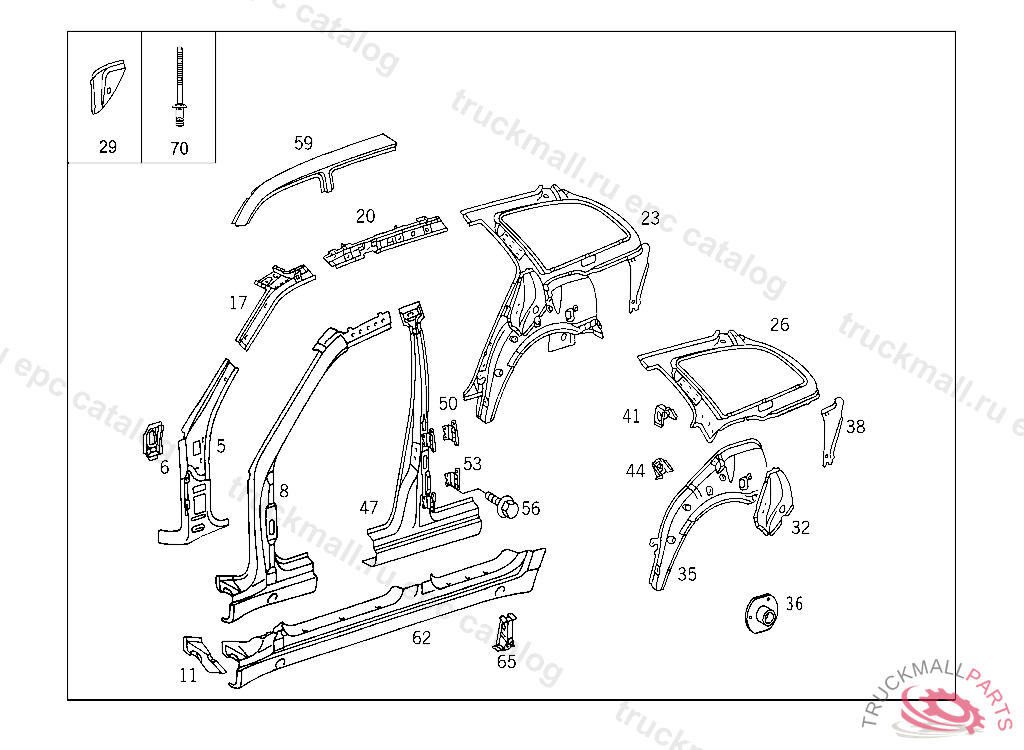

Поз.
Артикул
Описание
5
PILLAR A-PILLAR,INSIDE LEFT
5
PILLAR A-PILLAR,INSIDE RIGHT
6
CONSOLE RIGHT
6
CONSOLE LEFT
8
PANELLING A-PILLAR,RIGHT
8
PANELLING A-PILLAR,LEFT
11
COVERING RIGHT
11
COVERING LEFT
17
PILLAR A-PILLAR,TOP INSIDE LEFT
17
PILLAR A-PILLAR,TOP INSIDE RIGHT
20
ROOF RAIL LATERAL LEFT
20
ROOF RAIL LATERAL RIGHT
23
SIDE PANEL REAR INSIDE RIGHT
23
SIDE PANEL REAR INSIDE LEFT
23
SIDE PANEL , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.F 717070, Replaced By: A2026303701
23
SIDE PANEL , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.F 717070, Replaced By: A2026303801
26
SIDE PANEL REAR LEFT,TOP
26
SIDE PANEL REAR RIGHT,TOP
29
PILLAR REAR RIGHT BOTTOM
32
PILLAR C-PILLAR,OUTSIDE LEFT
32
PILLAR C-PILLAR,OUTSIDE RIGHT
32
PILLAR , Replaced By: A2026300913
32
PILLAR , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.F 717070, Replaced By: A2026301513
35
WHEELHOUSE REAR OUTSIDE RIGHT
35
WHEELHOUSE REAR OUTSIDE LEFT
36
SHEET METAL NUT
38
PILLAR D-PILLAR,INSIDE RIGHT
38
PILLAR D-PILLAR,INSIDE LEFT
41
BRACKET REAR BACKREST STOP TO LEFT WHEELHOUSE (TOWARDS FRONT)
41
BRACKET REAR BACKREST STOP TO RIGHT WHEELHOUSE (TOWARDS FRONT)
44
BRACKET REAR BACKREST STOP TO RIGHT WHEELHOUSE (TOWARDS REAR)
44
BRACKET REAR BACKREST STOP TO LEFT WHEELHOUSE (TOWARDS REAR)
47
PILLAR B-PILLAR ON THE RIGHT
47
PILLAR B-PILLAR ON THE LEFT, A 234551 F 200798
50
HINGE REAR DOOR,TOP LEFT, IF NECESSARY, THE CUTOUT IN THE B-PILLAR MUST BE REWORKED
50
HINGE REAR DOOR,TOP RIGHT, IF NECESSARY, THE CUTOUT IN THE B-PILLAR MUST BE REWORKED
53
HINGE REAR DOOR,BOTTOM LEFT, IF NECESSARY, THE CUTOUT IN THE B-PILLAR MUST BE REWORKED
53
HINGE REAR DOOR,BOTTOM RIGHT, IF NECESSARY, THE CUTOUT IN THE B-PILLAR MUST BE REWORKED
56
SCREW HINGE TO CENTRAL PILLAR
59
ROOF RAIL OUTSIDE LEFT
59
ROOF RAIL OUTSIDE RIGHT
62
SIDE MEMBER RIGHT
62
SIDE MEMBER LEFT
65
CONSOLE LEFT,TO JACK
65
CONSOLE RIGHT,TO JACK
