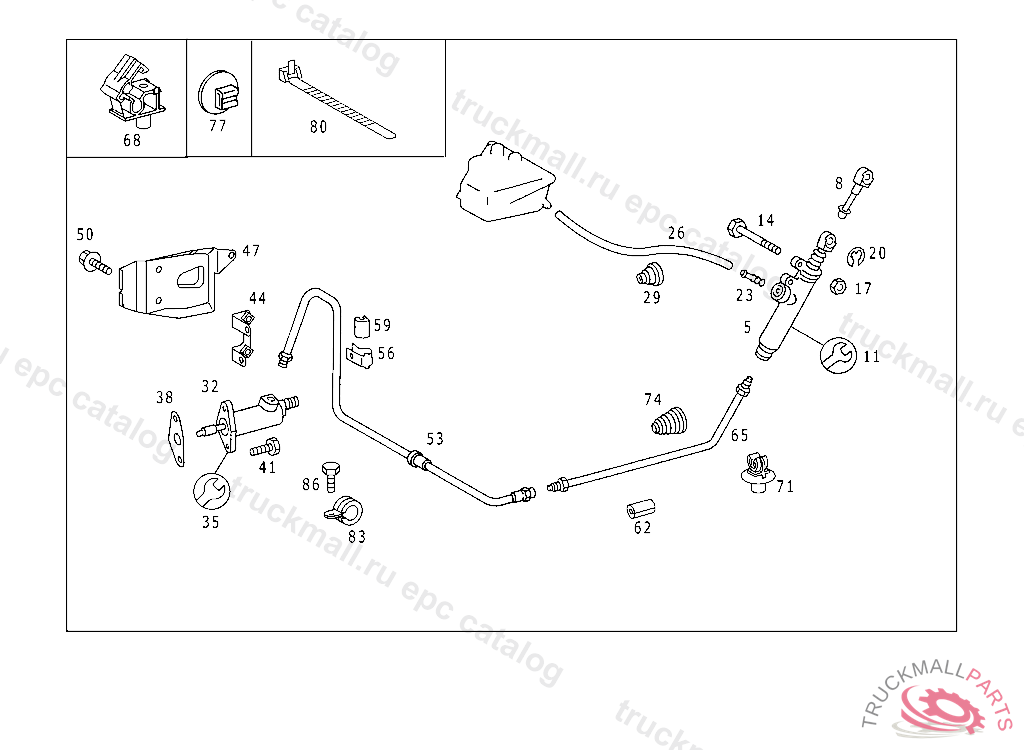

Поз.
Артикул
Описание
5
MASTER CYLINDER. CYLINDER
8
RODTO 001 295 31 06, A 050827 F 003714
11
REPAIR KIT MASTER CYLINDER TO 001 295 31 06,68 06, A 050827 F 003714
14
SCREW COVER PLATE TO BRACKET
17
NUT SPRING-LOADED PUSH ROD
20
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
23
INTERMEDIATE PIECE REFILLING LINE TO MASTER CYLINDER
26
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
29
BOOT
32
SLAVE CYLINDER , USED WITH TRANSMISSION: GL 76/27, 717.445
35
REPAIR KIT SLAVE CYLINDER TO 2012900311,0002958207
38
SHIM SLAVE CYLINDER TO TRANSMISSION CASE
41
SCREW SHIFT LEVER TO BRACKET M8X30
53
LINE CLUTCH LINE
56
BRACKET PIPE LINE TO BELL HOUSING
59
BUSHING PIPE LINE TO BELL HOUSING
62
HOSE30 MM, ORDER BY THE METER
65
LINE FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER, TO BE ADAPTED DURING ASSEMBLY
68
CLAMP PEDAL ASSEMBLY HYDRAULICS, F 03089920000831 R 00225920001012 NO LONGER AVAILABLE
71
CLAMP
74
BOOT CLUTCH LINE IN LEGROOM
77
FASTENER BUTTON ELECTRIC CABLE TO FIRE WALL
80
LOOM TIE , UP TO CHASSIS: 108.012 UNTIL PRODUCTION STOP 108.016 042417 108.018,019 043374 109.016 002452
