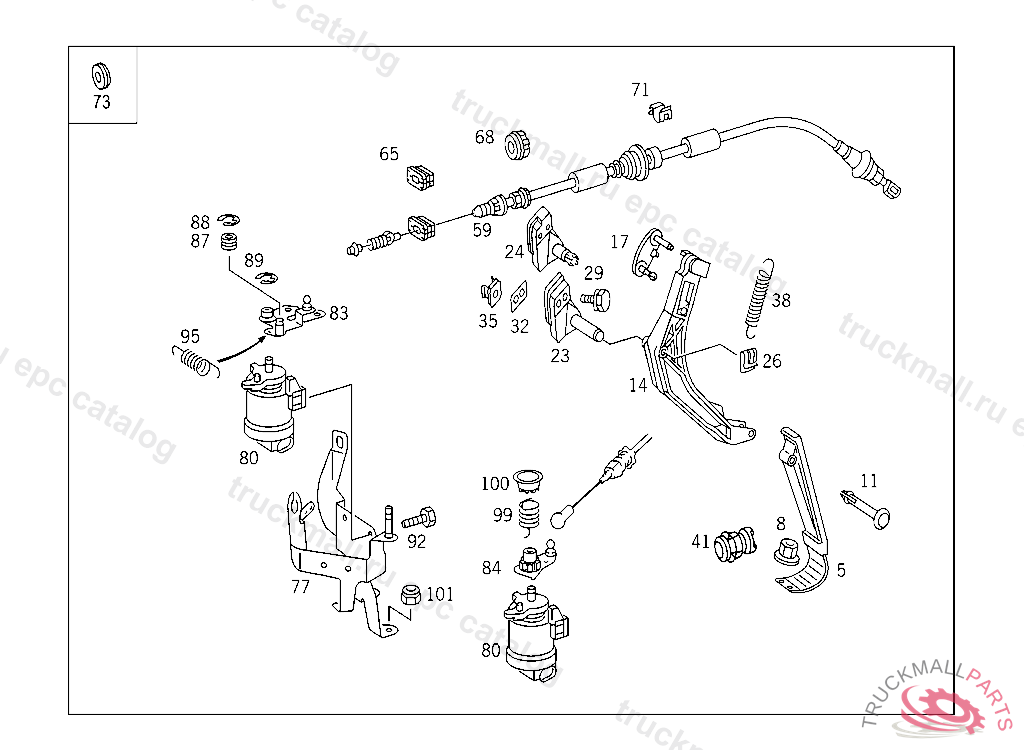

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL , Replaced By: A2203000204
5
ACCELERATOR PEDAL
8
NUT ACCELERATOR PEDAL TO FIRE WALL
11
PIN ACCELERATOR PEDAL TO LEVER
14
LEVER ACCELERATOR PEDAL,F 505053
14
LEVER ACCELERATOR PEDAL,F 505053
14
LEVER ACCELERATOR PEDAL, A 450374 F 505054
14
LEVER ACCELERATOR PEDAL,F 505054
14
LEVER ACCELERATOR PEDAL, A 450374 F 505054
17
LEVER ,B 838715,J 003393 TO BE ADAPTED DURING ASSEMBLY
23
BEARING ACCELERATOR PEDAL BEARING,B 838715,J 003393
24
BEARING ACCELERATOR PEDAL BEARING,A 346276
26
CLIP CABLE TO BRACKET,5 318121
29
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
29
SCREW , WITH DIESEL ENGINE
29
COMBINATION BOLT , Replaced By: N304017006019, +001N000137006204
32
GASKET BEARING TO FIRE WALL
35
NUT RETAINER LICENSE PLATE TO BRACKET
38
SPRING ACCELERATOR PEDAL
38
SPRING ACCELERATOR PEDAL
41
STOP ACCELERATOR PEDAL,A 907056
59
WIRE CABLE , F 758208 EXCEPT CODE 808 ALSO INSTALLED IN VEHICLE TO F 758207 WITH CODE 809
59
WIRE CABLE , F 758208 EXCEPT CODE 808 ALSO INSTALLED IN VEHICLE TO F 758207 WITH CODE 809
59
WIRE CABLE , A 470873 F 547165
59
WIRE CABLE , Replaced By: A2023001330
59
WIRE CABLE , Replaced By: A2023001530
59
WIRE CABLE , Replaced By: A2083000030
59
WIRE CABLE , Replaced By: A2083000430
59
WIRE CABLE , Replaced By: A2083000230
59
WIRE CABLE ,F 547166F 711024
68
RUBBER BUFFER WIRE CABLE TO FIRE WALL, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
71
CLIP ELECTRIC CABLE TO FIXTURE
73
EXPANSION PLUG
77
BRACKET , A 470874 F 547166 A 519673 F 619720 EXCEPT CODE 808 ALSO INSTALLED IN VEHICLE FROM A 519674, F 619721 WITH CODE 807
77
BRACKET ,F 547165
77
BRACKET , Replaced By: A2103011540
80
SENDER UNIT
83
LEVER (REVERSING LEVER),F 547165
84
LEVER (REVERSING LEVER), F 619721 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO F 619720 WITH CODE 808
84
LEVER , Replaced By: A2103001128, +001A1689930320
87
ROLLER , NOT USED
88
LOCK PLATE , 656999
89
LOCK PLATE RELEASE LEVER TO SHAFT
92
SCREW PUMP TO BRACKET
95
SPRING , NOT USED
99
SPRING AT REVERSING LEVER,A 346276
99
SPRING REVERSING LEVER
100
CLAMPING PIECE AT REVERSING LEVER,A 346276
101
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
