Mercedes
CAR
C 220 CDI
204.002 DOKU NICHT KOMPLETT! NUR Fu00dcR KFE FZG
91 DRIVER'S SEAT
185 COVERINGS,FIRE EXTINGUISHER, FIRST AID BOX

Mercedes N910001004105 - Клипса

C 220 CDI 204.002 DOKU NICHT KOMPLETT! NUR Fu00dcR KFE FZG

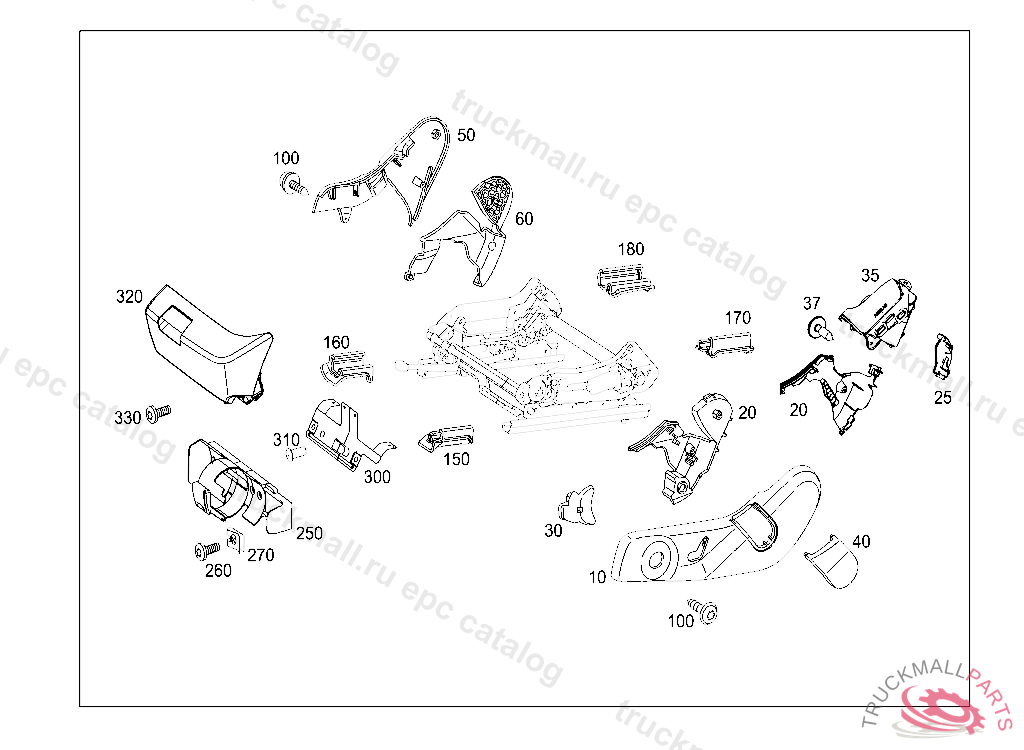

91 DRIVER'S SEAT - 185 COVERINGS,FIRE EXTINGUISHER, FIRST AID BOX

Поз.
Артикул
Описание
10
A2049180100
COVER OUTER LEFT SEAT
10
A2049183230
COVER OUTSIDE RIGHT SEAT
10
A2049182730
COVER OUTER LEFT SEAT
10
A2049182530
COVER OUTER LEFT SEAT
10
A2049182630
COVER OUTSIDE RIGHT SEAT
10
A2049180830
COVER OUTSIDE RIGHT SEAT
10
A2049181930
COVER OUTER LEFT SEAT
10
A2049180200
COVER OUTSIDE RIGHT SEAT
10
A2049180530
COVER OUTER LEFT SEAT
10
A2049180630
COVER OUTSIDE RIGHT SEAT
10
A2049182030
COVER OUTSIDE RIGHT SEAT
10
A2049182830
COVER OUTSIDE RIGHT SEAT
10
A2049180730
COVER OUTER LEFT SEAT
10
A2049183130
COVER OUTER LEFT SEAT
20
A2049180116
REINFORCEMENT OUTER LEFT SEAT
20
A2049181416
REINFORCEMENT OUTSIDE RIGHT SEAT
20
A2049180216
REINFORCEMENT OUTSIDE RIGHT SEAT
20
A2049181316
REINFORCEMENT OUTER LEFT SEAT
25
A2049190274
PANEL OUTSIDE RIGHT SEAT
25
A2049190174
PANEL OUTER LEFT SEAT
30
A2049180916
REINFORCEMENT OUTER LEFT SEAT
35
A2048603002
AIR BAG RIGHT
35
A2048602902
AIR BAG LEFT
37
A0059905412
HEXAL. PAN HEAD SCREW FASTENING, LEFT AIRBAG, A 37190220091030 F 12792420080302808 R 03194920080312808
40
A2049180430
COVER RIGHT SEAT
40
A2049183630
COVER, ADJUSTMENT RIGHT SEAT
40
A2049180330
COVER LEFT SEAT
40
A2049181830
COVER RIGHT SEAT, Replaced By: A2049183630
50
A2049181030
COVER INNER RIGHT SEAT
50
A2049180930
COVER INNER LEFT SEAT
60
A2049180316
REINFORCEMENT INNER LEFT SEAT
60
A2049180416
REINFORCEMENT INNER RIGHT SEAT
100
A0059905412
HEXAL. PAN HEAD SCREW FASTENING, LEFT AIRBAG, A 37190220091030 F 12792420080302808 R 03194920080312808
100
A1409900636
SCREW
150
A2049190220
COVER FRONT OUTER RIGHT, RIGHT SEAT, 9051QFT204A2420 BLACK
150
A2049190120
COVER FRONT OUTER LEFT, LEFT SEAT, 9051QFT204A2420 BLACK
160
A2049190620
COVER FRONT INNER RIGHT, RIGHT SEAT, 9051QFT204A2420 BLACK
160
A2049190520
COVER FRONT INNER LEFT, LEFT SEAT, 9051QFT204A2420 BLACK
170
A2049190320
COVER REAR OUTER LEFT, LEFT SEAT, 9051QFT204A2420 BLACK
170
A2049190420
COVER REAR OUTER RIGHT, RIGHT SEAT, 9051QFT204A2420 BLACK
180
A2049190820
COVER REAR INNER RIGHT, RIGHT SEAT, 9051QFT204A2420 BLACK
180
A2049190720
COVER REAR INNER LEFT, LEFT SEAT, 9051QFT204A2420 BLACK
250
A0008603314
BRACKET FIRE EXTINGUISHER
260
N000000000528
TAPPING SCREW. SHEET METAL SCREW BRACKET TO CAB
270
A0019942845
LOCK , FROM CHASSIS 107.022 009153 107.025 000696 107.026 002047 107.042 009248 107.045 000771 107.046 003309
300
A2129110200
ATTACHMENT ANGLE BRACKET AT RIGHT SEAT CUSHION FRAME
300
A2038680312
ANGLE FASTENER, FIRE EXTINGUISHER HOLDER, E 01872520030630804 A 55589720030630804 F 45737520031014804
300
A2038680412
ANGLE FASTENER, FIRE EXTINGUISHER HOLDER, F 45737520031014804
300
A2129110100
FIXTURE AT CUSHION FRAME
310
N910001004105
RIVET LOCKING LEVER TO BATTERY/APPARATUS SUPPORT
320
A2048100304
STOWAGE BOX RIGHT
320
A2048100204
STOWAGE BOX LEFT
330
N000000002242
HEXALOBULAR BOLT DRIER TO CONDENSER M5X10
