Mercedes A0229972248 - Кольцо уплотнительное щупа АКПП

E 200 BLUE EFFICIENCY 207.334

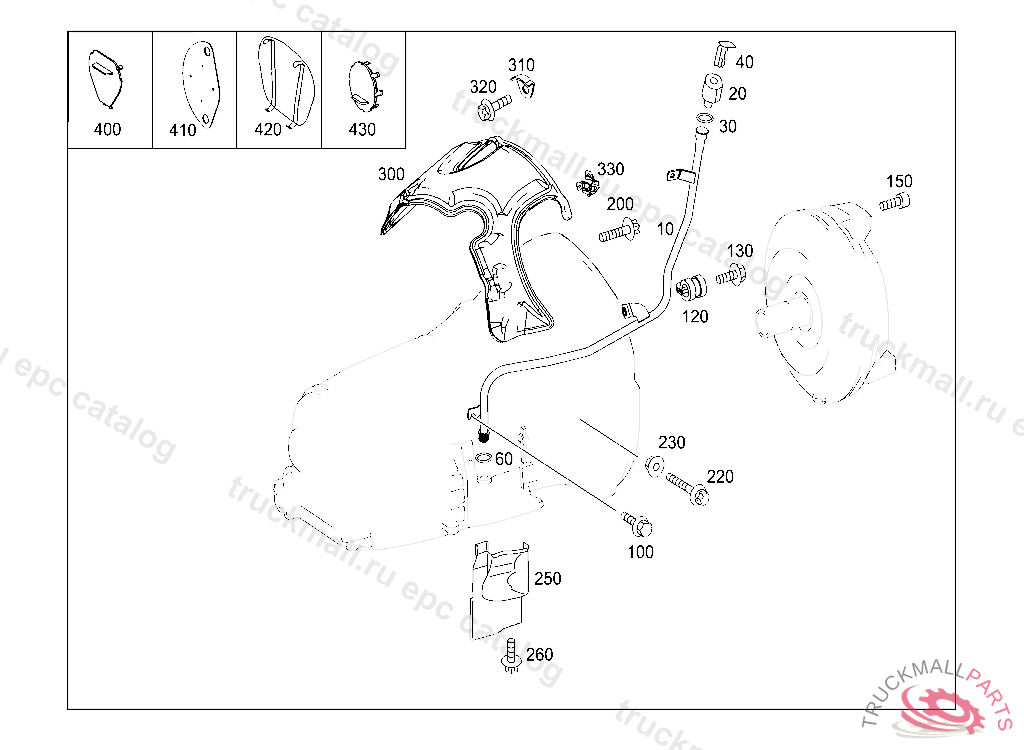

27 MERCEDES-BENZ AUTOMATIC TRANSMISSION - 125 ATTACHED PARTS FOR TRANSMISSION, OIL FILLER PIPE

Поз.
Артикул
Описание
30
A0229972248
SEAL RING COVER OIL FILLER PIPE 11.5X2.5
40
A1409910055
DOWEL PIN OIL FILLER PIPE
100
N910106006004
HEXAGON HEAD BOLT
130
N910106006004
HEXAGON HEAD BOLT
150
A0109904904
CAPSCREW W HEXAL. DRIVE DRIVE CONNECTION, ENGINE TO CONVERTER M10X34
150
A0109904604
CAPSCREW W HEXAL. DRIVE DRIVE CONNECTION, ENGINE TO CONVERTER M8X21,5
200
N910143010000
SCREW PLATE TO FRAME M 10X45
250
A2042710088
SCREENING PLATE AT TRANSMISSION CASE, A 38522920100226 L 03616920091130 V 00202920091130 F 45787320091213 L 10798620100225
250
A7252710600
SCREENING PLATE AT TRANSMISSION CASE
260
A0019844329
BOLT. SCREW CAN NEUTRAL POINT ON EQUIPMENT PLATE M 6X15/10
260
N000000002193
HEXALOBULAR BOLT BRACKET TO CONSOLE M6X16,V 224423
260
N910143006001
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
260
N000000001114
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
