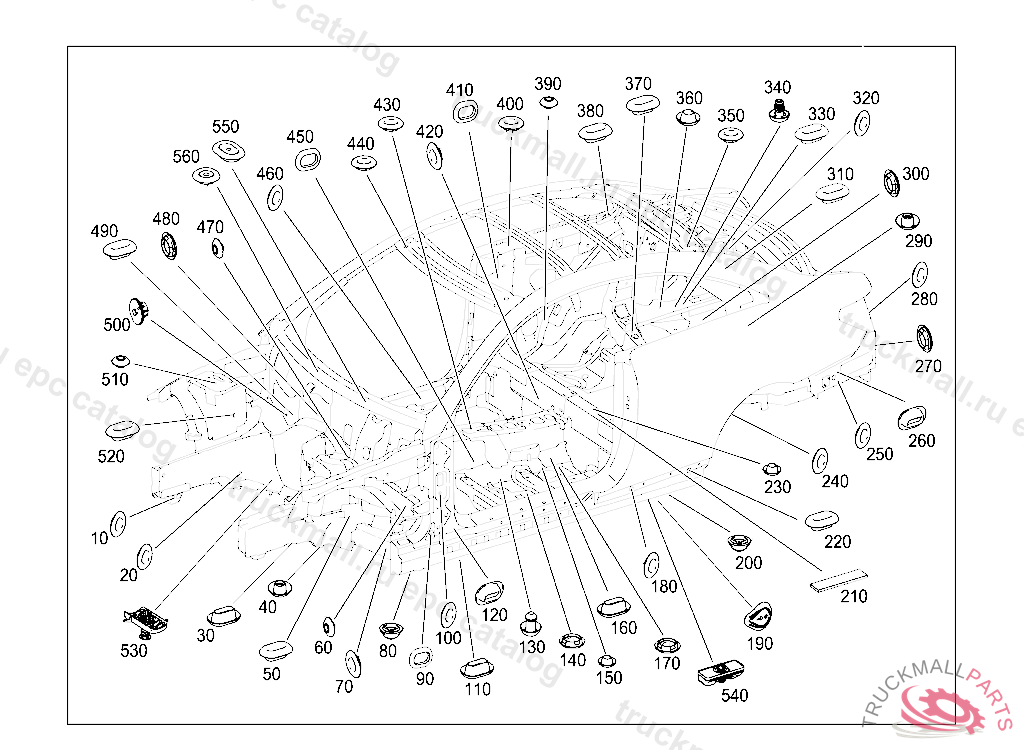

Поз.
Артикул
Описание
10
PLUG CROSS MEMBER IN THE REAR, RIGHT 25 MM
20
PLUG20 MM
20
STOP PLUG CROSS MEMBER 20 MM
30
ADHESIVE TAPE PIPING
40
STOP PLUG ROCKER PANEL LEFT REAR 20 MM
50
STOP PLUG LONGITUDINAL MEMBER, TOP, RIGHT 10X20 MM
50
ADHESIVE TAPE PIPING
60
PLUG TO BODY 10 MM, J 78221020091022
70
PLUG CROSS MEMBER IN THE REAR, RIGHT 25 MM
70
STOP PLUG E-RECESS CENTER 30 MM
80
GROMMET WATER DRAIN IN SPARE WHEEL WELL 26 MM
90
PLUG CROSS MEMBER IN THE REAR, RIGHT 25 MM
100
STOP PLUG CROSS MEMBER 20 MM
100
PLUG20 MM
110
STOPPER WASHER AT CROSS MEMBER, REAR AXLE 20X30 MM
120
STOP PLUG LONGITUDINAL MEMBER, TOP, RIGHT 10X20 MM
130
SEALING PLUGS TRANSMISSION TUNNEL, LEFT 8.6 MM
140
PLUG CROSS MEMBER IN THE REAR, RIGHT 25 MM
140
PLUG CROSS MEMBER IN THE REAR, LEFT 15 MM
140
PLUG SIDE MEMBER,INSIDE LEFT 15 MM
140
STOP PLUG BATTERY CASE 6.5 MM
150
PLUG TO BODY 10 MM, J 78221020091022
150
PLUG SIDE MEMBER,INSIDE LEFT 15 MM
150
PLUG CROSS MEMBER IN THE REAR, LEFT 15 MM
160
STOP BUFFER OUTSIDE LEFT
170
PLUG CROSS MEMBER IN THE REAR, RIGHT 25 MM
180
PLUG CROSS MEMBER IN THE REAR, LEFT 15 MM
180
PLUG SIDE MEMBER,INSIDE LEFT 15 MM
190
BUTTON GROMMET AT SIDE MEMBER 20 MM
200
GROMMET WATER DRAIN IN SPARE WHEEL WELL 26 MM
220
STOP PLUG FASTENING, RIGHT TRIM 20X25 MM, J 72081320090217
230
PLUG TO BODY 10 MM, J 78221020091022
240
STOP PLUG CROSS MEMBER 20 MM
240
PLUG20 MM
250
PLUG20 MM
250
STOP PLUG CROSS MEMBER 20 MM
260
STOP PLUG SIDE PANEL,RIGHT 15X25 MM
270
PLUG REAR BODY PANEL 37.7MM
270
PLUG CROSS MEMBER IN THE REAR, RIGHT 25 MM
270
PLUG REAR RIGHT 40 MM
270
STOP PLUG CROSS MEMBER 20 MM
270
PLUG20 MM
280
PLUG20 MM
280
STOP PLUG CROSS MEMBER 20 MM
280
STOP PLUG E-RECESS CENTER 30 MM
290
PLUG TO BODY 10 MM, J 78221020091022
300
PLUG REAR BODY PANEL 37.7MM
320
PLUG SIDE MEMBER,INSIDE LEFT 15 MM
320
PLUG CROSS MEMBER IN THE REAR, LEFT 15 MM
330
STOP PLUG SIDE PANEL,RIGHT 15X25 MM
340
STOP PLUG SIDE MEMBER,REAR M8
350
PLUG CROSS MEMBER IN THE REAR, RIGHT 25 MM
360
STOP PLUG SIDE MEMBER,FRONT 25 MM
360
STOP PLUG ROCKER PANEL LEFT REAR 20 MM
360
STOP PLUG CROSS MEMBER 20 MM
360
PLUG20 MM
360
STOP PLUG BATTERY CASE 6.5 MM
370
STOP PLUG LONGITUDINAL MEMBER, TOP, RIGHT 10X20 MM
380
STOPPER WASHER INSIDE PART RIGHT 15X25 MM
390
PLUG TO BODY 10 MM, J 78221020091022
400
PLUG CROSS MEMBER IN THE REAR, RIGHT 25 MM
410
PLUG TRANSMISSION TUNNEL,FRONT RIGHT
420
PLUG20 MM
420
STOP PLUG CROSS MEMBER 20 MM
430
PLUG CROSS MEMBER IN THE REAR, LEFT 15 MM
430
PLUG SIDE MEMBER,INSIDE LEFT 15 MM
440
PLUG CROSS MEMBER IN THE REAR, RIGHT 25 MM
450
PLUG TRANSMISSION TUNNEL,FRONT RIGHT
460
STOP PLUG CROSS MEMBER 20 MM
460
PLUG20 MM
470
STOP PLUG BATTERY CASE 6.5 MM
480
PLUG SIDE MEMBER,INSIDE LEFT 15 MM
480
PLUG CROSS MEMBER IN THE REAR, LEFT 15 MM
480
PLUG CROSS MEMBER IN THE REAR, RIGHT 25 MM
490
STOP PLUG LONGITUDINAL MEMBER, TOP, RIGHT 10X20 MM
490
STOPPER WASHER CLUTCH LINE IN LEGROOM 25X55MM
500
STOP PLUG TO PARTITION WALL, RIGHT
510
PLUG TO BODY 10 MM, J 78221020091022
520
STOP PLUG LONGITUDINAL MEMBER, TOP, RIGHT 10X20 MM
530
PLUG JACK TAKE-UP DEVICE ON FRAME-TYPE INTEGRAL SUPPORT, A 33643020091221 L 02994720090430 V 00123720090430 F 31976220090201 L 10000020090901
540
PLUG RIGHT VEHICLE JACK SUPPORT POINT
