Mercedes A1409900014 - Болт

CLK 200 KOMPRESSOR 208.344

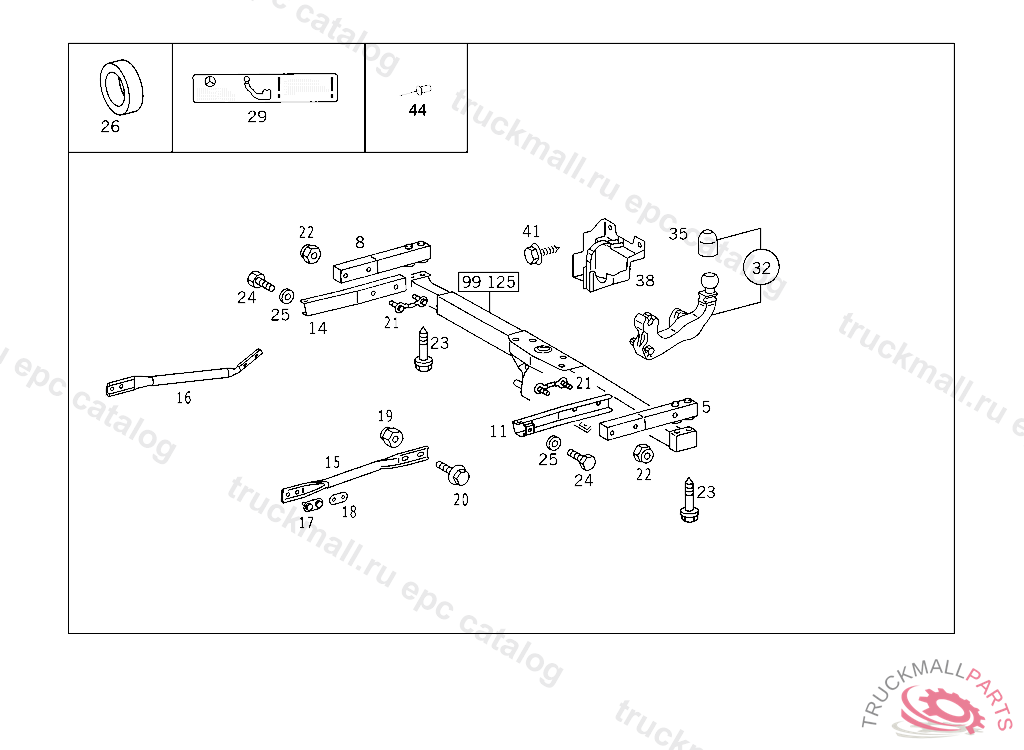

31 HITCHING MECHANISM - 015 TRAILER COUPLING

Поз.
Артикул
Описание
5
A2023100591
STIFFENING LEFT, A 032470 F 021239
8
A2023100391
STIFFENING RIGHT
11
A2023100357
PLATE LEFT, A 032470 F 021239
14
A2023100257
PLATE RIGHT
21
A2103100360
SHACKLE
22
N910113010000
NUT STRAP TO BRACKET
23
A1409900014
SCREW
24
N914125010308
SCREW , Replaced By: N910106010031
24
N910106010031
SCREW HYDROPNEUMATIC SPRING LEG TO REAR AXLE
25
N007349010007
WASHER STRUT TO CROSS MEMBER
26
A1403150080
GASKET CROSS MEMBER TO SIDE MEMBERS
29
A2105841917
GUIDE SIGN TRAILER COUPLING
32
A2103100656
BALL HEAD TRAILER COUPLING, A 364221 F 341903
35
A0003150629
CAP
38
A2028900111
TANK BALL STUD TO CROSS MEMBER, A 364221 F 341903
41
N000000001454
TAPPING SCREW , A 192209 ALSO INSTALLED ON A 159651 - A 192207 WITH CODE 805 FROM MODEL YEAR'95
44
A0019904558
NUT
