Mercedes A2028300083 - БАЧОК

CLK 200 KOMPRESSOR 208.344

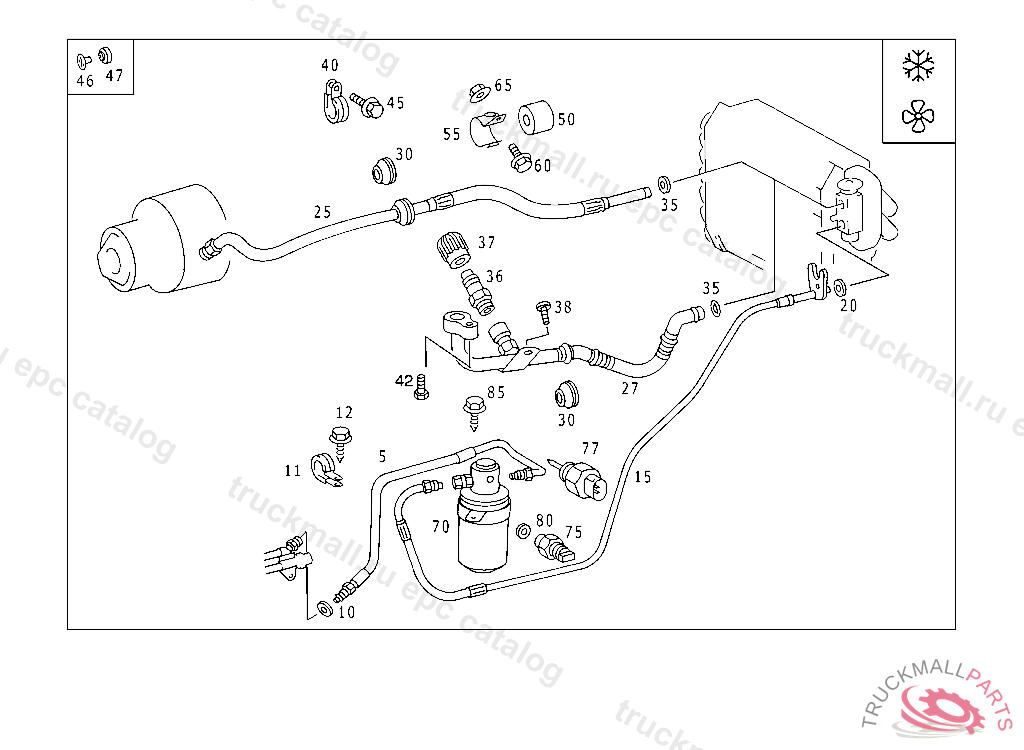

83 HEATING AND VENTILATION - 195 REFRIGERANT LINE ARRANGEMENT IL. 1

Поз.
Артикул
Описание
5
A2028304115
PIPE LINE FROM CONDENSER TO LIQUID TANK
10
A1409970645
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
15
A2028303315
PIPE LINE FLUID-RESERVOIR-TO-EXPANSION-VALVE REFRIGERANT LINE
15
A2028303415
PIPE LINE FLUID-RESERVOIR-TO-EXPANSION-VALVE REFRIGERANT LINE
20
A1409970645
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
25
A2028302615
PIPE LINE (SUCTION LINE),FROM EXPANSION VALVE TO FIRE WALL
30
A2029972181
GROMMET
35
A1409970945
O-RING HOSE TO EXPANSION VALVE 17X2
65
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
70
A2028300083
TANK
70
A2028300283
TANK
75
A1408300072
SENSOR AT LIQUID TANK
77
A2108300072
TEMPERATURE SENSOR AT LIQUID TANK, A 290167 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
80
A1409971145
SEAL RING FROM EXPANSION VALVE TO COMPRESSOR
85
A1269901036
SCREW , Replaced By: A2039900036
85
A2039900036
SCREW
