Mercedes A0001582285 - АВТОЗАПЧАСТЬ

300 E 2.6 USA 124.026 FROM 09/89

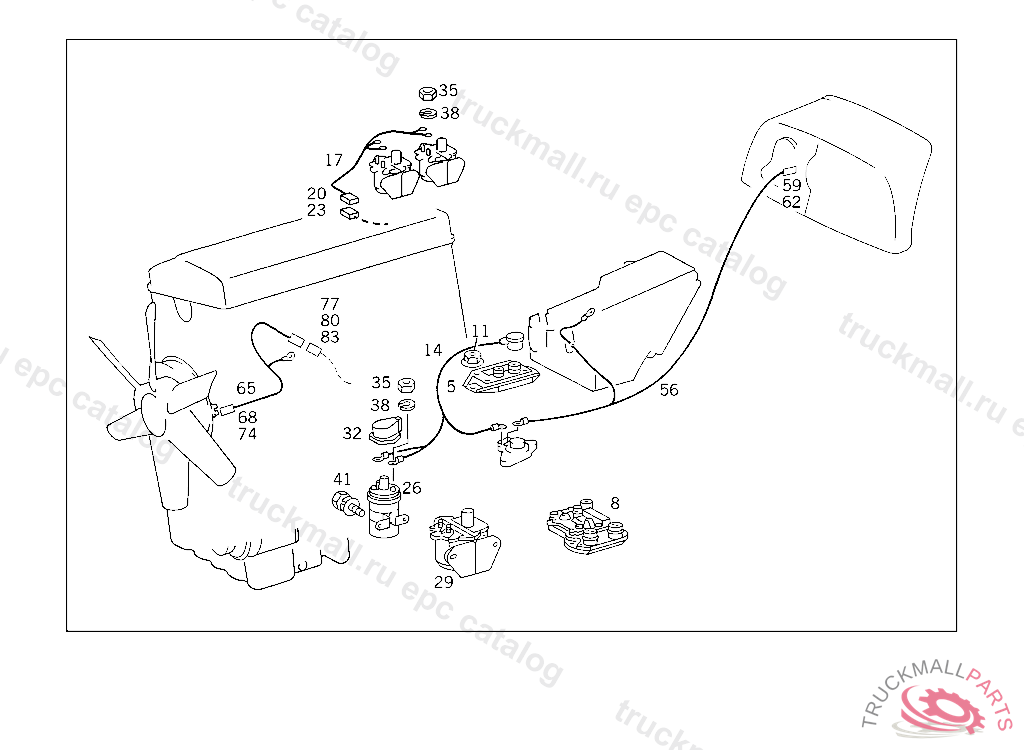

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 255 IGNITION SYSTEM AND CABLE HARNESS FOR TACHOMETER AND FAN

Поз.
Артикул
Описание
5
A0085456332
IGNITION CONTROL BOX
5
A0085456132
IGNITION CONTROL BOX
11
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
14
A1245404510
CABLE HARNESS TRANSISTORIZED IGNITION
29
A0001586103
IGNITION COIL , A 244936 F 146211 ONLY ON RETROFIT/CATALYST VEHICLES
29
A0001585403
IGNITION COIL , Replaced By: A0001586103
32
A0001582285
SUPPRESSOR HOUSING IGNITION COIL
35
N000934006007
NUT BALL PIVOT TO LEVER
35
N000934005008
NUT TACHOGRAPH TO BRACKET
38
N912004005100
LOCK WASHER T-FITTING TO BRACKET
38
N912004006102
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
41
N914001006010
COMBINATION BOLT VACUUM LINE TO FRONT STIFFENING, FROM CHASSIS:107.025 000007 107.026 001620
56
A1245400434
CABLE HARNESS TACHOMETER
59
A0125458328
PIN BUSHING HOUSING SOLENOID VALVE,F 051968
62
A0035450626
ROUND PIN BUSHING LIGHT SWITCH 2,5 MM
