Поз.
Артикул
Описание
8

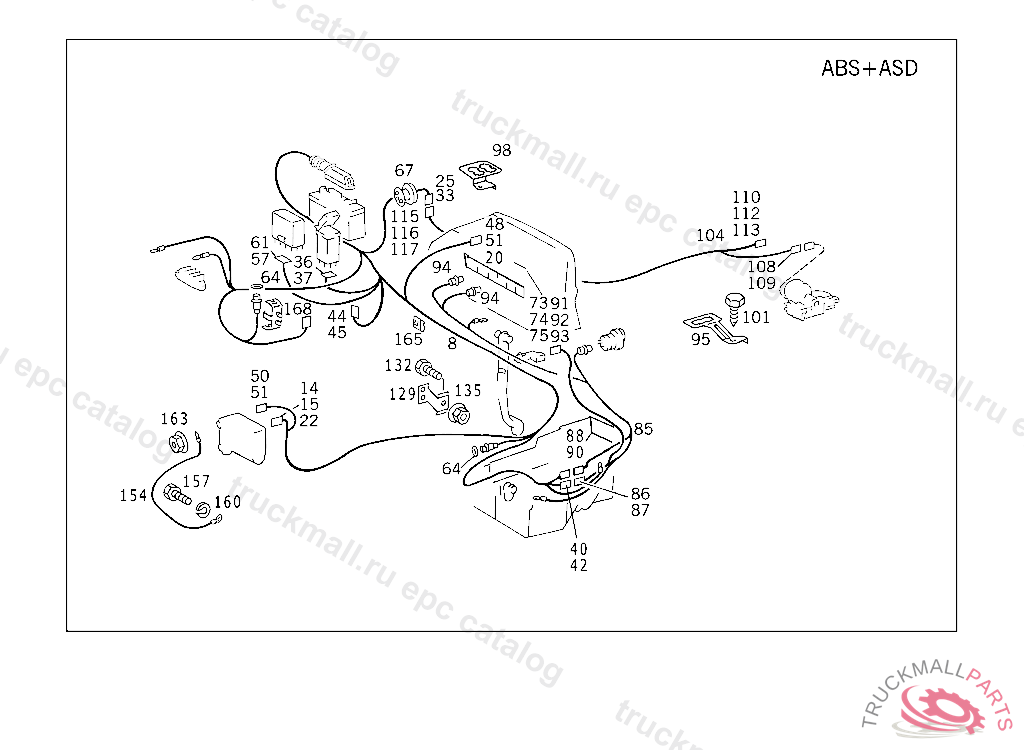

CABLE HARNESS ANTI-LOCK BRAKING SYSTEM (ABS) AND AUTOMATIC LOCKING DIFFERENTIAL (ASD),F 228494
8
CABLE HARNESS ANTI-LOCK BRAKING SYSTEM (ABS) AND AUTOMATIC LOCKING DIFFERENTIAL (ASD)
14
PIN BUSHING HOUSING 12-POLE
15
COVERTO 009 545 26 28
22
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
25
PIN BUSHING HOUSING BIPOLAR
25
PIN BUSHING HOUSING 4-POLE, BLOWER MOTOR
25
PLUG TRIPLE
33
ROUND PIN BUSHING4 MM2
36
PIN BUSHING HOUSING OVERLOAD PROTECTOR,F 017704
37
ROUND PIN BUSHING4.0 MM
40
PIN BUSHING HOUSING BIPOLAR
42
PLUG PIN , 107.042 L.H.D. A 005252 107.042 R.H.D. A 007245 123. L.H.D. A 154544,F 019237 123. R.H.D. A 118487,F 020926
44
PIN BUSHING HOUSING TEST PLUG ASD
45
ROUND PIN BUSHING LIGHT SWITCH
48
PIN BUSHING HOUSING SOLENOID VALVE,F 051968
50
PIN BUSHING HOUSING TELL-TALE LAMP ASD
51
ROUND PIN BUSHING LIGHT SWITCH 2,5 MM
57
PIN BUSHING HOUSING CONTROL UNIT ASD
61
ROUND PIN BUSHING2.5 MM2
64
SEAL RING COAXIAL PLUG
67
GROMMET ELECTRIC CABLE THRU FIRE WALL
73
PLUG ADAPTERTO 014 545 04 28
74
PLUG ADAPTER. PLUG HEATING WATER VALVE, 4-POLE
75
PIN BUSHINGTO 000 821 19 26
85
CABLE HARNESS TELL-TALE LAMP ABS-ASD
86
PLUG HOUSINGADS-ASD
87
PLUG PIN
88
PIN BUSHING HOUSING BIPOLAR
90
ROUND PIN BUSHING4 MM2
91
PLUG ADAPTERTO 014 545 04 28
92
PLUG ADAPTER. PLUG HEATING WATER VALVE, 4-POLE
93
PIN BUSHINGTO 000 821 19 26
94
SOCKET
98
BRACKET PLUG CONNECTION ASD
129
BRACKET ELECTRIC CABLE TO PARTITION PANEL
132
SCREW BRACKET ON LOAD SENSOR
135
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
154
NEG. CABLE
157
SCREW COVER PLATE TO COVER PLATE M 6 X 12
160
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
163
NUT HOOK TO BRACKET
165
CLIP
168
BRACKET ABS PLUG-CONNECTION
