Mercedes A0125450428 - КЛИПСА ПЛАСТИКОВАЯ

300 E 2.6 USA 124.026 FROM 09/89

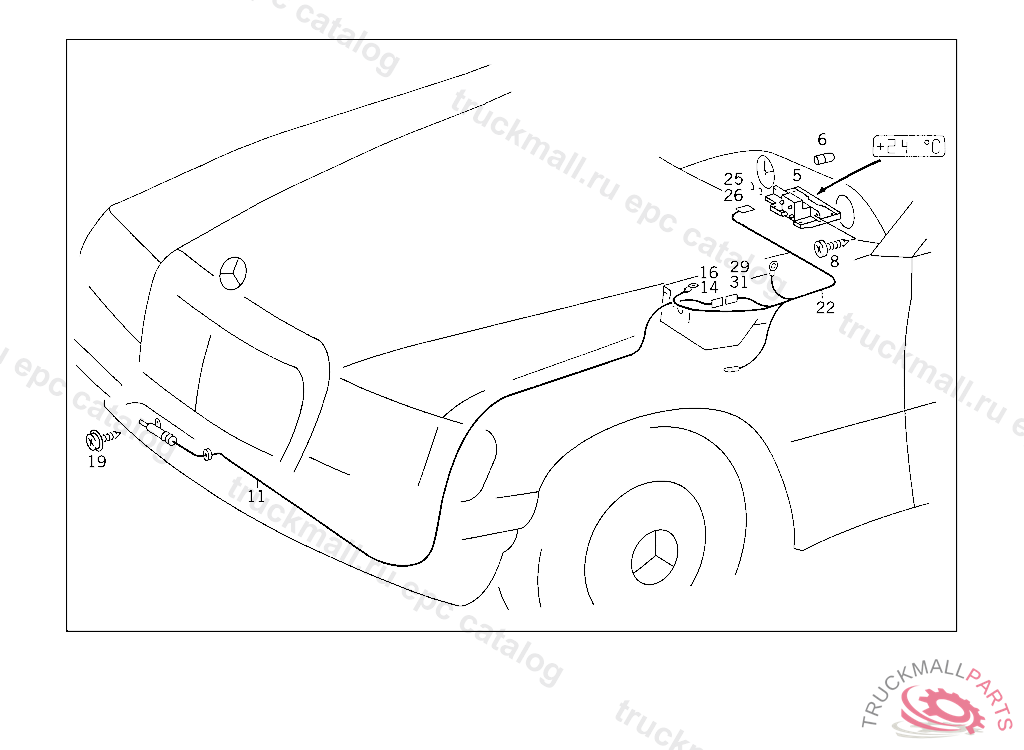

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 090 HEADLAMP CABLE HARNESS AND HORN

Поз.
Артикул
Описание
5
A0005427127
WARNING INDICATOR (OUTBOARD TEMPERATURE INDICATOR)
6
A0015448594
BULB OUTBOARD TEMPERATURE INDICATOR
8
N007981003207
SHEET METAL SCREW PANELLING TO LEFT FRONT PANEL PILLAR
11
A0015422618
SENDER UNIT OUTBOARD TEMPERATURE FEELER, TO BE ADAPTED DURING ASSEMBLY
14
A0125450428
PIN BUSHING HOUSING BIPOLAR
16
A0135457928
PLUG PIN , 107.042 L.H.D. A 005252 107.042 R.H.D. A 007245 123. L.H.D. A 154544,F 019237 123. R.H.D. A 118487,F 020926
19
N000000000459
SHEET METAL SCREW FUEL STRAINER SCREEN TO FUEL TANK
22
A1245409210
CABLE HARNESS OUTBOARD TEMPERATURE INDICATOR
25
A0135453228
PIN BUSHING HOUSING OUTBOARD TEMPERATURE INDICATOR
26
A0025459926
ROUND PIN BUSHING2.5 MM2
29
A0125450428
PIN BUSHING HOUSING BIPOLAR
31
A0015454426
ROUND PIN BUSHING4 MM2
