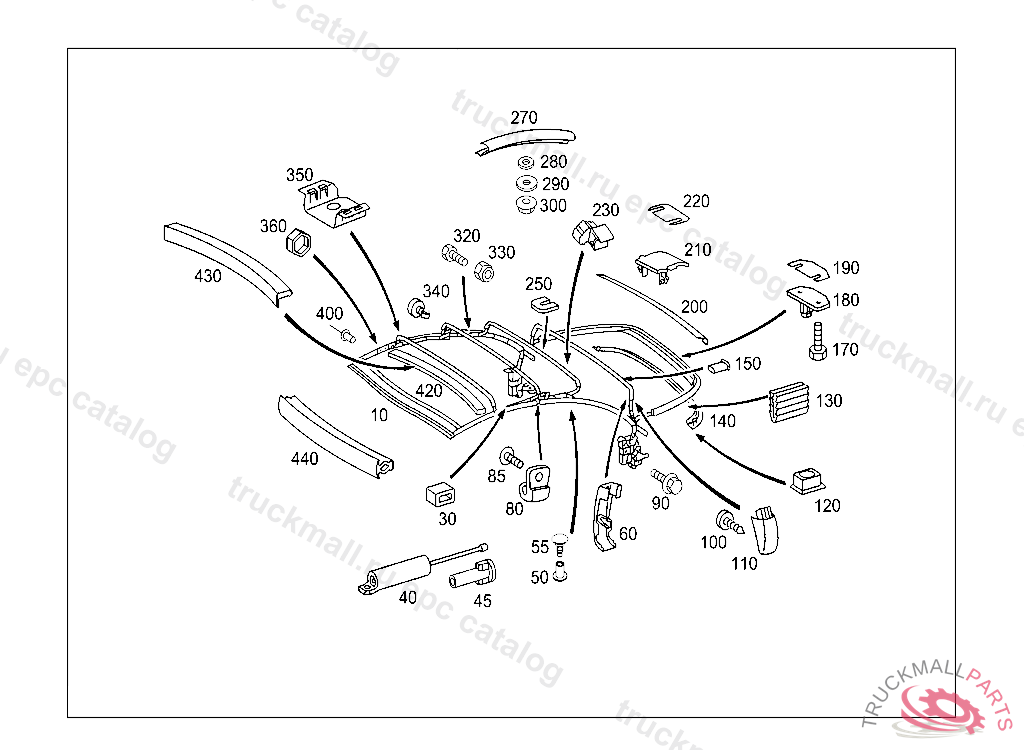

Поз.
Артикул
Описание
10
FOLDING TOP FRAME ASSY
10
FOLDING TOP FRAME ASSY , Replaced By: A2087700002
10
FOLDING TOP FRAME ASSY , Replaced By: A2087700002
30
STOP FRONT BOW
40
FOLDING TOP TIGHTENER
45
SLEEVE
50
FASTENER BUTTON UPPER PART
55
FASTENER BUTTON LOWER PART
60
COVERING REAR BOW
80
CLOTHES-HOOK , NO.7D43 INO.7D43 INO.7D43 INO.8G69 INO.8G69 INO.8G69 INO.7D43 I
85
SCREW
90
SCREW BRACKET TO CAB REAR PANEL M 8X20
90
SCREW BRACKET TO SIDE MEMBER M8X20
100
SCREW
100
SHEET METAL SCREW , Replaced By: N000000002062
110
COVERING ON BOW,REAR RIGHT
110
COVERING ON BOW,REAR LEFT
120
STOP CENTRAL,ROOF RAIL,LEFT
130
RAIL130 MM
130
RAIL40 MM
140
COVERING BOTTOM, NO.7D43 INO.7D43 INO.7D43 INO.8G69 INO.8G69 INO.8G69 INO.7D43 I
150
GUIDE REAR
170
SCREW PANELLING TO BUMPER
170
SCREW , Replaced By: A2209840429
180
PIN TO FABRIC RETAINING BOW
190
PAD BETWEEN FABRIC RETAINING BOW AND LOCKING PIN
200
HEADLINER , NO.9B51
210
GUIDE AT ENTRANCE GRIP RAIL
220
PAD REAR
230
COVERING CENTRAL LEFT
230
COVERING CENTRAL RIGHT
230
COVERING RIGHT FRONT BOW
230
COVERING LEFT FRONT BOW
250
PAD FRONT
270
SEAL FRONT LEFT
270
SEAL FRONT RIGHT
280
WASHER SEAL TO FRAME
290
WASHER SHIFTING CYLINDER
300
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
320
SCREW BRACKET TO CROSS CONNECTION STRUT
320
SCREW LICENSE PLATE TO BRACKET
330
NUT SPRING-LOADED PUSH ROD
330
NUT
340
STOP MAIN GUIDE TAKE-UP DEVICE
350
GUIDE FRONT
360
STOP
360
STOP , Replaced By: A2087741841
400
RIVET BRACKET TO SUBFRAME
420
PAD FRONT BOW
430
RAIL INTERMEDIATE LAYER,TOP
440
REINFORCEMENT
