Поз.
Артикул
Описание
5

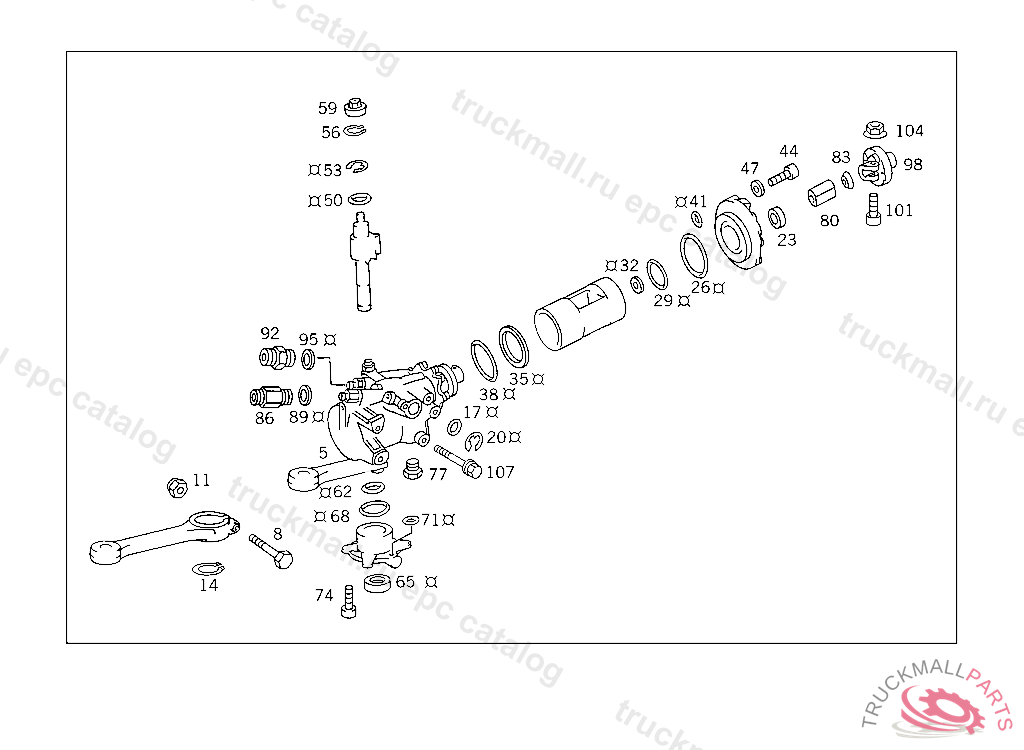

STEERING BOX ASSEMBLY WITH PITMAN ARM, UP TO END OF MODEL YEAR 1997
5
STEERING BOX ASSEMBLY WITH PITMAN ARM, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART A 519673 F 619720 EXCEPT CODE 808 ALSO INSTALLED IN VEHICLE FROM A 519674, F 619721 WITH CODE 807
8
SCREW SHIFT LEVER TO FRONT SHIFTING TUBE
11
NUT STRAP TO BRACKET
14
LOCK PITMAN ARM TO STEERING BOX ASSEMBLY
17
SEAL RING , 023 10/50,12/52 056284 023 20/60,22/62 057848 033 10/50,12/52 027436 033 20/60,22/62 028023 123 10/50,12/52 029863 123 20/60,12/52 041002 130 10/50,12/52 051238 130 20/60,22/62 052678
20
LOCK CONTROL VALVE
23
SEAL RING
26
SEAL RING STEERING NUT BEARING 75X3 MM
29
SEAL RING , 023 10/50,12/52 056284 023 20/60,22/62 057848 033 10/50,12/52 027436 033 20/60,22/62 028023 123 10/50,12/52 029863 123 20/60,12/52 041002 130 10/50,12/52 051238 130 20/60,22/62 052678
32
SEAL RING , 023 10/50,12/52 056284 023 20/60,22/62 057848 033 10/50,12/52 027436 033 20/60,22/62 028023 123 10/50,12/52 029863 123 20/60,12/52 041002 130 10/50,12/52 051238 130 20/60,22/62 052678
35
SEAL RING
38
SEAL RING
41
SEAL RING VALVE
44
SCREW. CAP BOLT COVER TO CASE M8X25
47
WASHER BRACKET TO CROSS MEMBER
50
SEAL RING
53
LOCK
56
LOCK RINGTO 000 553 37 01,000 553 39 01,
59
NUT
62
SEAL RING
65
SEAL RING , Replaced By: A0119976846
65
SEAL RING
68
SEAL RING
71
SEAL RING VALVE
74
SCREW
77
SCREW PLUG
80
BUSHING
83
LOCK STOP TO BEARING BRACKET
86
FITTING HIGH PRESSURE, F269811
89
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
92
FITTING LOW PRESSURE
95
SEAL RINGTO 000 553 03 05,000 553 18 05,
98
STEERING COUPLING
101
SCREW
107
SCREW STEERING TO FRAME M10 X 83 X 40
