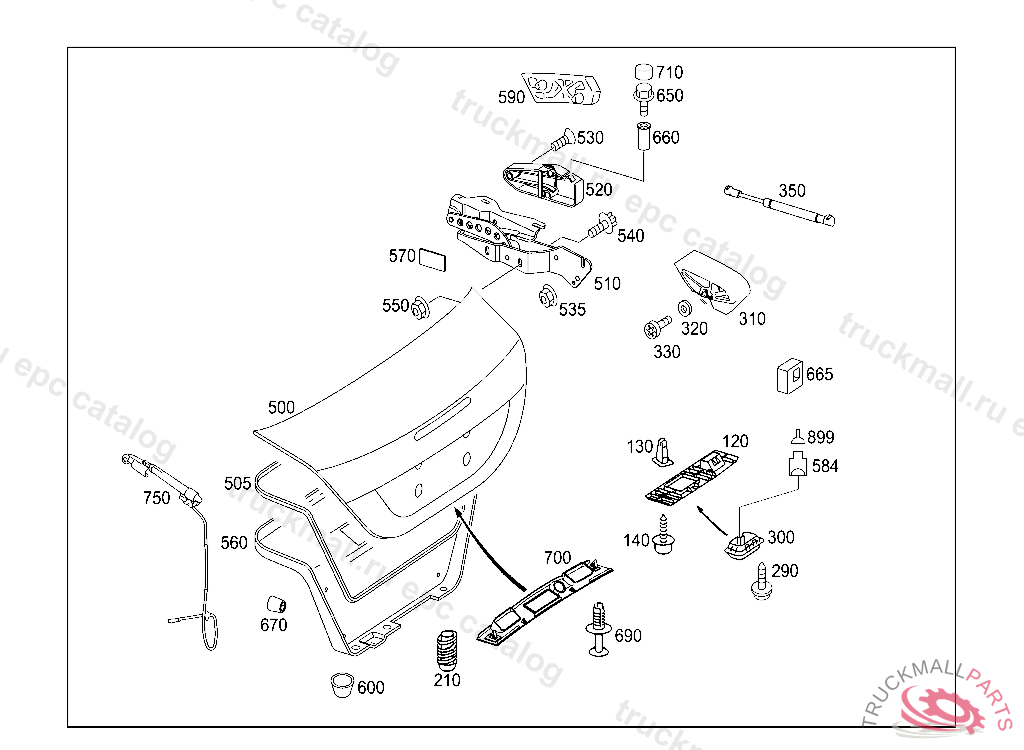

Поз.
Артикул
Описание
120
HANDLE REAR LID, 7C45QFT209A0054 DEEP GREY
120
HANDLE , 7C45QFT203A0102 DEEP GREY
130
BODY-BOUND NUT CONTROL UNIT FIXTURE
130
TREENAIL BRACKET TO FIRE WALL
140
SHEET METAL SCREW BRACKET TO SUPPORT
210
RUBBER BUFFER REAR LID STIFFENING
300
SWITCH REMOTE TRUNK LOCKING WITH KEYLESS GO
300
SWITCH REMOTE TRUNK LOCKING
310
BUFFER LEFT
310
BUFFER RIGHT
350
GAS-OPERATED SPRING ON REAR LID
350
GAS-OPERATED SPRING ON REAR LID, WARNING!PLEASE NOTE CURRENT SERVICE LITERATURE
350
GAS-OPERATED SPRING ON REAR LID, Replaced By: A2099800464
350
GAS PRESSURE STRUT ON REAR LID, WARNING!PLEASE NOTE CURRENT SERVICE LITERATURE, Replaced By: A2099800564
350
GAS-OPERATED SPRING ON REAR LID, WARNING!PLEASE NOTE CURRENT SERVICE LITERATURE, Replaced By: A2099800664
500
TRUNK LID
500
TRUNK LID
500
TRUNK LID
500
TRUNK LID
505
SEAL
510
HINGE LEVER REAR LID,RIGHT
510
HINGE LEVER REAR LID,RIGHT
510
HINGE LEVER TRUNK LID, LEFT
510
HINGE LEVER TRUNK LID, LEFT
520
SPRING HINGE TO TRUNK LID, RIGHT, T 08525520070305 F 22989520070401
520
SPRING HINGE TO TRUNK LID, LEFT, T 08525520070305 F 22989520070401
520
SPRING HINGE TO TRUNK LID, LEFT, T 08525520070305 F 22989520070401, Replaced By: A2097500336
520
SPRING HINGE TO TRUNK LID, RIGHT, T 08525520070305 F 22989520070401, Replaced By: A2097500436
530
SCREW ADJUSTER TO WINDOW PANE
535
NUT-AND-WASHER ASSEMBLY RUBBER MOUNTING TO FRAME M8
535
NUT FENDER ON SIDE PANEL M6
540
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
550
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
560
PANELING ON REAR LID
560
PANELING ON REAR LID
560
PANELING ON REAR LID
560
PANELING ON REAR LID
560
PANELING ON REAR LID
560
PANELING ON REAR LID
560
PANELING ON REAR LID
560
PANELING ON REAR LID
570
SEAL TRUNK LID TO HINGE
584
PLUGBUSKNOTEN (DACH)
590
STOP RIGHT
590
STOP LEFT
600
SEAL PAINT HOLE IN TRUNK LID
650
BOLT CONSOLE TO FRAME
650
BOLT LOCKING CLAMP TO REAR END CENTRAL PART M6X14
660
STOP , T 08525520070305 F 22989520070401
665
STOP REAR LID HINGE
670
STOP LEFT LOCK
690
RIVET BUSHING AND LEVER TO CAB
700
PANEL REAR LID
710
CAP
750
POTENTIOMETER REAR LID
899
FEMALE CONTACT SWITCH, POWER WINDOW, DRIVER 0.25-0.5 MM2 MQS,S20
