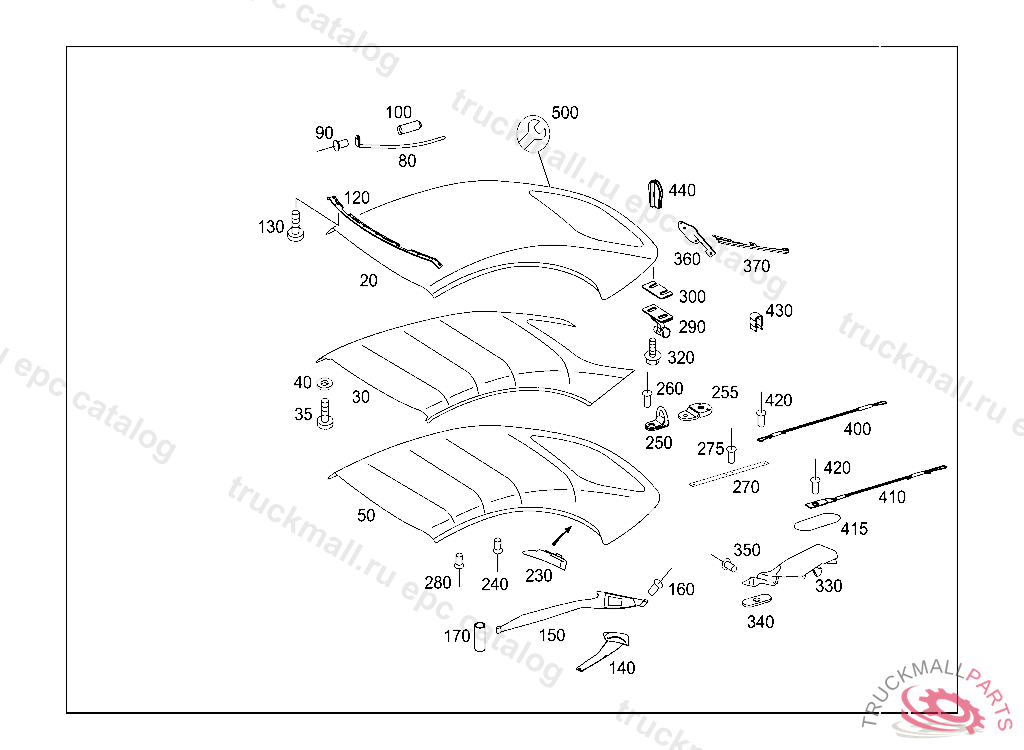

Поз.
Артикул
Описание
20
COVER
20
COVER
30
PAD BETWEEN OUTSIDE COVER & HEADLINER
35
HEXALOBULAR BOLT TURNING ANGLE SENSOR AT BRACKET M5X10
40
WASHER
50
HEADLINER INSIDE ROOF LINING
80
CLAMP LEFT
80
CLAMP RIGHT
90
RIVET
100
COVER FOR PIN
120
RAIL SOFT TOP CANVAS TO HEADER BOW, T 11099920120228 F 24287920070902
120
RAIL SOFT TOP CANVAS TO HEADER BOW, F 24288020070902
130
HEXALOBULAR BOLT GAS CARTRIDGE TO ROOF FRAME, LEFT M5X10
140
GUIDE RAIL BELT GUIDE RIGHT
140
GUIDE RAIL BELT GUIDE LEFT
150
FOLDING TOP TIGHTENER LEFT
150
FOLDING TOP TIGHTENER RIGHT
160
BLIND RIVET LEFT AND RIGHT 13X9.5
170
BRACKET AT ENTRANCE GRIP RAIL
230
BEARING TENSION CABLE TO LEFT COLUMN
230
BEARING TENSION CABLE TO RIGHT COLUMN
240
RIVET LEFT CLIP FASTENING
250
GUIDE PICK-UP STRIP, T 09654520080124 F 24948720080114
250
GUIDE PICK-UP STRIP, T 09654420080124 F 24948620080114
255
GUIDE PICK-UP STRIP, T 09654520080124 F 24948720080114
260
RIVET
270
PICK-UP STRIP
275
BLIND RIVET LEFT AND RIGHT 13X9.5
280
RIVET
290
PIN AT CLAMP
300
PAD AT CLAMP
320
HEXALOBULAR BOLT WINDOW REGULATOR AT BRACKET AND DOOR M6X16
320
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
330
GUIDE RIGHT
330
GUIDE LEFT
340
WASHER WINDOW STAYBAR TO WINDOW FRAME
350
BLIND RIVET LEFT AND RIGHT 13X9.5
360
BRACKET TOP RIGHT, REAR
360
BRACKET TOP LEFT, REAR
370
GUIDE RIGHT
370
GUIDE LEFT
400
PULL MAIN GUIDE
410
TENSIONING ROPE REAR BOW
410
PULL REAR BOW, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. T 10087620080701 F 26399920080731, Replaced By: A2097701766
415
WASHER WINDOW STAYBAR TO WINDOW FRAME
420
BLIND RIVET LEFT AND RIGHT 13X9.5
430
CLIP AT RETAINING RAIL
440
SOFT TOP LOCK CLIP
500
REPAIR SET WATER BAG, OBSERVE WORK INSTRUCTIONS IN WIS WIS-NET#SM77.31-P-0001A#
