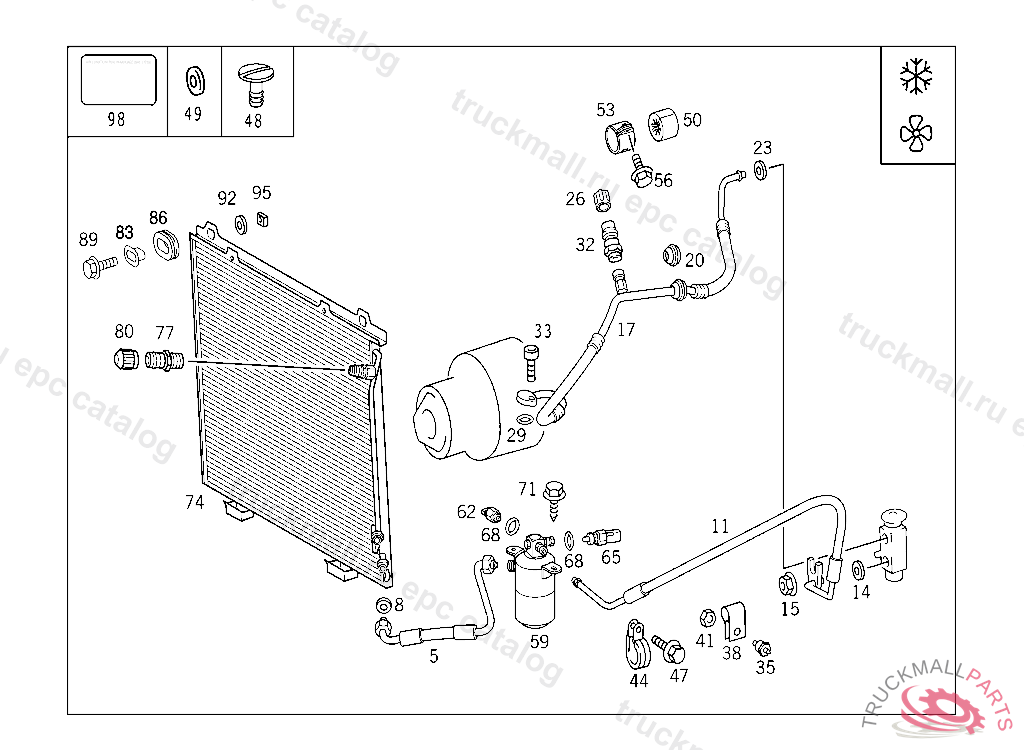

Поз.
Артикул
Описание
5
PIPE LINE FROM CONDENSER TO LIQUID TANK
5
PIPE LINE , Replaced By: A2108304615
8
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
11
PIPE LINE FLUID-RESERVOIR-TO-EXPANSION-VALVE REFRIGERANT LINE
11
PIPE LINE FLUID-RESERVOIR-TO-EXPANSION-VALVE REFRIGERANT LINE
14
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
15
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
17
PIPE LINE FROM EXPANSION VALVE TO COMPRESSOR PIPE LINE
17
PIPE LINE , Replaced By: A2108305115
17
PIPE LINE FROM EXPANSION VALVE TO COMPRESSOR PIPE LINE
20
GROMMET
23
O-RING HOSE TO EXPANSION VALVE 17X2
26
CAP , NOT USED
29
SEAL RING
32
VALVE
33
HEXALOBULAR BOLT LINE MOUNTING M6 X 25
35
BUFFER AT LEFT SIDE MEMBER, RECOMMENDED FOR TAKING ON STOCK
38
CLAMP LINE MOUNTING
38
CLAMP , Replaced By: N916016015202
41
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
44
CLAMP AT BRACKET ON SHOCK ABSORBER CONSOLE
47
SCREW , 183 003776 190 004444
48
PUSH BUTTON. FASTENER BUTTON
49
GROMMET AT SOLENOID VALVE,A 258245
50
CLAMPING PIECE
53
CLAMP
56
SCREW , 183 003776 190 004444
59
TANK
59
TANK , A 160165 J 023680, Replaced By: A2108300483, +001A2108304615
62
SENSOR AT LIQUID TANK
65
TEMPERATURE SENSOR AT LIQUID TANK, A 290167 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
68
SEAL RING FROM EXPANSION VALVE TO COMPRESSOR
71
SCREW
71
SCREW , Replaced By: A2039900036
74
CONDENSER , Replaced By: A2108300570
74
CONDENSER
77
VALVE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0018306384
80
CAP
83
BUSHING CONDENSER TO RADIATOR
86
GROMMET CONDENSER TO RADIATOR
89
SCREW CAB FLOOR COVERING M 6X25
92
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
92
WASHER COMPRESSED AIR LINE TO BRACKET
95
NUT CONDENSER TO RADIATOR
98
GUIDE SIGN REFRIGERANT R 134 A
