Главная
›
Mercedes
›
CAR
›
E 430
›
210.070 TO MODELLJAHR CODE 809 / MB GUARD
›
30 CONTROL
›
015 CONTROL IL. 2
Mercedes N304017006016 - Винт M 6 X 16 8.8
E 430 210.070 TO MODELLJAHR CODE 809 / MB GUARD
30 CONTROL - 015 CONTROL IL. 2

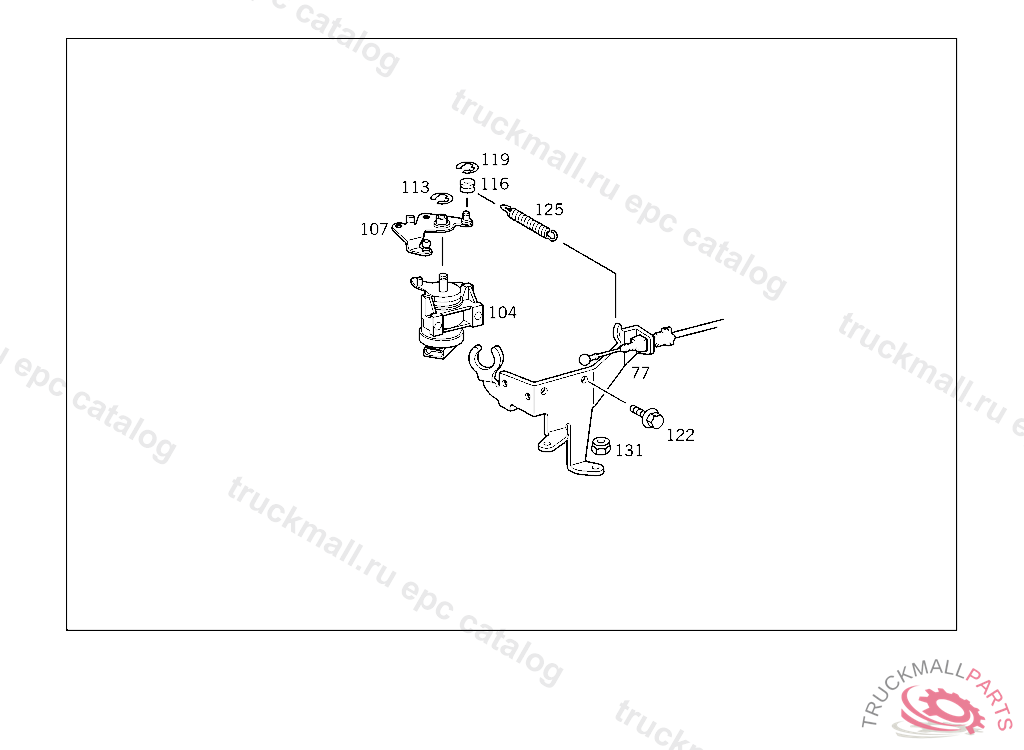

Поз.
Артикул
Описание
77
A2103011340
BRACKET , A 698508 X 012426 EXEPT FOR VEHICULES WITH CODE 808
104
A0125423317
SENDER UNIT
107
A2103000728
LEVER (REVERSING LEVER)
113
N006799007007
LOCK PLATE RELEASE LEVER TO SHAFT
116
A2103010011
ROLLER , NOT USED
119
N006799005009
LOCK PLATE , 656999
122
N304017006016
SCREW PUMP TO BRACKET
125
A2109930310
SPRING , NOT USED
131
N910112006001
NUT , Replaced By: N913023006001
131
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
999
A2103010820
LEVER ACCELERATOR PEDAL
999
A1243001625
LEVER ,B 838715,J 003393 TO BE ADAPTED DURING ASSEMBLY
999
A1243000141
STOP ACCELERATOR PEDAL,A 907056
999
A0115428617
SENDER UNIT (PEDAL VALUE SENSOR)
999
A0069881578
CLIP ELECTRIC CABLE TO FIXTURE
