Mercedes N304017006016 - Винт M 6 X 16 8.8

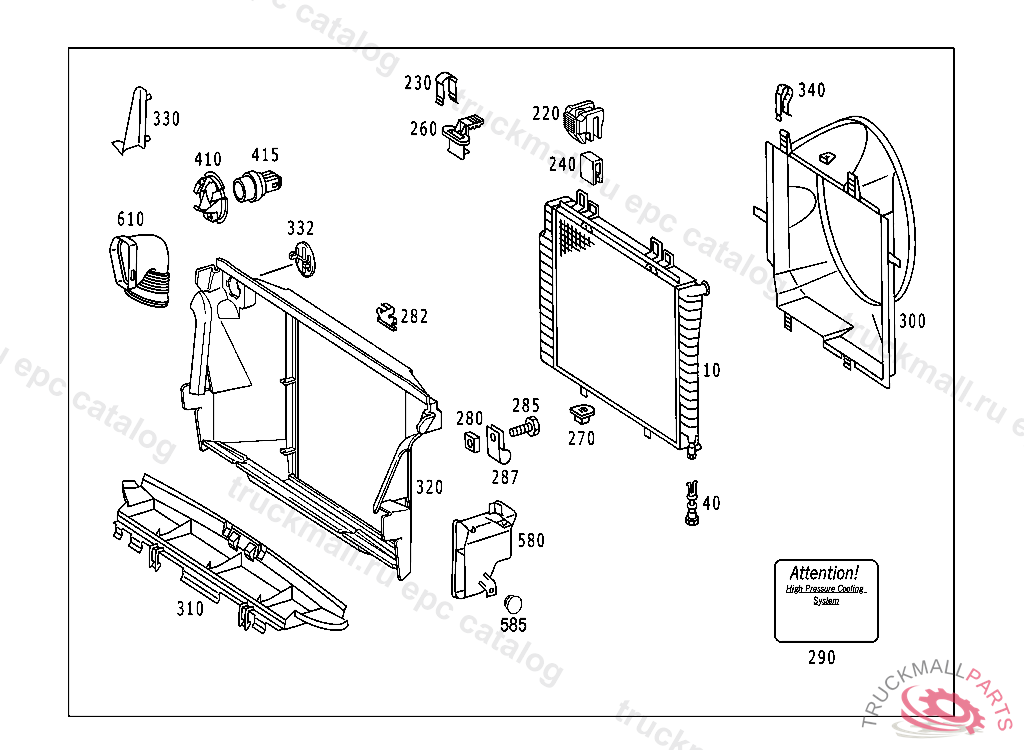

E 55 AMG 210.074 FROM MODELLJAHR CODE 800

30 CONTROL - 015 CONTROL IL. 2

Поз.
Артикул
Описание
10
A2105004703
RADIATOR
40
A0005000185
SCREW WATER DRAIN
230
A2025040246
CLAMP RADIATOR TO CENTRAL STIFFENING
240
A2105040412
RUBBER MOUNT RADIATOR TO CENTRAL STIFFENING
260
A2025050073
LOCK , Replaced By: A2105040146, +002A2105040412
270
A2105040012
RUBBER MOUNTING RADIATOR TO SUPPORT
280
A1269901152
NUT , F 184896
282
A2105041140
BRACKET ENGINE HOOD RELEASE CABLE TO AIR BAFFLE
285
N304017006016
SCREW PUMP TO BRACKET
287
N000000001045
CLAMP CABLE HARNESS MOUNTING
290
A2105840721
GUIDE SIGN EXPANSION TANK AND RADIATOR,RESP., IN ENGLISH "140", EXPORT,ON SPECIAL REQUEST
300
A2105051555
FAN SHROUD
320
A2105000916
AIR BAFFLE
332
A2105050203
COVER
340
A1235040246
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
580
A2105282104
SCOOP
585
A0029978186
PLUG
