Mercedes A0009870232 - ШЛАНГ ТОРМОЗНОЙ

E 430 4MATIC 210.083 FROM MODEL YEAR CODE 800

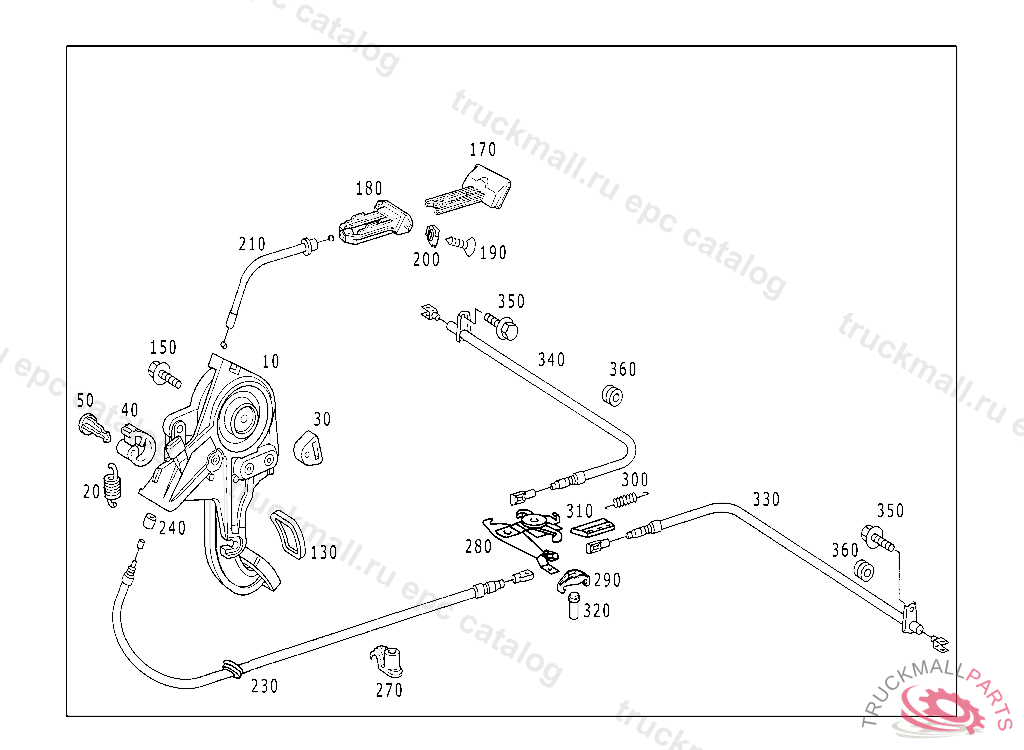

42 BRAKES - 145 FOOT OPERATED PARKING BRAKE

Поз.
Артикул
Описание
10
A2204201284
PARKING BRAKE , FROM MODEL YEAR'96
10
A2084200084
PARKING BRAKE , Replaced By: A2204201284
20
A2029932010
SPRING , FROM MODEL YEAR'96
30
A2024270127
STOP , A 290167 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
40
A2024270228
DETENT , FROM MODEL YEAR'96
50
A2024270774
PIN , FROM MODEL YEAR'96
130
A1244270382
PAD PEDAL
150
N000000004775
HEXAGON HEAD BOLT FASTENING, FOOT-OPERATED PARKING BRAKE M8X22
170
A2104270020
HANDLE
180
A2104270012
GUIDE
190
N000000000530
TAPPING SCREW
200
A1409940445
LOCK
210
A2104201385
BRAKE CABLE
230
A2104201885
BRAKE CABLE FRONT
240
A0009870232
HOSE FRONT BRAKE CABLE TO PARKING BRAKE 12 MM, ORDER BY THE METER
270
A0009955720
CLAMP FRONT BRAKE CABLE TO TUNNEL
280
A2024200338
ADJUSTER
290
A2029880578
CLIP
300
A1409930210
SPRING
310
A2024270212
GUIDE
320
A2024270474
PIN
330
A2104201485
BRAKE CABLE REAR LEFT
340
A2104201585
BRAKE CABLE REAR RIGHT
350
N914125008511
SCREW BRAKE CABLE TO REAR AXLE
360
A1159970681
GROMMET BRAKE CABLE TO REAR AXLE
