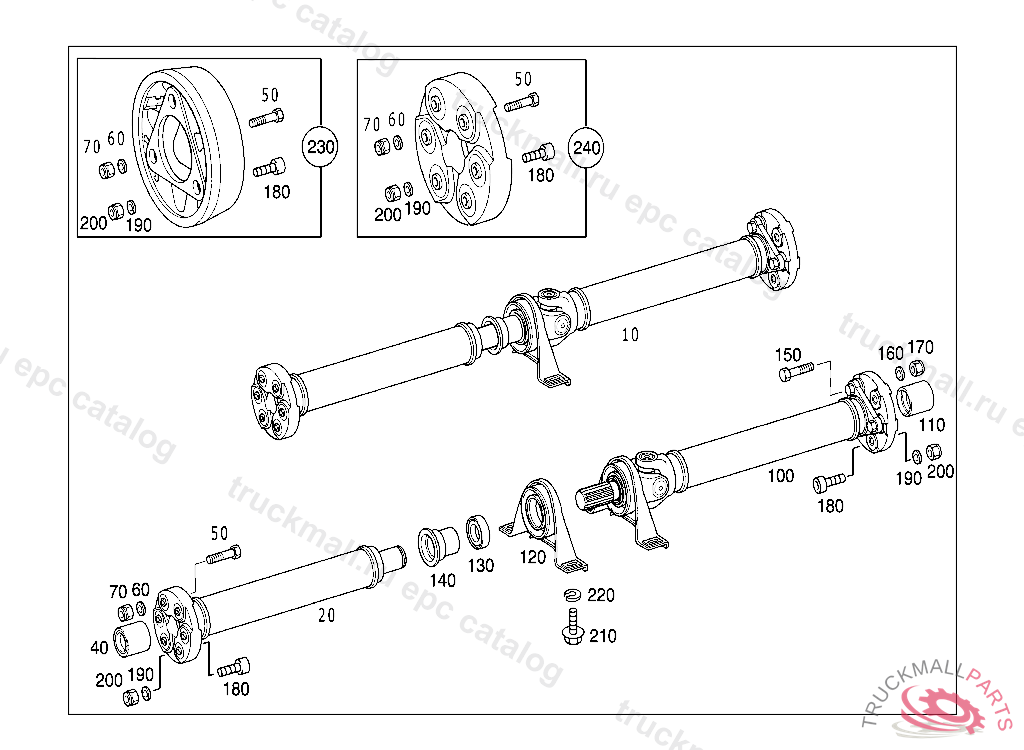

Поз.
Артикул
Описание
10
PROPELLER SHAFT
20
PROPELLER SHAFT FRONT, NO LONGER AVAILABLE, ORDER RANGE OF DELIVERY
40
CENTERING BUSHING FRONT
50
SCREW , Replaced By: A1249903701
60
WASHER FLEXIBLE DISC TO PROPELLER SHAFT OF FOUR-SPEED TRANSMISSION
70
NUT , Replaced By: A1249901451
100
PROPELLER SHAFT REAR, NO LONGER AVAILABLE, ORDER RANGE OF DELIVERY
110
CENTERING BUSHING FRONT
120
RUBBER BOOT BEARING
130
BALL BEARING
140
BOOT , A 348437 F 267960
150
CAPSCREW W HEXAL. DRIVE FLEXIBLE DISC TO PROPELLER SHAFT M12 X1.5 X 60, Replaced By: A0119901004
150
CAPSCREW W HEXAL. DRIVE FLEXIBLE DISC TO PROPELLER SHAFT M12X60
160
WASHER
170
NUT , Replaced By: A1409900551
180
HEXAGON HEAD BOLT. SCREW CLAMP TO DRAG LINK
180
BOLT PROPELLER SHAFT TO TRANSMISSION
190
WASHER PROPELLER SHAFT TO TRANSMISSION
190
WASHER PROPELLER SHAFT TO REAR AXLE
200
NUT PROPELLER SHAFT TO REAR AXLE
200
NUT PROPELLER SHAFT TO TRANSMISSION
210
SCREW BRACKET MOUNTING M6 X 20
220
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
240
FLEXIBLE JOINT DISC (PARTS SET), REAR
240
FLEXIBLE JOINT DISC PARTS KIT,REAR
