Поз.
Артикул
Описание

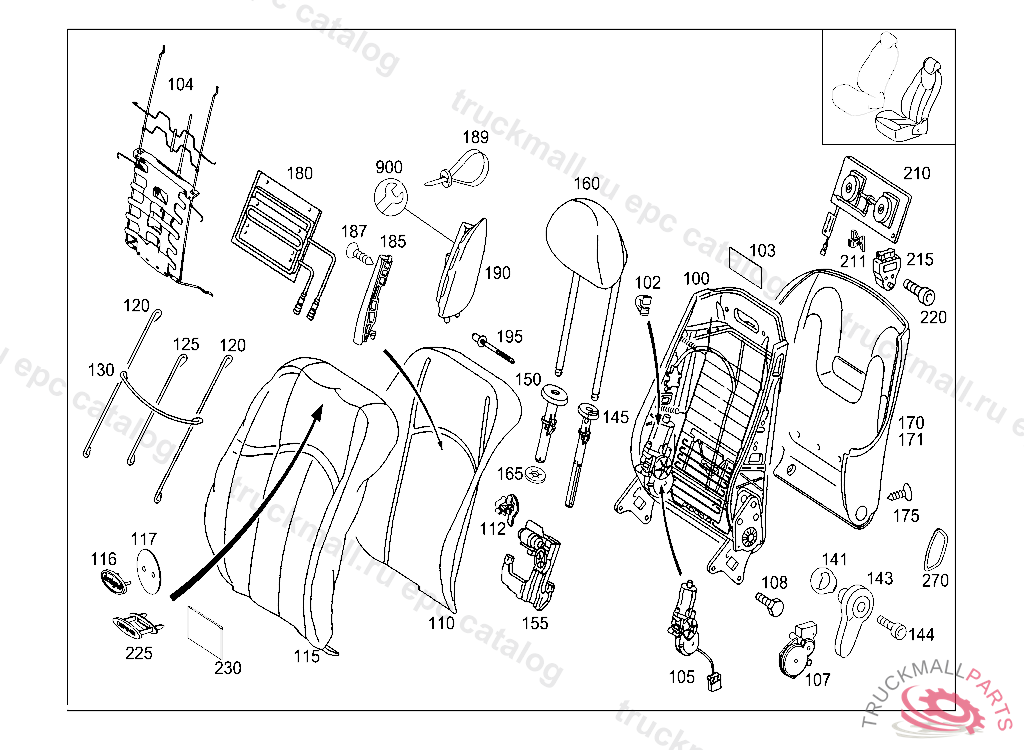

100
BACKREST FRAME , A 55589720030630804 F 45737520031014804 FELT A 126 782 01 97, ALSO ORDER 4 TIMES, NOTE TIPS DOCUMENT
100
BACKREST FRAME LEFT, PARTIALLY ELECTRIC, FELT A 126 782 01 97, ALSO ORDER 4 TIMES, NOTE TIPS DOCUMENT
100
BACKREST FRAME , A 55589720030630804 F 45737520031014804 FELT A 126 782 01 97, ALSO ORDER 4 TIMES, NOTE TIPS DOCUMENT
100
BACKREST FRAME LEFT, PARTIALLY ELECTRIC FOR MULTICONTOUR SEAT, FELT A 126 782 01 97, ALSO ORDER 4 TIMES, NOTE TIPS DOCUMENT
100
BACKREST FRAME ASSEMBLY LEFT, PARTIALLY ELECTRIC FOR MULTICONTOUR SEAT, A 41843720030930804 L 00483720060930 X 12327420040130804, Replaced By: A0009103934, +001A1267820197
100
BACKREST FRAME ASSEMBLY LEFT, WITH MEMORY FOR MULTICONTOUR SEAT, A 41843720030930804 L 00777720060531 X 12327420040130804, Replaced By: A0009104134, +001A1267820197
102
HOOK TO BACKREST FRAME
103
FELT STRIP TO BACKREST FRAME
104
STAY LUMBAR SUPPORT ADJUSTMENT
105
ELECTRIC MOTOR BACKREST ADJUSTER, E 01872520030630804 A 55589720030630804 F 45737520031014804 R 13114520031203804
105
ELECTRIC MOTOR BACKREST ADJUSTER
107
TRANSMISSION LUMBAR SUPPORT ADJUSTMENT, E 01872520030630804 A 55589720030630804 F 45737520031014804 R 13114520031203804
108
SCREW BACKREST FRAME TO SEAT FRAMEWORK
110
REST
110
REST FOR BACKREST LEFT
110
REST FOR BACKREST LEFT
110
REST FOR BACKREST LEFT
110
REST FOR BACKREST LEFT
110
REST FOR BACKREST LEFT
110
REST FOR BACKREST LEFT
112
CLIP REST
115
COVER , 9D15QFT211A2153 ANTHRACITE
115
COVER
115
COVER
115
COVER
115
COVER
115
BACKREST UPHOLSTERY
115
COVER
115
COVER
115
COVER
115
COVER
115
COVER
115
COVER
115
COVER
115
COVER
115
COVER LEATHER
115
BACKREST UPHOLSTERY LEATHER, 9E43 821A QFT211A2311 BLACK
115
COVER
115
BACKREST UPHOLSTERY
115
COVER
115
COVER
115
COVER
115
COVER LEATHER
115
COVER
115
COVER
115
COVER
115
BACKREST UPHOLSTERY
115
COVER
115
COVER
115
COVER
115
COVER "ELEGANCE" FABRIC
115
COVER
115
COVER
115
COVER
115
COVER
115
COVER
115
COVER
115
COVER
115
COVER
115
COVER
115
COVER LEATHER
115
COVER
115
COVER
115
COVER
115
COVER "ELEGANCE" FABRIC
115
COVER
115
COVER
115
COVER FRONT SEAT BACKREST
115
COVER
115
BACKREST UPHOLSTERY , B 13679920070222 L 00917520070228 X 23999920070131 9D88020021022141A QFT211A2310 BLACK
115
COVER
115
COVER
115
COVER
115
COVER FRONT SEAT BACKREST
115
COVER
115
COVER
115
COVER
115
COVER
115
COVER
115
COVER "ELEGANCE" FABRIC
115
BACKREST UPHOLSTERY
115
BACKREST UPHOLSTERY , B 13679820070222 L 00917420070228 X 23999820070131 9D88020021022141A QFT211A2310 BLACK
120
BRACKET SEAT COVER MOUNTING,LONGITUDINAL
125
CLAMP LEFT LONGITUDINAL STAPLE 330MM
130
CLAMP LEFT LONGITUDINAL STAPLE 330MM
130
BRACKET SEAT COVER MOUNTING,TRANSVERSE
141
COVER LEVER
143
LEVER LORDOTIC ADJUSTMENT, LEFT SEAT
144
SCREW W COLLAR A DRIVEM5X35
145
GUIDE FOR HEADREST HEAD RESTRAINT
145
GUIDE HEAD RESTRAINT, Replaced By: A2049700141
150
GUIDE FOR HEADREST HEAD RESTRAINT
150
GUIDE HEAD RESTRAINT, E 01872520030630804 A 55589720030630804 F 45737520031014804 R 13114520031203804 E 02999920061231
150
GUIDE FOR HEADREST HEAD RESTRAINT
155
ADJUSTER HEAD RESTRAINT, E 01872520030630804 A 55589720030630804 F 45737520031014804 R 13114520031203804
160
HEAD RESTRAINT LEFT
160
HEAD RESTRAINT RIGHT
160
HEAD RESTRAINT LEFT, 9E43 821A QFT211A2311 BLACK
160
HEAD RESTRAINT LEFT
160
HEAD RESTRAINT LEFT
160
HEAD RESTRAINT RIGHT
160
HEAD RESTRAINT LEFT
160
HEAD RESTRAINT RIGHT, 9D15QFT211A2153 ANTHRACITE
160
HEAD RESTRAINT LEFT
160
HEAD RESTRAINT LEFT
160
HEAD RESTRAINT LEFT
160
HEAD RESTRAINT LEFT
160
HEAD RESTRAINT LEFT
160
HEAD RESTRAINT RIGHT, 9D16060061062131A QFT211A2063 ANTHRACITE
160
HEAD RESTRAINT RIGHT
160
HEAD RESTRAINT LEFT, 9D88020021022141A QFT211A2310 BLACK
160
HEAD RESTRAINT RIGHT
160
HEAD RESTRAINT RIGHT
160
HEAD RESTRAINT RIGHT
160
HEAD RESTRAINT LEFT, 9C05 841A QFT211A2154 ANTHRACITE
160
HEAD RESTRAINT RIGHT
160
HEAD RESTRAINT RIGHT
165
LOCK TAIL LAMP
170
PANELING BACKREST, 9D88 001A QFT219A2040 BLACK
170
PANELING BACKREST
170
PANELING BACKREST
170
PANELING BACKREST, A 41843720030930804 L 00777720060531 X 12327420040130804 TO BE ADAPTED DURING ASSEMBLY GLUED VERSION
170
PANELING BACKREST
170
PANELING BACKREST
170
PANELING BACKREST
170
PANELING BACKREST, Replaced By: A2119106739
170
PANELING BACKREST
170
PANELING BACKREST, 9D88 001A QFT219A2040 BLACK
170
PANELING BACKREST
170
PANELING BACKREST
171
PANELING BACKREST
171
PANELING BACKREST
171
PANELING BACKREST
171
PANELING BACKREST
171
PANELING BACKREST, A 87432220050630806 A 83253320050630806 X 19596520050930806 B 07335420061014 L 00567620061031
171
PANELING BACKREST
171
PANELING BACKREST
171
PANELING BACKREST
171
PANELING BACKREST
171
PANELING BACKREST
171
PANELING BACKREST
171
PANELING BACKREST
171
PANELING BACKREST
171
PANELING BACKREST
171
PANELING BACKREST
171
PANELING BACKREST
171
PANELING BACKREST
171
PANELING BACKREST
171
PANELING BACKREST
171
PANELING BACKREST
175
SCREW PANELLING TO FRONT SEAT BACKREST
180
SEAT ADAPTER CENTRAL
185
SEAT ADAPTER RIGHT
185
SEAT ADAPTER LEFT
187
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION 4.8X13
189
CABLE TIE BRANCH-OFF LINE FASTENING FOR RPM SENSOR
190
HOLDING FIXTURE SIDEBAG, LEFT
195
RIVET
210
ELECTRIC MOTOR SEAT VENTILATION, RIGHT BACKREST
211
CLIP SEAT COVER MOUNTING,TRANSVERSE
215
CONTROL UNIT SEAT VENTILATION
220
SCREW
220
HEXALOBULAR BOLT CAN NEUTRAL POINT ON EQUIPMENT PLATE M4X12,V 202043
225
PLATE AMG BADGE
230
PAD TO CONTROL UNIT
270
ESCUTCHEON VENTILATION ON THE RIGHT
270
ESCUTCHEON VENTILATION ON THE LEFT
900
REP.SET CONTACT WINDOWBAG SQUIB, REAR 2-PIN 0.5MM2,R12/22 R12/23
