Поз.
Артикул
Описание
5

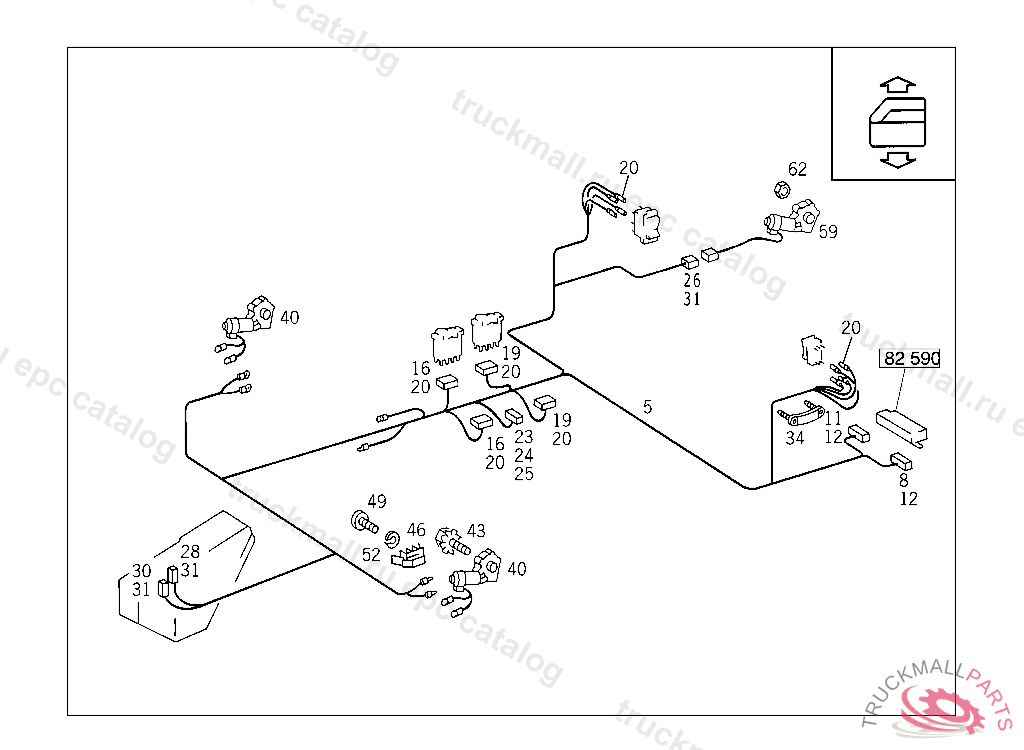

CABLE HARNESS FROM SWITCH CLUSTER TO FRONT-DOOR/ REAR-SIDE-PART WINDOW-REGULATOR MOTORS
5
CABLE HARNESS FROM SWITCH CLUSTER TO FRONT-DOOR/ REAR-SIDE-PART WINDOW-REGULATOR MOTORS
8
PIN BUSHING HOUSING TELL-TALE LAMP ASD
8
PLUG CONTROL UNIT OF COMFORT CONTROL
11
PLUG CONTROL UNIT OF COMFORT CONTROL
12
ROUND PIN BUSHING LIGHT SWITCH 2,5 MM
12
ROUND PIN BUSHING4.0 MM
16
PIN BUSHING HOUSING ELECTRIC WINDOW REGULATOR SWITCH VORN
19
PIN BUSHING HOUSING ELECTRIC WINDOW REGULATOR SWITCH HINTEN
20
ROUND PIN BUSHING2.5 MM2
23
PIN BUSHING HOUSING SAFETY SWITCH
25
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
26
PIN BUSHING HOUSING BIPOLAR
28
PIN BUSHING HOUSING FUSE BOX H
30
PIN BUSHING HOUSING FUSE BOX "G"
31
ROUND PIN BUSHING4 MM2
34
CLIP MAIN CABLE HARNESS TO FRONT FLOOR
40
ELECTRIC MOTOR ELECTRIC WINDOW REGULATOR,LEFT
40
ELECTRIC MOTOR ELECTRIC WINDOW REGULATOR,RIGHT
43
SCREW ELECTRIC WINDOW REGULATOR MOTOR
46
SOCKET-TERMINAL STRIP BIPOLAR
49
SCREW ELECTRIC CABLE TO FUSE BOX
52
LOCK WASHER T-FITTING TO BRACKET
59
ELECTRIC MOTOR ELECTRIC WINDOW REGULATOR,RIGHT REAR SIDE PART, TO BE ADAPTED DURING ASSEMBLY
59
ELECTRIC MOTOR ELECTRIC WINDOW REGULATOR,LEFT REAR SIDE PART, TO BE ADAPTED DURING ASSEMBLY
62
NUT TACHOGRAPH TO BRACKET
