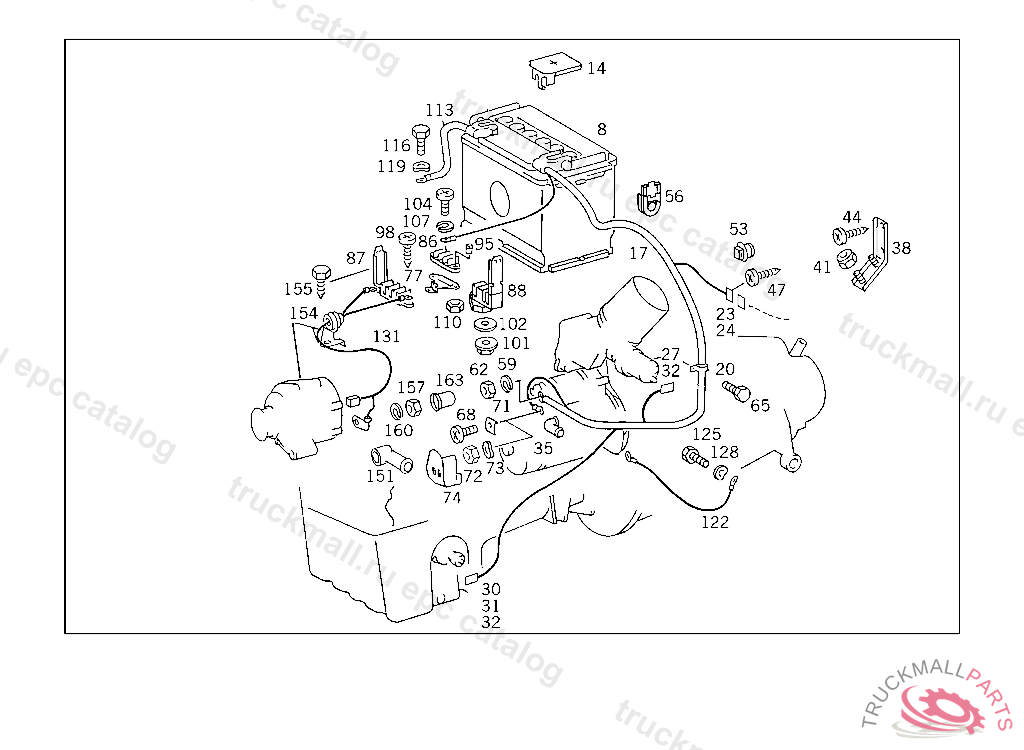

Поз.
Артикул
Описание
8
BATTERY FILLED 12V/62 AH
8
BATTERY PARTS KIT,5 338284
14
BOOT POS. POLE
17
POSITIVE CABLE FROM BATTERY TO STARTING MOTOR
17
POSITIVE CABLE FROM BATTERY TO STARTING MOTOR
23
PLUG HOUSING INBOARD CABLE HARNESS PLUG-CONNECTION
24
PLUG PIN ADDITIONAL CABLE TO SERIES CABLE
27
PIN BUSHING HOUSING UNIPOLAR, HEAT SENSOR CONNECTION
30
PLUG. PIN BUSHING HOUSING NTC FEELER
31
GROMMETTO 014 545 07 28
32
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
35
GROMMET CABLE TO STARTING MOTOR
38
BRACKET STARTING MOTOR CABLE HARNESS PLUGCONNECTION
41
NUT BRACKET TO ANTENNA, ONLY USED WITH REAR END MOUNTINGA 001878
44
SHEET METAL SCREW FUEL STRAINER SCREEN TO FUEL TANK
47
SHEET METAL SCREW , Replaced By: N007981004233
53
FASTENER BUTTON ELECTRIC CABLE TO FIRE WALL
56
GROMMET STARTING CABLE THRU UNIT PARTITION PANEL
59
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
62
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
65
SCREW PUMP TO BRACKET
72
NUT BALL PIVOT TO LEVER
73
SPRING WASHER LICENSE PLATE TO BRACKET
74
COVERING CABLE TO STARTING MOTOR,TERMINAL 50
77
BRACKET CABLE CONNECTOR TO DAMPER STRUT
86
SOCKET-TERMINAL STRIP SPRING DOME
87
SOCKET-TERMINAL STRIP 3-POLE
88
SOCKET-TERMINAL STRIP RIGHT FRONT WHEEL ARCH,F 005739
95
LOCK FRONT PANEL,LATERAL RIGHT,9/87
98
SHEET METAL SCREW , Replaced By: N000000000453
101
NUT
102
WASHER BRACKET TO CROSS MEMBER
104
SCREW STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET M4X10
104
SCREW COVER PLATE TO COVER PLATE M 6 X 10
104
SCREW , Replaced By: N007985004107
107
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
107
LOCK WASHER T-FITTING TO BRACKET
110
NUT BALL PIVOT TO LEVER
113
NEG. CABLE FROM BATTERY NEG. POLE TO GROUND 220 MM
113
NEG. CABLE FROM BATTERY NEG. POLE TO GROUND
116
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
119
SPRING WASHER , Replaced By: N000137008212
122
NEG. CABLE , Replaced By: A9015400741
125
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
128
SPRING WASHER , Replaced By: N000137008212
131
CABLE HARNESS FROM ALTERNATOR TO CABLE CONNECTOR
131
CABLE HARNESS FROM ALTERNATOR TO CABLE CONNECTOR 120 A
154
BRACKET ALTERNATOR CABLE HARNESS
155
SHEET METAL SCREW BRACKET TO CAB FLOOR
157
NUT , Replaced By: N304032008006
157
NUT TACHOGRAPH TO BRACKET
157
NUT
160
LOCK WASHER T-FITTING TO BRACKET
160
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
163
CAP SCREW HEAD COVERING
163
PROTECTION CAP , Replaced By: A0008310929
