Поз.
Артикул
Описание

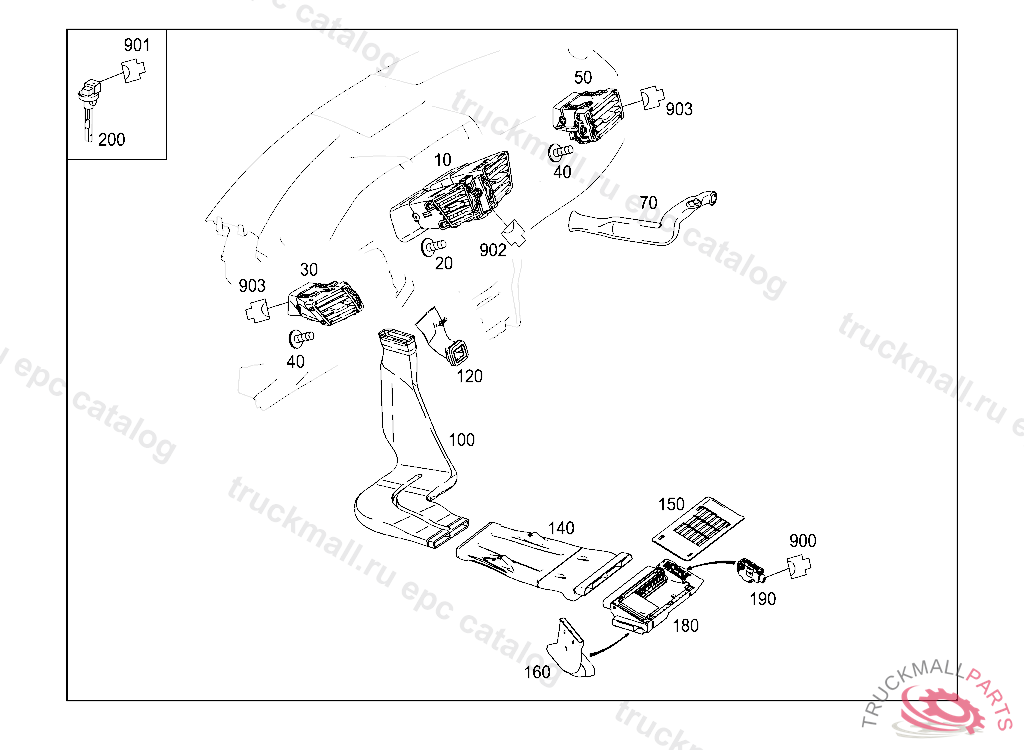

10
AIR NOZZLE CENTRAL
10
AIR NOZZLE CENTRAL
20
BOLT CONTACT PLATE FASTENER M5X10
30
AIR NOZZLE LEFT
30
AIR NOZZLE LEFT
40
BOLT CONTACT PLATE FASTENER M5X10
50
AIR NOZZLE RIGHT
50
AIR NOZZLE RIGHT
70
DUCT GLOVE COMPARTMENT VENTILATION
70
DUCT GLOVE COMPARTMENT VENTILATION
100
RIGHT AIR DUCT RIGHT
100
LEFT AIR DUCT LEFT
120
DUCT AT CENTER CONSOLE, LEFT FRONT
120
DUCT AT CENTER CONSOLE, RIGHT FRONT
140
AIR DUCT LEFT REAR FOOTWELL, A 00896520110324
140
AIR DUCT REAR FOOTWELL
140
AIR DUCT LEGROOM REAR RIGHT, A 01643820110531
150
AIR FLOW SERRATION LEFT REAR FOOTWELL
150
AIR FLOW SERRATION LEGROOM REAR RIGHT
160
LEFT AIR DUCT IN B-PILLAR, LEFT
160
RIGHT AIR DUCT IN B-PILLAR RIGHT
180
RIGHT AIR DUCT TO RIGHT B PILLAR
180
LEFT AIR DUCT TO LEFT B-PILLAR
190
STEPPER MOTOR SERVOMOTOR
200
TEMPERATURE SENSOR RIGHT
900
CONNECTOR HOUSING ACTUATOR MOTOR AIR DUCT AT REAR BOTTOM, LEFT AND RIGHT 4-PIN MQS,M16/33, M16/34
901
CLUTCH HUMIDITY AND TEMPERATURE SENSOR 3-PIN MQS,B82
901
PIN BUSHING HOUSING WARNING DEVICE
902
PIN BUSHING HOUSING. PLUG CONNECTOR FOR POTENTIAL DISTRIBUTOR (CAN),COCKPIT
903
SOCKET HOUSING. PIN BUSHING HOUSING FRONT MIRROR R 27, 2 PIN
