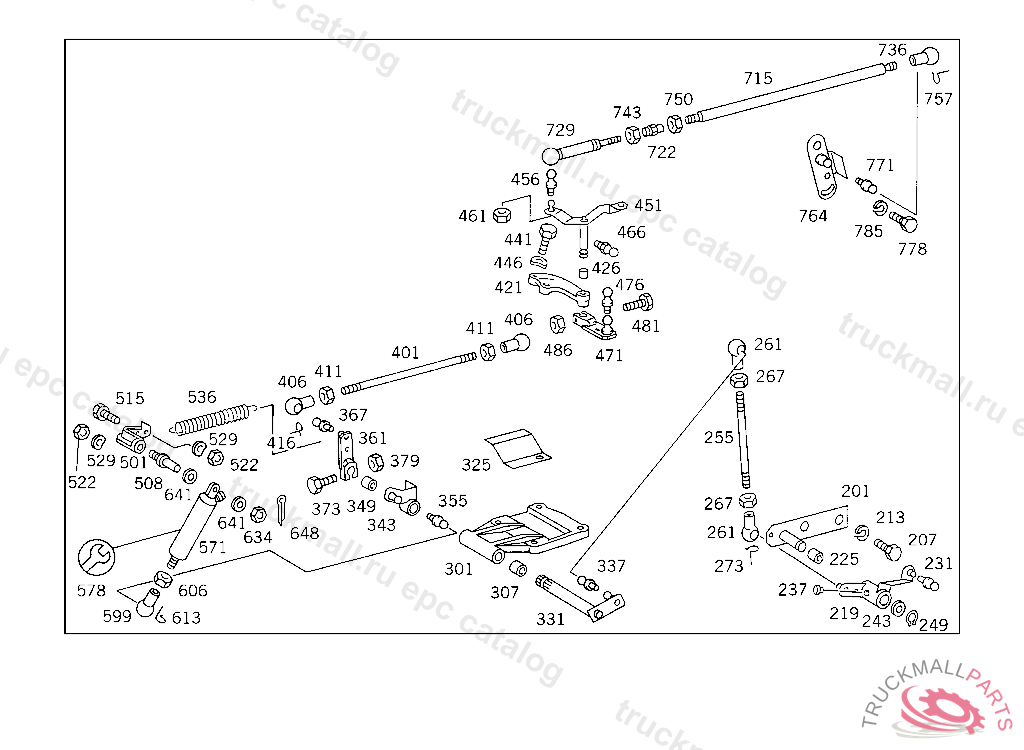

Поз.
Артикул
Описание
201
BRACKET INTERMEDIATE AXLE
201
BRACKET , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 616806, Replaced By: A4420700140
207
SCREW BRACKET TO ENGINE
213
LOCK WASHERROCKINGER TYP 59 G140,59 G150
219
LEVER (DOUBLE LEVER), FROM ENGINE 616807,ALSO INSTALLED ON 616100
225
BUSHING MOUNTING
231
BALL PIVOT LEVER
231
BALL PIVOT , Replaced By: A3129910120
237
GREASE NIPPLE
243
WASHER
249
LOCK RINGTO 000 553 37 01,000 553 39 01,
255
PULL ROD LOAD SENSOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
261
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
267
NUT BALL PIVOT TO LEVER
273
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
301
BEARING BRACKET
307
BUSHING MOUNTING
325
BRACKET ,255752468985
331
SHAFT
337
BALL PIVOT LEVER
337
BALL PIVOT , Replaced By: A3129910120
343
LEVER
349
BUSHING MOUNTING
355
BALL PIVOT
355
BALL PIVOT
361
LEVER ,253411
367
BALL PIVOT LEVER
367
BALL PIVOT , Replaced By: A3129910120
373
SCREW , Replaced By: N000000001479
373
HEXALOBULAR BOLT. SCREW LINE MOUNTING M 6X30
379
NUT BALL PIVOT TO LEVER
401
ROD (PUSH ROD)
406
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
411
NUT BALL PIVOT TO LEVER
416
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
421
BEARING BRACKET
426
BUSHING MOUNTING
441
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
441
SCREW LEFT AND RIGHT CONSOLES TO CAB
441
SCREW , Replaced By: N308676012015
446
SPRING WASHER CAB FLOOR
446
SPRING WASHER AIR COMPRESSOR LINE TO ENGINE,5 812731 - 5 8174215 936366 - 5 999999K 000001N 817422K 126820
451
SHAFT (INTERMEDIATE SHAFT)
456
BALL PIVOT INJECTION PUMP
461
NUT BALL PIVOT TO LEVER
466
GREASE NIPPLE
471
LEVER
476
BALL PIVOT LEVER
476
BALL PIVOT , Replaced By: A3129910120
481
SCREW , Replaced By: N000000001479
481
HEXALOBULAR BOLT. SCREW LINE MOUNTING M 6X30
486
NUT BALL PIVOT TO LEVER
501
BEARING BRACKET
508
PIN CYLINDER TO BRACKET
515
SCREW BRACKET TO CROSS CONNECTION STRUT
515
SCREW , Replaced By: N304017008034
522
NUT
529
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
529
SPRING WASHER , Replaced By: N000137008212
536
SPRING RELEASE SPRING, UP TO CHASSIS 556499 EXCEPT FOR 553795,555902,556120
571
CYLINDER INTERMEDIATE SPEED STOP
571
CYLINDER INCREASE IN NUMBER OF REVOLUTIONS KNORR
578
REPAIR KITTO 000 430 48 26,KNORR
578
REPAIR KIT
578
REPAIR KIT SHIFTING CYLINDER TO KNORR, SZ 1130 I/74963,000 430 3026
599
BALL SOCKET
606
NUT
606
NUT , Replaced By: N304035008001
613
SECURING CLIP. CIRCLIP
634
NUT POWER CYLINDER TO BRACKET
634
NUT POWER CYLINDER TO BRACKET
641
WASHER , Replaced By: N000125008443
641
WASHER INTERMEDIATE SPEED STOP
641
WASHER EXHAUST MUFFLER TO STRAP
648
COTTER PIN CYLINDER TO BRACKET
715
ROD (PUSH ROD)
722
TURNBUCKLE TURNBUCKLE
729
ROD FROM ACCELERATOR PEDAL TO CONTROL SHAFT BEARING
729
ROD , Replaced By: A6583001715
736
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
743
NUT BALL PIVOT TO LEVER
750
NUT L.H. THREAD
757
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
764
LEVER
771
BALL PIVOT LEVER
771
BALL PIVOT , Replaced By: A3129910120
778
SCREW CLAMP MOUNTING M 6X16
785
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
CYLINDER
999
CYLINDER , Replaced By: A0004304926
999
REPAIR KIT , Replaced By: A0024300060
999
LEVER , UP TO ENGINE 616806 EXCEPT FOR 616100, Replaced By: A4420700122, +001A4420700140
999
PIN , Replaced By: A4221440174, +001N999900008004
999
PIN , Replaced By: A4421440574
