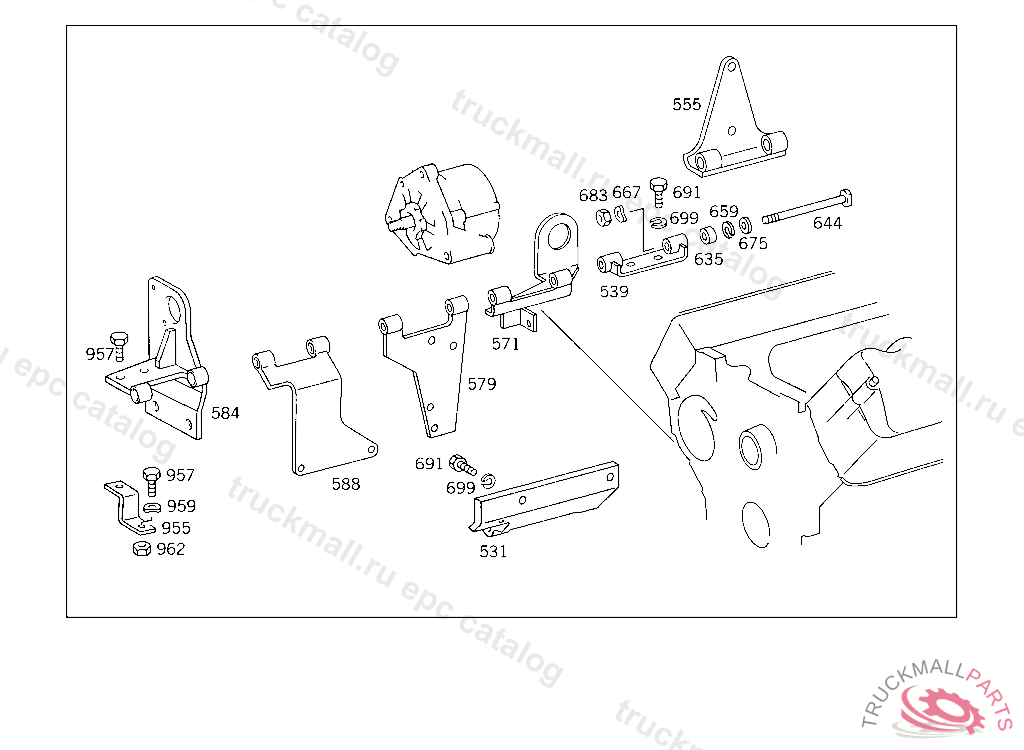

Поз.
Артикул
Описание
531
SUPPORT ALTERNATOR
531
SUPPORT ALTERNATOR, 402 000269 403 004036
531
SUPPORT ALTERNATOR
531
SUPPORT ALTERNATOR
531
SUPPORT ALTERNATOR
531
SUPPORT ALTERNATOR, 402 000269 403 004036
531
SUPPORT ALTERNATOR,184180
531
SUPPORT
539
SUPPORT ALTERNATOR
539
SUPPORT ALTERNATOR
555
SUPPORT ALTERNATOR
555
SUPPORT ALTERNATOR
571
SUPPORT ALTERNATOR
571
SUPPORT ALTERNATOR
571
SUPPORT ALTERNATOR
571
SUPPORT , Replaced By: A4211500270
579
SUPPORT ALTERNATOR
584
SUPPORT ALTERNATOR
588
SUPPORT ALTERNATOR
588
SUPPORT , Replaced By: A4951500070
635
BUSHING
635
BUSHING ALTERNATOR MOUNTING FOOT TO 005 154 33 02
635
SPACER TUBE
635
BUSHING
635
BUSHING
635
BUSHING
644
SCREW DUMPER SHAFT,5 515436
644
HEXAGON HEAD BOLT AIR DEHYDRATOR TO BRACKET M12X55,V 207570
644
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
644
SCREW ALTERNATOR TO SUPPORT
644
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
644
HEXAGON HEAD BOLT. SCREW THROTTLE HOUSING TO FRONT EXHAUST PIPE M 12X70
644
SCREW
644
SCREW ALTERNATOR MOUNTING
644
SCREW BRACKET TO CONSOLE
644
SCREW , Replaced By: N304014010015
644
SCREW , Replaced By: N304014010015
644
SCREW , Replaced By: N308676012031
644
SCREW , Replaced By: N000961012208
644
SCREW , Replaced By: N308676012011
644
HEXAGON HEAD BOLT BEARING BRACKET TO SIDE MEMBER M 12X50
644
SCREW BRACKET TO FRAME SIDE MEMBER
659
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
667
SPRING WASHER STEERING COLUMN BRACKET TO CAB
675
WASHER VIBRATION ABSORBER TO BRACKET
675
WASHER SUPPORT TO ALTERNATOR TO 352 150 09 73
675
WASHER DUMPING PLATFORM MOUNTING
675
WASHER , Replaced By: A1403521376
675
WASHER , Replaced By: A3149900940
675
WASHER , Replaced By: N000433010510
683
NUT , Replaced By: N910113010000
683
NUT END PIECE TO EXHAUST PIPE
683
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
683
NUT BRACKET TO SIDE MEMBER M12X1.5
683
NUT DRAG LINK END TO DRAG LINK,5 055225
683
NUT STRAP TO BRACKET
683
PART NAME MISSING ALTERNATOR TO SUPPORT
683
NUT CLAMPING BOLT TO ALTERNATOR TO 352 155 01 72
691
SCREW LEFT BEARING BRACKET TO CASE
691
SCREW CONSOLE TO SIDE MEMBER
691
SCREW CONNECTOR TO REAR SHIFTING ROD
691
SCREW BRACKET TO LEFT SIDE MEMBER
691
SCREW STRUT TO CROSS MEMBER M 10X25
691
HEXAGON HEAD BOLT TRAY AT TRANSMISSION M12X45
691
SCREW BRACKET TO TELESCOPIC TUBE,K 131522
691
SCREW STRAP TO BRACKET
691
SCREW PLATE TO FRAME M 10X45
691
SCREW AUXILIARY FRAME MOUNTING
691
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
691
SCREW
691
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO BRACKET M 10X65
691
SCREW SUPPORT TO CYLINDER CRANKCASE
691
SCREW BRACKET TO FRAME SIDE MEMBER
691
HEXAGON HEAD BOLT BRACKET TO BEARING BRACKET M12X35
691
SCREW BRACKET TO TIMING CASE
691
SCREW REAR EXHAUST PIPE TO MUFFLER
691
SCREW SUPPORT TO CYLINDER CRANKCASE
691
SCREW BRACKET TO FRAME SIDE MEMBER M 14X25,5 724020
691
HEXAGON HEAD BOLT VIBRATION ABSORBER TO BRACKET
691
SCREW BRACKET TO SIDE MEMBER
691
SCREW END PIECE TO EXHAUST PIPE M 12X30
691
SCREW END PIECE TO EXHAUST PIPE M 10X25
691
SCREW , Replaced By: N304017010035
691
SCREW , Replaced By: N304017010047
691
SCREW , Replaced By: N304017012020
691
SCREW , Replaced By: N304017014011
691
SCREW , Replaced By: N304017014011
691
HEXAGON HEAD BOLT. SCREW BRACKET TO AIR INTAKE PIPE M 10X45
691
SCREW BRACKET IN CYLINDER CRANKCASE
699
LOCK WASHER CONTROL ARM TO BEARING BRACKET,5 048243
699
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
699
LOCK WASHER SPARE WHEEL TO BRACKET
699
LOCK WASHER FITTING TO BRACKET
699
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
955
BRACKET BRACKET TO TIMING CASE
957
SCREW STRUT TO CROSS MEMBER M 10X25
957
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
959
SPRING WASHER STEERING COLUMN BRACKET TO CAB
962
NUT , Replaced By: N913023010002
962
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
999
WASHER
999
GASKET , Replaced By: A4071540280
999
PIPE SOCKET , Replaced By: A4031540365
999
PIPE SOCKET , Replaced By: A4071540165
999
DIODE , Replaced By: A0005487918
999
DIODE , Replaced By: A0005489818
999
DIODE , Replaced By: A0015481118
999
SCREW , Replaced By: A0009908221
999
SCREW , Replaced By: A0009908321
999
SCREW , Replaced By: A0009907921
999
DIODE , Replaced By: A0015481518
999
SCREW , Replaced By: A0009907121
999
SCREW , Replaced By: A0019902120
999
SCREW , Replaced By: A0009907621
999
REGULATOR AND CUT-OUT , Replaced By: A0021545506
999
REGULATOR AND CUT-OUT , Replaced By: A0021546806
999
BALL BEARING
999
BALL BEARING , Replaced By: A0059812225
999
ALTERNATOR , NOT USED
999
ALTERNATOR , Replaced By: A0081547802
999
BRACKET COOLING WATER LINE TO ENGINE
999
CLAMPING BOLT , Replaced By: A4031500572
999
WASHER , Replaced By: A3149900940
