Поз.
Артикул
Описание

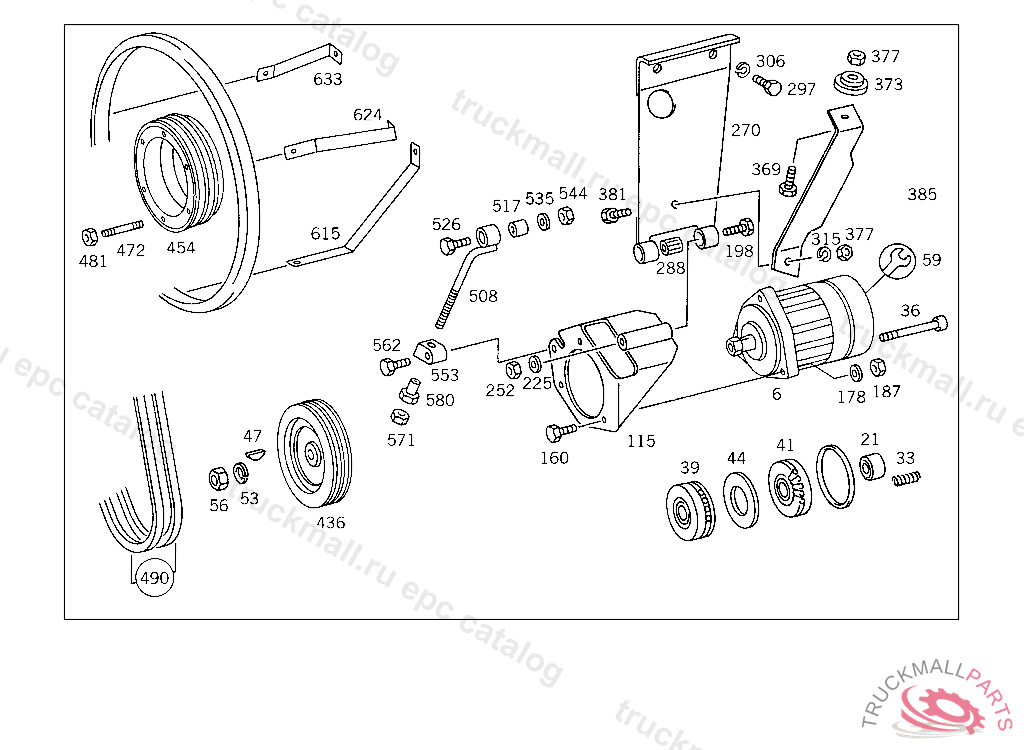

6
HYDRAULIC PUMPBOSCH, UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
21
CYLINDR. ROLLER BEARING HOUSING,INSIDE, UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
33
SPRING HOUSING,INSIDE, UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
36
SCREW CASE,REAR, UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
36
SCREW , Replaced By: N000912008180
39
BEARING HOUSING,FRONT, UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
41
BEARING HOUSING,INSIDE, UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
44
SPACER WASHER HOUSING,INSIDE, UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
47
WOODRUFF KEY POWER STEERING PUMP
53
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
56
NUT BRACKET TO SIDE MEMBER
59
SEAL RING , Replaced By: A0139979546
59
REPAIR KIT , Replaced By: A0189973747, +001A0059971945
59
REPAIR KIT SHIMS, UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
59
SEAL RING GASKET KIT, UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
115
BRACKET (CONSOLE),HYDRAULIC PUMP
160
SCREW SUPPORT TO FENDER
160
SCREW , Replaced By: N304017008018
178
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
187
NUT ENGINE MOUNTING M8
187
HEXAGON NUT. NUT , Replaced By: N913023008002
198
SCREW DUMPER SHAFT,5 515436
198
SCREW , Replaced By: N304014010015
225
WASHER RADIATOR TO RUBBER MOUNTING
252
NUT CONSOLE TO SUPPORT
270
BRACKET (SUPPORT),HYDRAULIC PUMP CONSOLE
288
BUSHING
297
SCREW SUPPORT TO CYLINDER CRANKCASE
306
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
315
STIFFENING , 012319
369
SCREW , Replaced By: N304017010053
369
SCREW , Replaced By: N304017010030
369
SCREW PIPE ELBOW TO BRACKET M 10X50
369
SCREW SUPPORT TO CROSS MEMBER M 10X28
373
WASHER BRACING TO ENGINE, 012319
377
NUT BRACKET TO SUPPORT AND TO END PIECE
381
SCREW STRUT TO CROSS MEMBER M 10X25
385
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
436
PULLEY GEAR TYPE HYDRAULIC PUMP
436
PULLEY BOSCH HYDRAULIC PUMP
436
PULLEY HYDRAULIC PUMP
436
PULLEY GEAR TYPE HYDRAULIC PUMP
436
PULLEY GEAR TYPE HYDRAULIC PUMP,194857
436
PULLEY HYDRAULIC PUMP
454
PULLEY CRANKSHAFT
454
PULLEY TWO-GROOVE
454
PULLEY CRANKSHAFT, 421-422188128 442-443012718
454
PULLEY TWO-GROOVE
454
PULLEY VIBRATION ABSORBER
454
PULLEY CRANKSHAFT
472
STUD BOLT P.T.O. CASE TO TRANSMISSION CASE M 8 X 65
472
STUD BOLT
472
STUD BOLT FAN TO CRANKSHAFT M 8X65
472
STUD BOLT BRAKE ANCHOR
481
NUT
490
V-BELT SET OF NARROW V-BELTS2 PIECES 12.5X1325
490
V-BELT HYDRAULIC PUMP 12.5X1375 MM
490
V-BELT PULLEY TO WATER PUMP 12.5X1275
490
V-BELT SET2 PIECES 12.5X1325
490
V-BELT , Replaced By: A0049971292
490
V-BELT FAN DRIVE,D 180260
508
CLAMPING BOLT , Replaced By: A3551500372
508
CLAMPING BOLT , Replaced By: A3551500372
508
CLAMPING BOLT (CLAMPING BOLT)
517
BUSHING
526
SCREW PIPE ELBOW TO BRACKET M 10X50
526
SCREW , Replaced By: N304017010053
526
SCREW , Replaced By: N304017010030
535
WASHER RADIATOR TO RUBBER MOUNTING
544
NUT BRACKET TO SUPPORT AND TO END PIECE
553
CLAMPING PIECE TIGHTENER PULLEY
553
CLAMPING PIECE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3141550228
562
SCREW CENTRAL BEARING M 12X45
571
NUT STRAP TO SUPPORT,5 149419
580
NUT TIGHTENER PULLEY TO LEVER
615
BRACKET AIR BAFFLE, 012318
624
BRACKET AIR BAFFLE, 012318
633
BRACKET AIR BAFFLE, 012318
999
NARROW V-BELT
999
PULLEY VIBRATION ABSORBER
999
INTERMEDIATE PIECE FAN
999
PULLEY , 421-422188127 442-443012717, Replaced By: A4222360110, +001A4220350912, +001A0039974292
999
BEARING BRACKET , Replaced By: A4222300139
999
BEARING BODY , Replaced By: A4222300008
999
INTERMEDIATE PIECE FAN TO VIBRATION DAMPER
999
INTERMEDIATE PIECE , Replaced By: A4030350914
999
STIFFENING , 012318
999
BRACKET , Replaced By: A4222300340
999
BRACKET ,617.024-15-229475, Replaced By: A4222300140, +001A4221300035, +001A4222300139, +001A4222300294
999
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4032300840
999
BRACKET , Replaced By: A4222300240
999
BRACKET , Replaced By: A4032300740
999
STIFFENING , 229475
999
STIFFENING , Replaced By: A4032300294, +001A4031504170, +001A4031504370, +001A4032300039
999
STIFFENING , Replaced By: A4032300194
999
BEARING BRACKET , Replaced By: A4222300039
999
INTERMEDIATE PIECE FAN TO VIBRATION DAMPER
999
BOLT. SCREW BRACKET TO PUSH ROD CHAMBER COVER
999
NUT ALTERNATOR
999
CLAMPING PIECE TIGHTENER PULLEY TO LEVER
999
SEAL RING , UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
999
V-BELT , Replaced By: A0039976292
999
SPRING FOR VALVE DISC, UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
999
SPRING , UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
999
SEAL RING , NOT USED
999
SEAL RING , UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
999
ROLLER BEARING , UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
999
HOUSING HYDRAULIC PUMP, UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
999
WASHER CASE,REAR, UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
