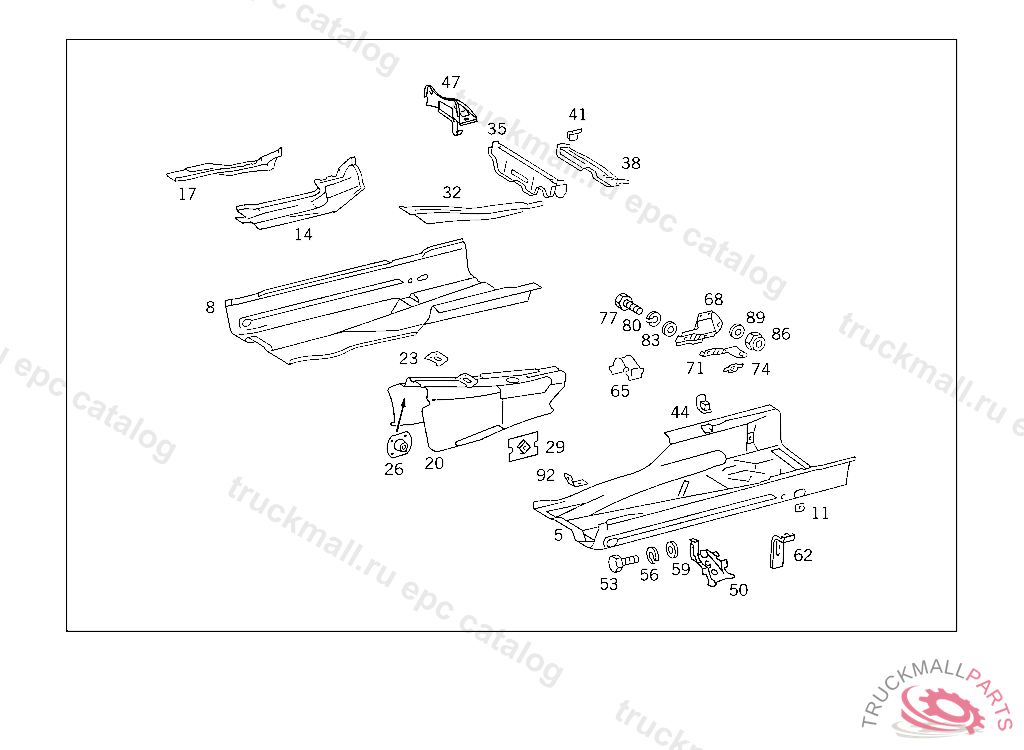

Поз.
Артикул
Описание
5
MAIN FLOOR LEFT
8
MAIN FLOOR RIGHT, TO BE ADAPTED DURING ASSEMBLY
11
THREADED CHUCK SAFETY BELT MOUNTING
20
TUNNEL
23
BRACKET (SENSOR)
26
THREADED CHUCK PARKING BRAKE TO TUNNEL
32
SIDE MEMBER FRONT RIGHT
32
SIDE MEMBER FRONT LEFT
35
CROSS MEMBER BELOW FRONT SEAT,FRONT LEFT
35
CROSS MEMBER BELOW FRONT SEAT,FRONT RIGHT
38
CROSS MEMBER BELOW FRONT SEAT,REAR RIGHT
38
CROSS MEMBER BELOW FRONT SEAT,REAR LEFT
41
CONSOLE FRONT SEAT BRACING
44
CONSOLE CABLE PASSAGE
47
REINFORCEMENT , Replaced By: A1246102325
47
REINFORCEMENT CROSSMEMBER DRIVER'S SEAT WITH CAT BRACKET
50
CONSOLE RIGHT, A 061921
50
CONSOLE LEFT, A 061921
53
SCREW BRACING TO TUNNEL
56
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
59
WASHER EXHAUST MUFFLER TO STRAP
65
TAKE-UP DEVICE PROPELLER SHAFT BEARING IN TUNNEL CENTER
92
MOUNTING ACCELERATOR PEDAL, AT FRONT FLOOR
92
MOUNTING ACCELERATOR PEDAL
