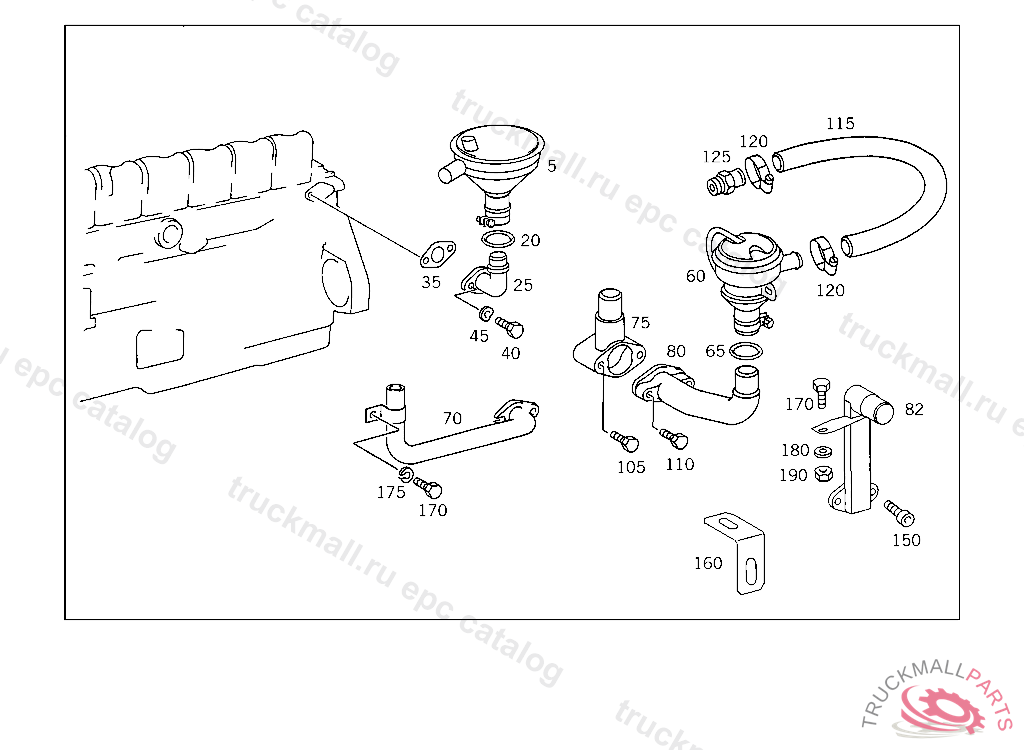

Поз.
Артикул
Описание
5
OIL SEPARATOR OIL SEPARATOR
5
OIL DRIP PAN , Replaced By: A0000180735, +001A0009975348
20
SEAL RING
25
OIL PIPE OIL SEPARATING PIPE
25
BREATHER PIPE OIL SEPARATING PIPE
25
OIL PIPE , Replaced By: A4470100324
35
GASKET. SEAL , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3559970149
35
GASKET OUTLET TO ENGINE
40
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
40
SCREW END PIECE TO EXHAUST PIPE M 10X25
40
SCREW , Replaced By: N910105012013
40
HEXAGON HEAD BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET
40
SCREW OIL SEPARATOR TO CYLINDER CRANKCASE
45
SPRING WASHER STEERING COLUMN BRACKET TO CAB
45
WASHER RADIATOR TO RUBBER MOUNTING
60
OIL DRIP PAN , UP TO ENGINE 234537 YEAR OF MANUFACTURE 1992
60
OIL DRIP PAN , Replaced By: A3520100162
65
SEAL RING
70
OIL PIPE OIL SEPARATING PIPE
75
BREATHER PIPE OIL SEPARATING PIPE
80
BREATHER PIPE OIL SEPARATING PIPE
82
BREATHER PIPE OIL SEPARATING PIPE
105
SCREW , Replaced By: N304017010055
105
SCREW , Replaced By: N304017010050
110
SCREW REAR EXHAUST PIPE TO MUFFLER
115
HOSE INTAKE PIPE TO BREATHER PIPE,OM 352
120
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
125
FITTING , Replaced By: A4221340056
125
FITTING AT AIR COMPRESSOR
150
SCREW BRACKET TO CONSOLE
160
BRACKET CONNECTING PIPE TO INTAKE MANIFOLD
170
BOLT. SCREW CONNECTING PIPE TO INTAKE MANIFOLD
175
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
180
WASHER , Replaced By: N000125008443
180
WASHER EXHAUST MUFFLER TO STRAP
190
NUT , Replaced By: N304032008006
190
NUT
999
OIL SEPARATOR , 402 000214 403 003690, Replaced By: A0000180735
999
OIL SEPARATOR , 000214, Replaced By: A0000180835, +001A0009975348
999
OIL SEPARATOR , Replaced By: A4030100262
999
OIL SEPARATOR , Replaced By: A0000185935
999
OIL DRIP PAN , Replaced By: A3520100062
999
OIL DRIP PAN , Replaced By: A4230100162
999
OIL DRIP PAN , THE OLD PART MUST NOT BE INSTALLED ON THE ITEMS LISTED OPPOSITE, Replaced By: A3520100062
999
PIPE OIL SEPARATING PIPE
999
FLANGE COOLING WATER FEED LINE LOCK
999
HOSE HOSE TO OIL FILLER PIPE AND TO PIPE SOCKET ON OIL PAN 135 MM, ORDER BY THE METER
999
OIL PIPE , Replaced By: A4270100524
999
OIL PIPE OIL SEPARATING PIPE,059707
999
FLANGE OIL SEPARATING PIPE
999
GASKET , Replaced By: N917003040006
