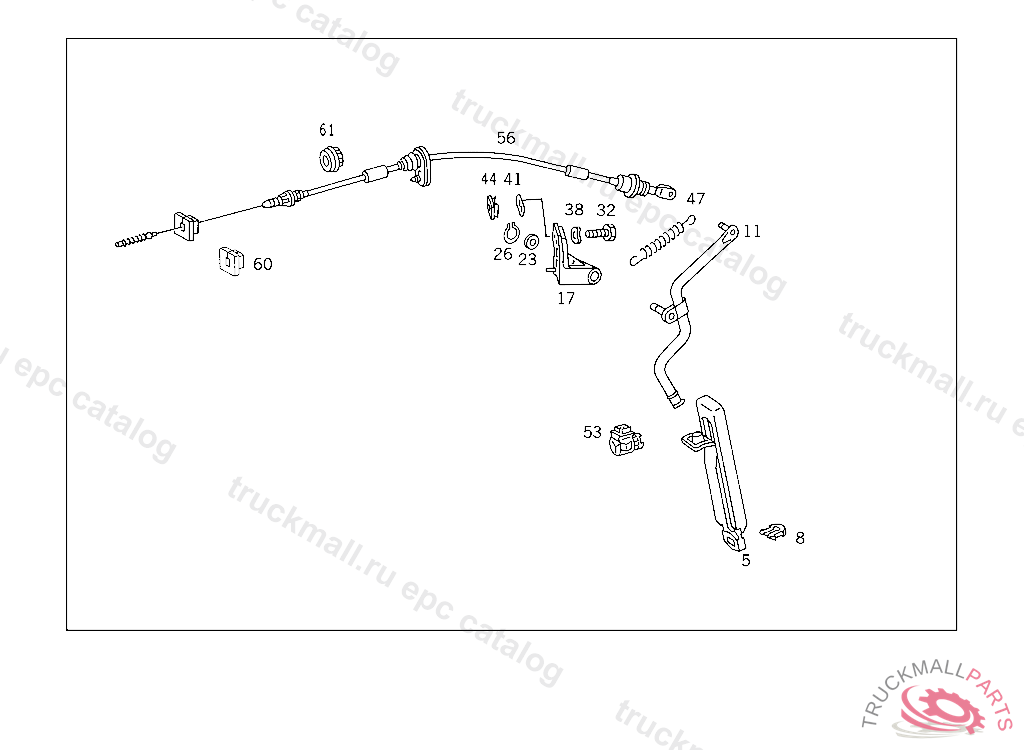

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL
8
CLIP
8
BRACKET , Replaced By: A1249888678
11
LEVER ACCELERATOR PEDAL,B 838714,J 003392
17
BEARING ACCELERATOR PEDAL BEARING,B 838714,J 003392
17
BEARING , Replaced By: A1243010318
23
FITTED WASHER ACCELERATOR PEDAL BEARING,B 838714,J 003392
26
LOCK RINGTO 000 553 37 01,000 553 39 01,
32
SCREW LICENSE PLATE TO BRACKET
38
SPRING WASHER LICENSE PLATE TO BRACKET
41
GASKET BEARING TO FIRE WALL
44
NUT RETAINER , Replaced By: A0019906791
47
SPRING ACCELERATOR PEDAL,B 838714,J 003392
53
SWITCH , NOT USED
53
SWITCH (KICK-DOWN SWITCH)
53
SWITCH , NOT USED
56
WIRE CABLE
56
WIRE CABLE
60
GUIDE
61
RUBBER BUFFER WIRE CABLE TO FIRE WALL, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
