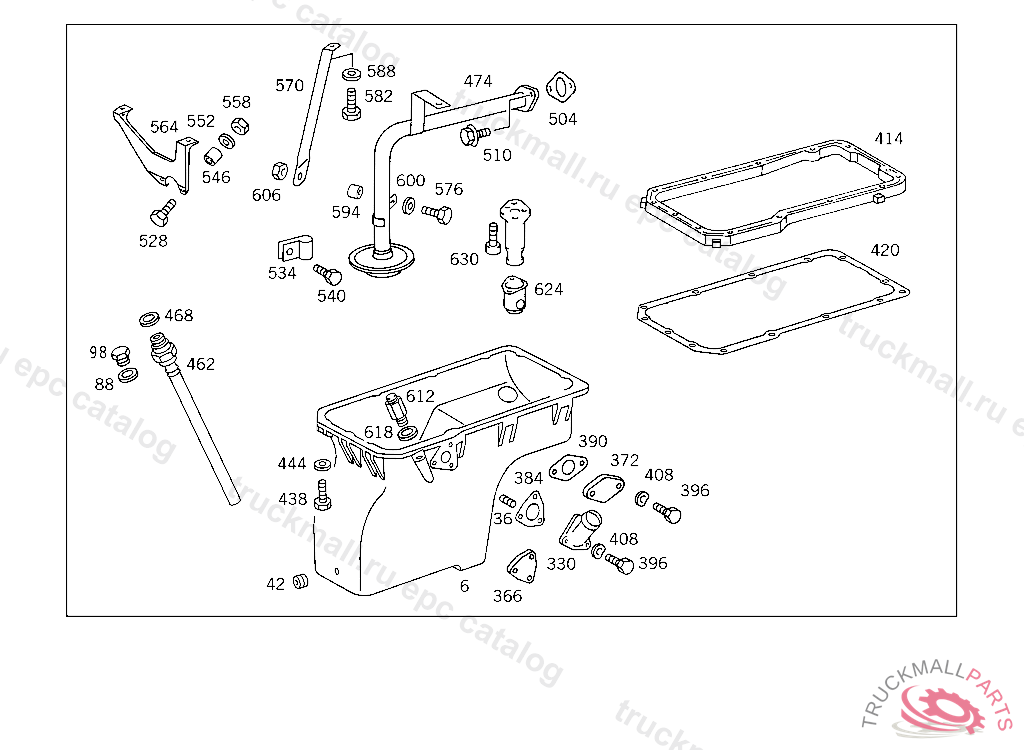

Поз.
Артикул
Описание
6
OIL PAN ,176066
6
OIL PAN
6
OIL PAN
6
OIL PAN
6
OIL PAN
6
OIL PAN
6
OIL PAN
6
OIL PAN , Replaced By: A4410100413
6
OIL PAN , Replaced By: A4410100313
6
OIL PAN , 401-265148 421-136227 401-266253 421-172419, Replaced By: A4410100013, +001A4219970072
6
OIL PAN , 401-265147 421-136226, Replaced By: A4210100513, +001A4212051240
6
OIL PAN , Replaced By: A4210100013
36
THREADED INSERT
42
THREADED INSERT
42
THREADED CHUCKTO 506 010 23 13 / 27 13, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
88
SEAL RING SOLENOID VALVE A 18X24
98
SCREW PLUG
330
OIL FILLER NECK
366
FLANGE
372
FLANGE , Replaced By: A4079975250
372
FLANGE COOLING WATER FEED LINE LOCK
384
GASKET , Replaced By: A4420180080
384
GASKET OIL FILLER NECK
390
GASKET OIL FILLER NECK TO OIL PAN
396
SCREW END PIECE TO EXHAUST PIPE M 10X25
396
SCREW GROUND STRAP TO CAB CROSS MEMBER M 10X25
396
SCREW PIPE CLAMP
396
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
396
SCREW , Replaced By: N304017008021
408
SPRING WASHER , Replaced By: N000137008212
408
SPRING WASHER STEERING COLUMN BRACKET TO CAB
408
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
414
SHIM OIL PAN TO CYLINDER CRANKCASE
420
GASKET OIL PAN TO CYLINDER CRANKCASE
420
GASKET , Replaced By: A4410140422
420
GASKET , Replaced By: A4410140022
438
SCREW COVER TO STEERING BOX, FOR L.H.D. UP TO CHASSIS 422483 FROM CHASSIS SEE SPARE PARTS LIST 814
438
SCREW BRACKET TO ENGINE
438
SCREW OIL PAN TO CYLINDER CRANKCASE M8X80,977282
438
SCREWTO 001 477 20 01,001 477 21 01
438
SCREW OIL PAN TO CYLINDER CRANKCASE M8X210
438
SCREW CONTROL ARM TO CENTRAL BEARING
438
SCREW CLAMP ON BRACKET
438
SCREW OIL PAN TO CYLINDER CRANKCASE M 8X210
438
SCREW OIL PAN TO CYLINDER CRANKCASE M8X16,977281
444
WASHER EXHAUST MUFFLER TO STRAP
462
SUCTION PIPE OIL PUMP
462
GUIDE TUBE BOTTOM
462
SUCTION PIPE OIL PUMP
462
SUCTION PIPE OIL SCAVENGING
468
WASHER SUCTION PIPE TO OIL PAN
474
SUCTION PIPE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4411800052
474
SUCTION PIPE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4211800552
474
SUCTION PIPE , Replaced By: A4021801952
474
SUCTION PIPE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4211800052
474
SUCTION PIPE , Replaced By: A4021801752
474
SUCTION PIPE OIL PUMP
474
SUCTION PIPE OIL PUMP
474
SUCTION PIPE OIL PUMP
474
SUCTION PIPE OIL PUMP
474
SUCTION PIPE OIL PUMP
504
GASKET
504
GASKET SUCTION PIPE TO OIL PUMP 36X58
510
SCREW PILLAR TO BRACKET AND TO FRONT PANEL
510
HEXAGON HEAD BOLT. SCREW ON STOP M 8X50
510
SCREW , Replaced By: N304017008030
528
SCREW , Replaced By: N304017008024
528
HEXAGON HEAD BOLT. SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
528
SCREW BRACKET TO EXHAUST PIPE BRACKET
534
CLAMP OIL-DIPSTICK GUIDE TUBE TO BRACKET
540
SCREW REDUCTION VALVE TO BRACKET
540
SCREW , Replaced By: A0079900801
546
SPACER TUBE SHAPED HOSE ON AIR INTAKE PIPE
546
SPACER SLEEVE. SPACER TUBE FAN SHROUD TO RADIATOR,4 1619994 428844
552
WASHER
558
NUT
564
BRACKET SUCTION PIPE TO CYLINDER CRANKCASE,402 135568
570
BRACKET
570
BRACKET , Replaced By: A4211860340, +001N000934008010, +001N007349008003
570
BRACKET , Replaced By: A4211800140
576
SCREW , Replaced By: A0069909301
576
SCREW , Replaced By: N304017008024
576
SCREW BRACKET TO APPARATUS SUPPORT
576
SCREW BRACKET TO EXHAUST PIPE BRACKET
582
SCREW BRACKET TO EXHAUST PIPE BRACKET
582
SCREW BRACKET TO APPARATUS SUPPORT
582
SCREW , Replaced By: A0069909301
582
SCREW , Replaced By: N304017008024
588
WASHER EXHAUST MUFFLER TO STRAP
588
WASHER
594
SPACER SLEEVE. SPACER TUBE FAN SHROUD TO RADIATOR,4 1619994 428844
594
SPACER TUBE SHAPED HOSE ON AIR INTAKE PIPE
600
WASHER
600
WASHER EXHAUST MUFFLER TO STRAP
606
NUT
606
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
606
NUT ENGINE MOUNTING M8
612
FITTING GUIDE TUBE TO OIL PAN
612
FITTING GUIDE TUBE TO OIL PAN
618
SEAL RING
624
CAP OIL PRESSURE RELIEF VALEE,899057
630
SCREW OIL PRESSURE RELIEF VALEE M 8X55,899057
999
THREADED INSERT
999
TUBE CONNECTION TO OIL PUMP, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
FITTING GUIDE TUBE TO OIL PAN,610235
999
FITTING OIL SCAVENGING
999
SPACER WASHER
999
STRAINER
999
BRACKET , 401-135569 421-000001 441-000001
999
OIL PAN
999
PLASTIC PIPE. HOSE (VACUUM LINE) FROM ENGINE TO BRAKE BOOSTER 440 MM
