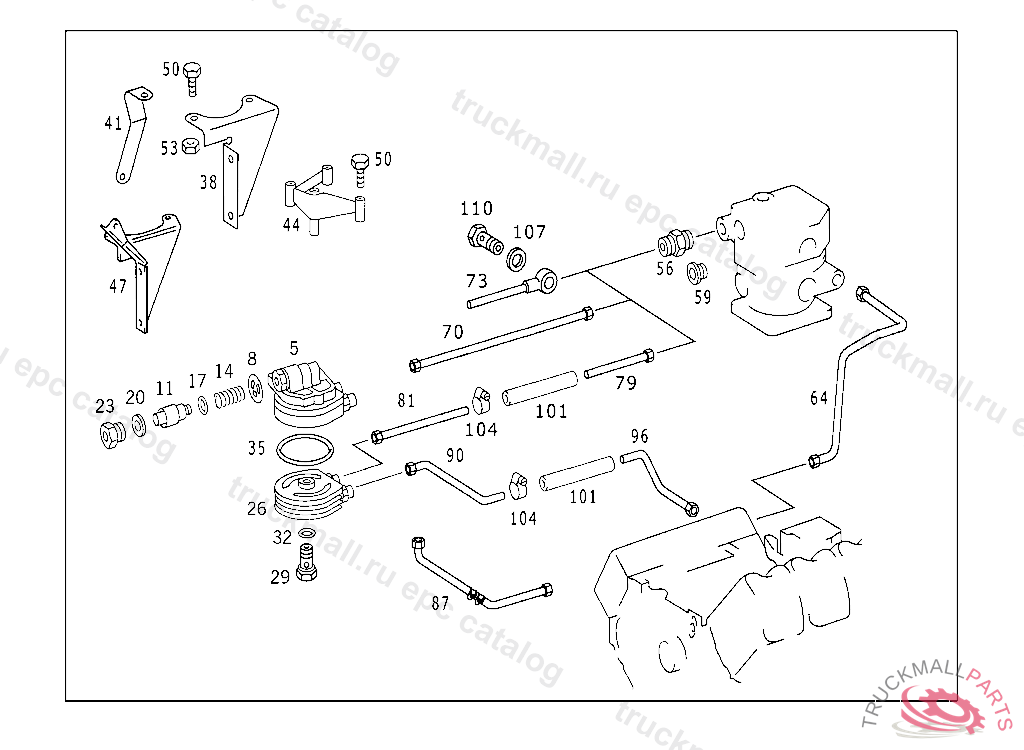

Поз.
Артикул
Описание
5
PREHEATER , Replaced By: A3660780017, +001A0000700079
5
PREHEATER , Replaced By: A3660700079
8
WASHER
11
THERMOSTAT
14
SPRING
17
WASHER
20
SEAL RING TO PLUG AIR COMPRESSOR CYLINDER HEAD TO 003 131 48 01
23
SCREW
26
HEAT EXCHANGER
29
HOLLOW SCREW
32
SEAL RING
35
SEAL RING
38
BRACKET PREHEATER
41
BRACKET PREHEATER
44
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0000700140
44
BRACKET PREHEATER TO TIMING CASE COVER
47
BRACKET PREHEATER
50
SCREW CLAMP ON BRACKET
50
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
50
HEXAGON HEAD BOLT. SCREW ON STOP M 8X50
50
HEXAGON HEAD BOLT. SCREW REAR EXHAUST PIPE TO MUFFLER M8 X 110 MM
50
SCREW ON STOP M 8X65
53
HEXAGON NUT. NUT , Replaced By: N913023008002
53
NUT ENGINE MOUNTING M8
56
ADAPTER FITTINGTO 376 131 74 01
59
SCREW PLUGTO 000 553 03 05,000 553 18 05,
64
LINE FROM CYLINDER CRANKCASE TO AIR COMPRESSOR
64
LINE FROM CYLINDER CRANKCASE TO AIR COMPRESSOR
70
LINE FROM VERTICAL AIR COMPRESSOR TO PREHEATER
70
LINE FROM AIR COMPRESSOR TO HEAT EXCHANGER
73
LINE FROM AIR COMPRESSOR TO HEAT EXCHANGER ON AIR COMPRESSOR
79
LINE FROM AIR COMPRESSOR TO HEAT EXCHANGER ON AIR COMPRESSOR
79
LINE FROM AIR COMPRESSOR TO HEAT EXCHANGER ON AIR COMPRESSOR
81
LINE FROM AIR COMPRESSOR TO HEAT EXCHANGER ON HEAT EXCHANGER
81
LINE FROM AIR COMPRESSOR TO HEAT EXCHANGER ON HEAT EXCHANGER
87
LINE FROM PREHEATER TO CYLINDER CRANKCASE
87
LINE (COOLING WATER LINE) FROM HEAT EXCHANGER TO CRANKCASE
90
LINE FROM HEAT EXCHANGER TO CRANKCASE ON HEAT EXCHANGER
90
LINE FROM HEAT EXCHANGER TO CRANKCASE ON HEAT EXCHANGER
90
LINE FROM HEAT EXCHANGER TO CRANKCASE ON HEAT EXCHANGER
96
LINE FROM HEAT EXCHANGER TO CRANKCASE ON CRANKCASE
96
LINE FROM HEAT EXCHANGER TO CRANKCASE ON CRANKCASE
96
LINE FROM HEAT EXCHANGER TO CRANKCASE ON CRANKCASE
101
HOSE COOLING WATER LINE TO AIR COMPRESSOR, ORDER BY THE METER
104
HOSE CLAMP LINE MOUNTING
107
SEAL RING INJECTION PUMP
110
HOLLOW SCREW AT FEED PUMP,VB112577
110
HOLLOW SCREW FUEL LINE TO FEED PUMP
999
HOUSING
999
CONNECTOR
999
LINE FROM FEED PUMP TO FILTER,643947
999
LINE , Replaced By: A4410708332
999
LINE AIR-COMPRESSOR-TO-CRANKCASE COOLING WATER RETURN LINE
999
LINE , Replaced By: A4412002252
999
LINE , Replaced By: A4412002352
999
LINE FROM CRANKCASE COOLING WATER INLET TO AIR COMPRESSOR, 972,973,977,978,979 650332
999
LINE , Replaced By: A4412002452
999
LINE , Replaced By: A4412002552
999
LINE AIR-COMPRESSOR-TO-CRANKCASE COOLING WATER RETURN LINE, 972,973,977,978,979 650333 984,986726519 977722582 972,973,975,976,978,979,980,981,985,987729092
999
LINE , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 726518, Replaced By: A4412003552
999
LINE , Replaced By: A4412002652
999
LINE , Replaced By: A4412002752
999
LINE AIR-COMPRESSOR-TO-CRANKCASE COOLING WATER RETURN LINE, 984,986726520 977722583 972,973,975,976,978,979,980,981,985,987729093
999
FILTER MULTI-STAGE FUEL FILTER
999
FILTER
999
FILTER HEADTO 442 090 03 52
999
FILTER HEADTO 442 090 04 52
999
LINE , Replaced By: A4422001353, +002N007603014106, +001N915036010108
999
LINE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4422003252
999
LINE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4422003352
999
LINE
999
LINE FROM CRANKCASE COOLING WATER INLET TO AIR COMPRESSOR
999
LINE , Replaced By: A4422008352
999
LINE FROM CRANKCASE COOLING WATER INLET TO AIR COMPRESSOR
999
WASHER , Replaced By: N000125008443
999
SPRING WASHER , Replaced By: N000137008212
999
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SCREW , Replaced By: N304017008021
999
NUT , Replaced By: N304032008006
999
SCREW FITTING FUEL LINE TO TANK
999
HOLLOW SCREW FEED AND RETURN
999
HOLLOW SCREW , Replaced By: N915036010108
999
CLAMP , Replaced By: A0059970190
