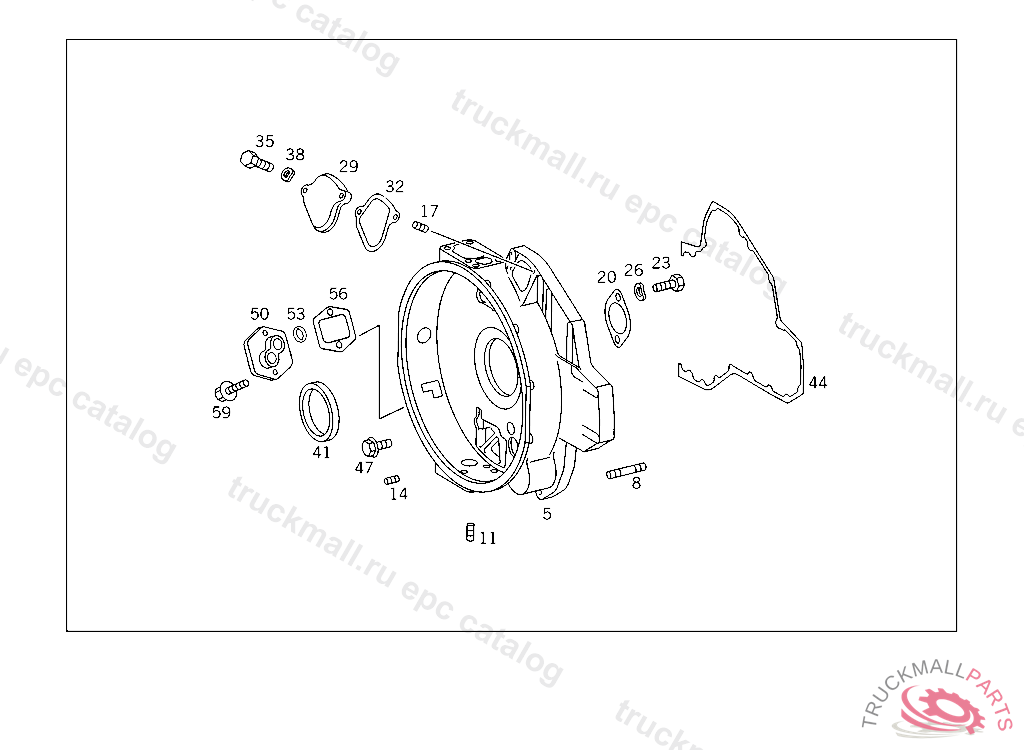

Поз.
Артикул
Описание
5
TIMING CASE ,000011
5
TIMING CASE
8
STUD STARTING MOTOR MOUNTING
11
THREADED INSERT
14
THREADED INSERT ,5 462573
17
THREADED INSERT
20
GUARD PLATE STARTING MOTOR MOUNTING
23
SCREW OIL SCAVENGING
26
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
26
SPRING WASHER , Replaced By: N000137008212
29
EXPANSION PLUG TIMING CASE LOCK
32
GASKET TIMING CASE LOCK
35
SCREW BRACKET TO CROSS CONNECTION STRUT
38
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
38
SPRING WASHER , Replaced By: N000137008212
41
SEAL RING
41
SEAL RING CRANKSHAFT SEALING,REAR,708527 I.D., 120MM
41
SEAL RING , Replaced By: A0139971447
44
GASKET TIMING CASE TO CYLINDER CRANKCASE
47
SCREW TIMING CASE TO CYLINDER CRANKCASE,259615
47
SCREW
50
BRACKET , Replaced By: A4421533940
50
BRACKET ,396842
53
SEAL RING
56
GASKET T.D.C. SENDER UNIT TO BRACKET,396842
59
SCREW CLAMP ON BRACKET
59
COMBINATION BOLT BRACKET TO TIMING CASE,062876
