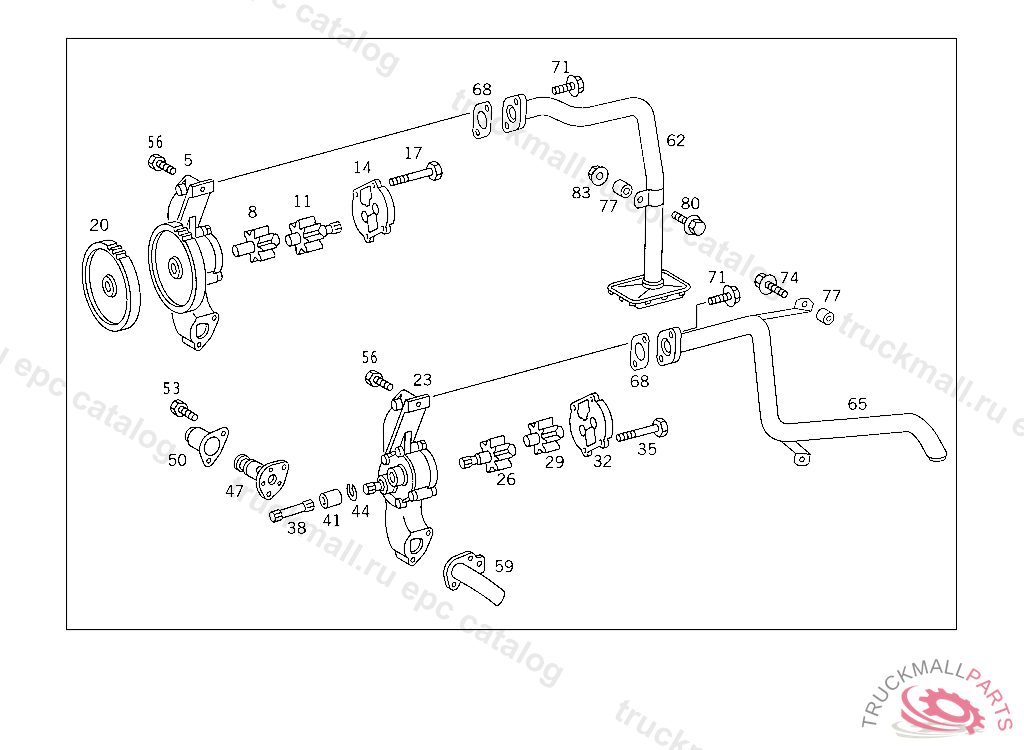

Поз.
Артикул
Описание
5
OIL PUMP WITH DRIVE GEAR,129661 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
GEAR TOOTH WIDTH,34 MM,NUMBER OF TEETH,7, DRIVING
11
GEAR DRIVEN,049188129660
14
COVER OIL PUMP
17
SCREW AT SHIFT LEVER M 8 X 45,P 234011
20
DRIVE GEAR OIL PUMP
23
OIL PUMP LESS DRIVE GEAR, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
26
GEAR DRIVEN,049188129660
29
GEAR TOOTH WIDTH,34 MM,NUMBER OF TEETH,7, DRIVEN
32
COVER OIL PUMP
35
SCREW AT SHIFT LEVER M 8 X 45,P 234011
38
INTERMEDIATE SHAFT BETWEEN THE OIL PUMPS
41
SLEEVE
44
SNAP RING
47
PRESSURE RELIEF VALVE
50
CAP OIL PRESSURE RELIEF VALEE,899057
53
SCREW OIL PRESSURE RELIEF VALEE M 8X55,899057
56
SCREW STRAP TO EXHAUST MUFFLER
59
OIL LINE OIL RETURN
62
SUCTION PIPE WITH SUCTION BASKET
65
SUCTION PIPE OIL RETURN,030352
68
GASKET SUCTION PIPE TO OIL PUMP 36X58
71
HEXAGON HEAD BOLT. SCREW ON STOP M 8X50
74
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
77
SPACER SLEEVE. SPACER TUBE FAN SHROUD TO RADIATOR,4 1619994 428844
80
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
83
NUT ENGINE MOUNTING M8
