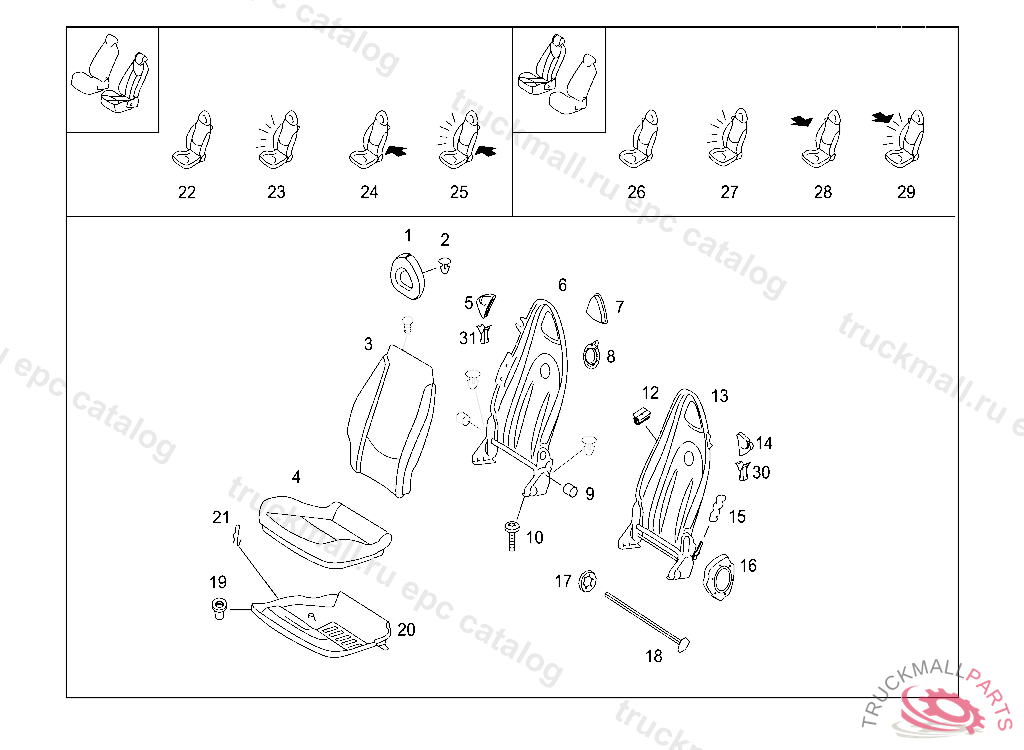

Поз.
Артикул
Описание
1
HEADREST PAD FABRIC MIKADO BOOGIE RED
1
HEADREST PAD
1
HEADREST PAD FABRIC MIKADO BLACK
1
HEADREST PAD LEATHER/ART. LEATHER BLACK
1
HEADREST PAD FABRIC SCODIC ANTHRACITE NON-MET.
2
MOUNTING CLIP CORRUGATED
2
FASTENING CLIP
2
MOUNTING CLIP CORRUGATED
3
BACKREST CUSHION SIDE AIR MATERIAL, MIKADO MAY GREY LEFT
3
BACKREST CUSHION FABRIC MIKADO BLACK
3
BACKREST CUSHION SIDE AIR MATERIAL, MIKADO BLACK LEFT
3
BACKREST CUSHION SIDE AIR
3
BACKREST CUSHION LEATHER/ART. LEATHER BLACK
3
BACKREST CUSHION FABRIC SCODIC ANTHRACITE NON-MET.
3
BACKREST CUSHION SIDE AIR MATERIAL, MIKADO BLACK RIGHT
3
BACKREST CUSHION SIDE AIR MATERIAL, MIKADO BOOGIE RED LEFT
3
BACKREST CUSHION HEATED FABRIC MIKADO BOOGIE RED
3
BACKREST CUSHION FABRIC MIKADO MAY GRAY
3
BACKREST CUSHION SIDE AIR
3
BACKREST CUSHION SIDE AIR MATERIAL, MIKADO BLACK RIGHT
3
BACKREST CUSHION SIDE AIR MATERIAL, MIKADO MAY GREY RIGHT
3
BACKREST CUSHION SIDE AIR MATERIAL, MIKADO MAY GREY LEFT
3
BACKREST CUSHION HEATED FABRIC MIKADO MAY GRAY
3
BACKREST CUSHION SIDE AIR BLACK LEATHER RIGHT
3
BACKREST CUSHION SIDE AIR
3
BACKREST CUSHION SIDE AIR BLACK LEATHER LEFT
3
BACKREST CUSHION
3
BACKREST CUSHION HEATED FABRIC MIKADO BLACK
3
BACKREST CUSHION SIDE AIR MATERIAL, MIKADO BLACK LEFT
3
BACKREST CUSHION SIDE AIR MATERIAL, MIKADO BOOGIE RED LEFT
3
BACKREST CUSHION SIDE AIR
3
BACKREST CUSHION SIDE AIR MATERIAL, MIKADO MAY GREY RIGHT
4
SEAT CUSHION FABRIC SCODIC ANTHRACITE NON-MET., Replaced By: Q0010087V002CB6A00
4
SEAT CUSHION HEATED FABRIC MIKADO MAY GRAY
4
SEAT CUSHION HEATED FABRIC MIKADO BOOGIE RED
4
SEAT CUSHION FABRIC MIKADO MAY GRAY
4
SEAT CUSHION FABRIC MIKADO BLACK
4
SEAT CUSHION FABRIC MIKADO BOOGIE RED
4
SEAT CUSHION HEATED FABRIC MIKADO BLACK
4
SEAT CUSHION LEATHER/ART. LEATHER BLACK
4
SEAT CUSHION FABRIC SCODIC ANTHRACITE NON-MET.
5
BELT GUIDE SEAT FRONT PAS
6
BACKREST FRAME SEAT FRONT SILVER METAL
6
BACKREST FRAME SEAT FRONT SILVER METAL
6
BACKREST FRAME SEAT FRONT SILVER METAL
6
BACKREST FRAME SEAT FRONT SILVER METAL
6
BACKREST FRAME SEAT FRONT SILVER METAL
6
BACKREST FRAME SEAT FRONT SILVER METAL
6
BACKREST FRAME SEAT FRONT SILVER METAL
6
BACKREST FRAME SEAT FRONT SILVER METAL
7
PANEL HEADREST
8
PANEL BACKREST
9
DAMPER RING BACKREST STOP
10
SCREW FEMALE TORX M5 X 25 RAIL TO CONSOLE
12
CLEARANCE REDUCTION CLIP
13
BACKREST FRAME SEAT FRONT SILVER METAL
13
BACKREST FRAME SEAT FRONT SILVER METAL
13
BACKREST FRAME SEAT FRONT SILVER METAL
13
BACKREST FRAME SEAT FRONT SILVER METAL, Replaced By: Q0013054V002C83L00
13
BACKREST FRAME SEAT FRONT SILVER METAL, Replaced By: Q0013055V002C83L00
13
BACKREST FRAME SEAT FRONT SILVER METAL, Replaced By: Q0013126V002C83L00
13
BACKREST FRAME SEAT FRONT SILVER METAL, Replaced By: Q0013127V002C83L00
13
BACKREST FRAME SEAT FRONT SILVER METAL
14
BELT GUIDE SEAT FRONT PAS
15
HANDLE RELEASE
16
HANDWHEEL SEAT DRIVER'S S
17
RETAINING RING SEAT
18
LINK
19
FLANGE NUT DIN 6927 M8 -1
20
SEAT SHELL
21
CLIP SAB LINE MOUNTING ST
22
SEAT DRIVER S SIDE SEAT MIKADO BLACK/SILVER MET.
22
SEAT DRIVER S SIDE SEAT SCODIC ANTHRACITE/SILVER MET.
22
SEAT DRIVER S SIDE SEAT MIKADO BOOGIE RED/SILVER MET.
22
SEAT FRONT PASSENGER S SI SEAT MIKADO BOOGIE RED/SILVER MET.
22
SEAT FRONT PASSENGER S SI SEAT SCODIC ANTHRACITE/SILVER MET.
22
SEAT FRONT PASSENGER S SI SEAT MIKADO BLACK/SILVER MET.
22
SEAT DRIVER S SIDE SEAT MIKADO MAY GRAY/SILVER MET.
22
SEAT FRONT PASSENGER S SI SEAT MIKADO MAY GRAY/SILVER MET.
22
SEAT DRIVER S SIDE SEAT SCODIC ANTHRACITE/SILVER MET., Replaced By: Q0008322V004C07W00
22
SEAT DRIVER S SIDE SEAT SCODIC ANTHRACITE/SILVER MET., Replaced By: Q0008322V005C07W00
22
SEAT FRONT PASSENGER S SI SEAT SCODIC ANTHRACITE/SILVER MET., Replaced By: Q0011276V004C07W00
22
SEAT FRONT PASSENGER S SI SEAT SCODIC ANTHRACITE/SILVER MET., Replaced By: Q0011276V005C07W00
22
SEAT DRIVER S SIDE SEAT MIKADO BOOGIE RED/SILVER MET., Replaced By: Q0012863V004C08W00
22
SEAT DRIVER S SIDE SEAT MIKADO MAY GRAY/SILVER MET., Replaced By: Q0012863V004C10W00
22
SEAT DRIVER S SIDE SEAT MIKADO BLACK/SILVER MET., Replaced By: Q0012863V004C12W00
22
SEAT FRONT PASSENGER S SI SEAT MIKADO BOOGIE RED/SILVER MET., Replaced By: Q0012878V004C08W00
22
SEAT FRONT PASSENGER S SI SEAT MIKADO MAY GRAY/SILVER MET., Replaced By: Q0012878V004C10W00
22
SEAT FRONT PASSENGER S SI SEAT MIKADO BLACK/SILVER MET., Replaced By: Q0012878V004C12W00
23
SEAT DRIVER S SIDE SEAT MIKADO BOOGIE RED/SILVER MET., Replaced By: Q0012815V004C08W00
23
SEAT DRIVER S SIDE SEAT MIKADO MAY GRAY/SILVER MET., Replaced By: Q0012815V004C10W00
23
SEAT DRIVER S SIDE SEAT MIKADO BLACK/SILVER MET., Replaced By: Q0012815V004C12W00
23
SEAT FRONT PASSENGER S SI SEAT MIKADO BOOGIE RED/SILVER MET., Replaced By: Q0012829V004C08W00
23
SEAT FRONT PASSENGER S SI SEAT MIKADO MAY GRAY/SILVER MET., Replaced By: Q0012829V004C10W00
23
SEAT FRONT PASSENGER S SI SEAT MIKADO BLACK/SILVER MET., Replaced By: Q0012829V004C12W00
23
SEAT DRIVER S SIDE SEAT LEATHER/ART. LEATHER BLACK/SILVER METAL, Replaced By: Q0013173V004C17W00
23
SEAT FRONT PASSENGER S SI SEAT LEATHER/ART. LEATHER BLACK/SILVER METAL, Replaced By: Q0013187V004C17W00
23
SEAT DRIVER S SIDE SEAT MIKADO BOOGIE RED/SILVER MET.
23
SEAT DRIVER S SIDE SEAT MIKADO MAY GRAY/SILVER MET.
23
SEAT FRONT PASSENGER S SI SEAT MIKADO BLACK/SILVER MET.
23
SEAT FRONT PASSENGER S SI SEAT MIKADO MAY GRAY/SILVER MET.
23
SEAT FRONT PASSENGER S SI SEAT MIKADO BOOGIE RED/SILVER MET.
23
SEAT DRIVER S SIDE SEAT MIKADO BLACK/SILVER MET.
23
SEAT FRONT PASSENGER S SI SEAT LEATHER/ART. LEATHER BLACK/SILVER METAL
23
SEAT DRIVER S SIDE SEAT LEATHER/ART. LEATHER BLACK/SILVER METAL
24
SEAT FRONT PASSENGER S SI SEAT MIKADO MAY GRAY/SILVER MET.
24
SEAT DRIVER S SIDE SEAT SCODIC ANTHRACITE/SILVER MET.
24
SEAT DRIVER S SIDE SEAT MIKADO BLACK/SILVER MET.
24
SEAT DRIVER S SIDE SEAT MIKADO BOOGIE RED/SILVER MET.
24
SEAT FRONT PASSENGER S SI SEAT SCODIC ANTHRACITE/SILVER MET.
24
SEAT FRONT PASSENGER S SI SEAT MIKADO BOOGIE RED/SILVER MET.
24
SEAT FRONT PASSENGER S SI SEAT MIKADO BLACK/SILVER MET.
24
SEAT DRIVER S SIDE SEAT MIKADO MAY GRAY/SILVER MET.
24
SEAT DRIVER S SIDE SEAT SCODIC ANTHRACITE/SILVER MET., Replaced By: Q0009881V004C07W00
24
SEAT DRIVER S SIDE SEAT SCODIC ANTHRACITE/SILVER MET., Replaced By: Q0009881V005C07W00
24
SEAT FRONT PASSENGER S SI SEAT SCODIC ANTHRACITE/SILVER MET., Replaced By: Q0011278V004C07W00
24
SEAT FRONT PASSENGER S SI SEAT SCODIC ANTHRACITE/SILVER MET., Replaced By: Q0011278V005C07W00
24
SEAT DRIVER S SIDE SEAT MIKADO BOOGIE RED/SILVER MET., Replaced By: Q0012864V004C08W00
24
SEAT DRIVER S SIDE SEAT MIKADO MAY GRAY/SILVER MET., Replaced By: Q0012864V004C10W00
24
SEAT DRIVER S SIDE SEAT MIKADO BLACK/SILVER MET., Replaced By: Q0012864V004C12W00
24
SEAT FRONT PASSENGER S SI SEAT MIKADO BOOGIE RED/SILVER MET., Replaced By: Q0012879V004C08W00
24
SEAT FRONT PASSENGER S SI SEAT MIKADO MAY GRAY/SILVER MET., Replaced By: Q0012879V004C10W00
24
SEAT FRONT PASSENGER S SI SEAT MIKADO BLACK/SILVER MET., Replaced By: Q0012879V004C12W00
25
SEAT DRIVER S SIDE SEAT MIKADO BOOGIE RED/SILVER MET., Replaced By: Q0012816V004C08W00
25
SEAT DRIVER S SIDE SEAT MIKADO MAY GRAY/SILVER MET., Replaced By: Q0012816V004C10W00
25
SEAT DRIVER S SIDE SEAT MIKADO BLACK/SILVER MET., Replaced By: Q0012816V004C12W00
25
SEAT FRONT PASSENGER S SI SEAT MIKADO BOOGIE RED/SILVER MET., Replaced By: Q0012830V004C08W00
25
SEAT FRONT PASSENGER S SI SEAT MIKADO MAY GRAY/SILVER MET., Replaced By: Q0012830V004C10W00
25
SEAT FRONT PASSENGER S SI SEAT MIKADO BLACK/SILVER MET., Replaced By: Q0012830V004C12W00
25
SEAT DRIVER S SIDE SEAT LEATHER/ART. LEATHER BLACK/SILVER METAL, Replaced By: Q0013174V004C17W00
25
SEAT FRONT PASSENGER S SI SEAT LEATHER/ART. LEATHER BLACK/SILVER METAL, Replaced By: Q0013188V004C17W00
25
SEAT DRIVER S SIDE SEAT LEATHER/ART. LEATHER BLACK/SILVER METAL
25
SEAT DRIVER S SIDE SEAT MIKADO MAY GRAY/SILVER MET.
25
SEAT FRONT PASSENGER S SI SEAT MIKADO BOOGIE RED/SILVER MET.
25
SEAT DRIVER S SIDE SEAT MIKADO BLACK/SILVER MET.
25
SEAT FRONT PASSENGER S SI SEAT LEATHER/ART. LEATHER BLACK/SILVER METAL
25
SEAT FRONT PASSENGER S SI SEAT MIKADO MAY GRAY/SILVER MET.
25
SEAT FRONT PASSENGER S SI SEAT MIKADO BLACK/SILVER MET.
25
SEAT DRIVER S SIDE SEAT MIKADO BOOGIE RED/SILVER MET.
26
SEAT DRIVER S SIDE SEAT SCODIC ANTHRACITE/SILVER MET.
26
SEAT DRIVER S SIDE SEAT MIKADO BLACK/SILVER MET.
26
SEAT DRIVER S SIDE SEAT MIKADO MAY GRAY/SILVER MET.
26
SEAT DRIVER S SIDE SEAT SCODIC ANTHRACITE/SILVER MET.
26
SEAT FRONT PASSENGER S SI SEAT MIKADO BOOGIE RED/SILVER MET.
26
SEAT FRONT PASSENGER S SI SEAT MIKADO BLACK/SILVER MET.
26
SEAT DRIVER S SIDE SEAT MIKADO BOOGIE RED/SILVER MET.
26
SEAT FRONT PASSENGER S SI SEAT SCODIC ANTHRACITE/SILVER MET.
26
SEAT DRIVER S SIDE SEAT MIKADO MAY GRAY/SILVER MET.
26
SEAT FRONT PASSENGER S SI SEAT MIKADO MAY GRAY/SILVER MET.
26
SEAT DRIVER S SIDE SEAT MIKADO BOOGIE RED/SILVER MET.
26
SEAT DRIVER S SIDE SEAT MIKADO BLACK/SILVER MET.
26
SEAT FRONT PASSENGER S SI SEAT SCODIC ANTHRACITE/SILVER MET., Replaced By: Q0008326V004C07W00
26
SEAT FRONT PASSENGER S SI SEAT SCODIC ANTHRACITE/SILVER MET., Replaced By: Q0008326V005C07W00
26
SEAT DRIVER S SIDE SEAT SCODIC ANTHRACITE/SILVER MET., Replaced By: Q0011272V004C07W00
26
SEAT DRIVER S SIDE SEAT SCODIC ANTHRACITE/SILVER MET., Replaced By: Q0011272V005C07W00
26
SEAT DRIVER S SIDE SEAT MIKADO BOOGIE RED/SILVER MET., Replaced By: Q0012825V004C08W00
26
SEAT DRIVER S SIDE SEAT MIKADO MAY GRAY/SILVER MET., Replaced By: Q0012825V004C10W00
26
SEAT DRIVER S SIDE SEAT MIKADO BLACK/SILVER MET., Replaced By: Q0012825V004C12W00
26
SEAT DRIVER S SIDE SEAT MIKADO BOOGIE RED/SILVER MET., Replaced By: Q0012867V004C08W00
26
SEAT DRIVER S SIDE SEAT MIKADO MAY GRAY/SILVER MET., Replaced By: Q0012867V004C10W00
26
SEAT DRIVER S SIDE SEAT MIKADO BLACK/SILVER MET., Replaced By: Q0012867V004C12W00
26
SEAT DRIVER S SIDE SEAT SCODIC ANTHRACITE/SILVER MET., Replaced By: Q0012870V004C07W00
26
SEAT DRIVER S SIDE SEAT SCODIC ANTHRACITE/SILVER MET., Replaced By: Q0012870V005C07W00
26
SEAT FRONT PASSENGER S SI SEAT MIKADO BOOGIE RED/SILVER MET., Replaced By: Q0012874V004C08W00
26
SEAT FRONT PASSENGER S SI SEAT MIKADO MAY GRAY/SILVER MET., Replaced By: Q0012874V004C10W00
26
SEAT FRONT PASSENGER S SI SEAT MIKADO BLACK/SILVER MET., Replaced By: Q0012874V004C12W00
27
SEAT FRONT PASSENGER S SI SEAT MIKADO BOOGIE RED/SILVER MET., Replaced By: Q0012809V004C08W00
27
SEAT FRONT PASSENGER S SI SEAT MIKADO MAY GRAY/SILVER MET., Replaced By: Q0012809V004C10W00
27
SEAT FRONT PASSENGER S SI SEAT MIKADO BLACK/SILVER MET., Replaced By: Q0012809V004C12W00
27
SEAT DRIVER S SIDE SEAT MIKADO BOOGIE RED/SILVER MET., Replaced By: Q0012820V004C08W00
27
SEAT DRIVER S SIDE SEAT MIKADO MAY GRAY/SILVER MET., Replaced By: Q0012820V004C10W00
27
SEAT DRIVER S SIDE SEAT MIKADO BLACK/SILVER MET., Replaced By: Q0012820V004C12W00
27
SEAT DRIVER S SIDE SEAT MIKADO BOOGIE RED/SILVER MET., Replaced By: Q0012821V004C08W00
27
SEAT DRIVER S SIDE SEAT MIKADO MAY GRAY/SILVER MET., Replaced By: Q0012821V004C10W00
27
SEAT DRIVER S SIDE SEAT MIKADO BLACK/SILVER MET., Replaced By: Q0012821V004C12W00
27
SEAT DRIVER S SIDE SEAT MIKADO BOOGIE RED/SILVER MET., Replaced By: Q0012824V004C08W00
27
SEAT DRIVER S SIDE SEAT MIKADO MAY GRAY/SILVER MET., Replaced By: Q0012824V004C10W00
27
SEAT DRIVER S SIDE SEAT MIKADO BLACK/SILVER MET., Replaced By: Q0012824V004C12W00
27
SEAT DRIVER S SIDE SEAT LEATHER/ART. LEATHER BLACK/SILVER METAL, Replaced By: Q0013175V004C17W00
27
SEAT DRIVER S SIDE SEAT LEATHER/ART. LEATHER BLACK/SILVER METAL, Replaced By: Q0013177V004C17W00
27
SEAT DRIVER S SIDE SEAT LEATHER/ART. LEATHER BLACK/SILVER METAL, Replaced By: Q0013178V004C17W00
27
SEAT FRONT PASSENGER S SI SEAT LEATHER/ART. LEATHER BLACK/SILVER METAL, Replaced By: Q0013185V004C17W00
27
SEAT DRIVER S SIDE SEAT MIKADO MAY GRAY/SILVER MET.
27
SEAT DRIVER S SIDE SEAT MIKADO BLACK/SILVER MET.
27
SEAT DRIVER S SIDE SEAT MIKADO BOOGIE RED/SILVER MET.
27
SEAT DRIVER S SIDE SEAT MIKADO BOOGIE RED/SILVER MET.
27
SEAT FRONT PASSENGER S SI SEAT MIKADO BLACK/SILVER MET.
27
SEAT FRONT PASSENGER S SI SEAT MIKADO MAY GRAY/SILVER MET.
27
SEAT DRIVER S SIDE SEAT LEATHER/ART. LEATHER BLACK/SILVER METAL
27
SEAT FRONT PASSENGER S SI SEAT LEATHER/ART. LEATHER BLACK/SILVER METAL
27
SEAT DRIVER S SIDE SEAT MIKADO BLACK/SILVER MET.
27
SEAT FRONT PASSENGER S SI SEAT MIKADO BOOGIE RED/SILVER MET.
27
SEAT DRIVER S SIDE SEAT LEATHER/ART. LEATHER BLACK/SILVER METAL
27
SEAT DRIVER S SIDE SEAT MIKADO BLACK/SILVER MET.
27
SEAT DRIVER S SIDE SEAT MIKADO MAY GRAY/SILVER MET.
27
SEAT DRIVER S SIDE SEAT MIKADO MAY GRAY/SILVER MET.
27
SEAT DRIVER S SIDE SEAT LEATHER/ART. LEATHER BLACK/SILVER METAL
27
SEAT DRIVER S SIDE SEAT MIKADO BOOGIE RED/SILVER MET.
28
SEAT FRONT PASSENGER S SI SEAT MIKADO MAY GRAY/SILVER MET.
28
SEAT FRONT PASSENGER S SI SEAT MIKADO BLACK/SILVER MET.
