Поз.
Артикул
Описание

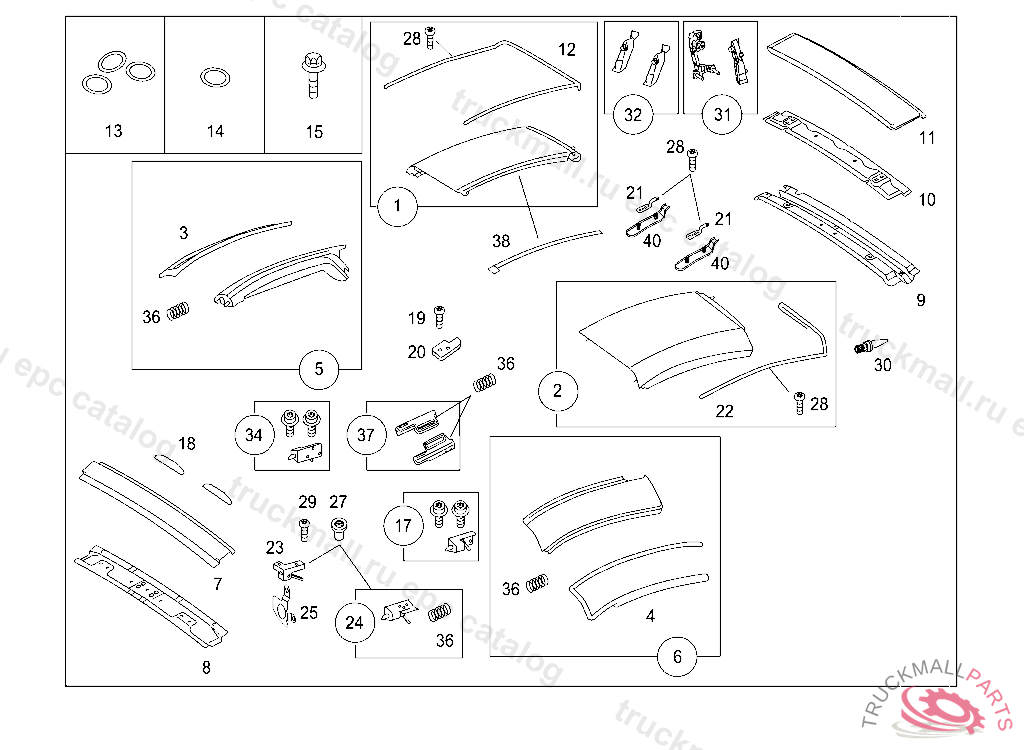

1
HARD TOP SHELL GRAINED RH RIGHT,DULL SURFACE
1
HARD TOP SHELL CLASS A RH , NO LONGER AVAILABLE
1
HARD TOP SHELL GRAINED RH , L 02714420040209, Replaced By: Q0014982V002000000
1
HARD TOP SHELL GRAINED RH RIGHT,DULL SURFACE, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. L 02714420040209, Replaced By: Q0014982V003000000
1
HARD TOP SHELL GRAINED RH RIGHT,DULL SURFACE, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. L 04013520050117, Replaced By: Q0014982V004000000
2
HARD TOP SHELL GRAINED RH , L 02714420040209, Replaced By: Q0014981V002000000
2
HARD TOP SHELL GRAINED RH LEFT,DULL SURFACE, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. L 02714420040209, Replaced By: Q0014981V003000000
2
HARD TOP SHELL GRAINED RH LEFT,DULL SURFACE, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. L 04013520050117, Replaced By: Q0014981V004000000
2
HARD TOP SHELL CLASS A RH , NO LONGER AVAILABLE, Replaced By: Q0014984V002000000
2
HARD TOP SHELL GRAINED RH LEFT,DULL SURFACE
2
HARD TOP SHELL CLASS A RH LEFT, NO LONGER AVAILABLE
3
SEAL SIDE LONGITUDINAL ME RIGHT, L 04013520050117
3
SEAL SIDE LONGITUDINAL ME RIGHT, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. L 02966920040316, Replaced By: Q0009358V006000000
3
SEAL SIDE LONGITUDINAL ME RIGHT, L 04013620050117
4
SEAL SIDE LONGITUDINAL ME LEFT, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. L 02966920040316, Replaced By: Q0009357V006000000
4
SEAL SIDE LONGITUDINAL ME LEFT, L 04013520050117
4
SEAL SIDE LONGITUDINAL ME LEFT, L 04013620050117
5
SIDE LONGITUDINAL MEMBER BLACK RIGHT, L 04013520050117
5
SIDE LONGITUDINAL MEMBER BLACK RIGHT, L 04013620050117
5
SIDE LONGITUDINAL MEMBER BLACK RIGHT, L 04013620050117 FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 20050314, Replaced By: Q0009337V010C46L00
5
SIDE LONGITUDINAL MEMBER BLACK RIGHT, L 04013620050117, Replaced By: Q0009337V011C46L00
6
SIDE LONGITUDINAL MEMBER BLACK LEFT, L 04013620050117 FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 20050314, Replaced By: Q0009336V010C46L00
6
SIDE LONGITUDINAL MEMBER BLACK LEFT, L 04013620050117, Replaced By: Q0009336V011C46L00
6
SIDE LONGITUDINAL MEMBER BLACK LEFT, L 04013520050117
6
SIDE LONGITUDINAL MEMBER BLACK LEFT, L 04013620050117
7
ROOF FRAME FRONT OUTER
8
ROOF FRAME FRONT INNER CO
11
ROLL BAR
11
ROLL BAR , L 03886220040831, Replaced By: Q0014363V002000000
11
ROLL BAR , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. L 03886220040831, Replaced By: Q0014363V003000000
12
SEAL ROOF SHELL LH RIGHT, L 02484520040105, Replaced By: Q0009360V005000000
12
SEAL ROOF SHELL LH RIGHT, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. L 02484520040105, Replaced By: Q0009360V006000000
12
SEAL ROOF SHELL LH RIGHT, L 04013620050117
12
SEAL ROOF SHELL LH RIGHT, L 04013520050117
13
O-RING SET
14
O-RING 4.5X1.8
15
TORX INSTRUMENT CLUSTER S
15
TORX INSTRUMENT CLUSTER S , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. L 01746720030919, Replaced By: Q0016335V000000000
17
CATCH SIDE LONGITUDINAL M , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. L 01699820030917, Replaced By: Q0014831V002000000
17
CATCH SIDE LONGITUDINAL M LEFT
18
DIFFUSER
18
DEFLECTOR , C22AQFT452L0002 BLACK MMC:BLACK
19
TORX INSTRUMENT CLUSTER S , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. L 01746720030919, Replaced By: Q0016335V000000000
19
TORX INSTRUMENT CLUSTER S
20
LOCKING TAB
20
BASEPLATE FRONT , Replaced By: Q0011777V004000000
20
LOCKING TAB , Replaced By: Q0011863V002000000
20
BASEPLATE FRONT
21
LOCATOR CENTRE
22
SEAL ROOF SHELL LH LEFT, L 04013520050117
22
SEAL ROOF SHELL LH LEFT, L 04013620050117
22
SEAL ROOF SHELL LH LEFT, L 04013520050117, Replaced By: Q0009359V005000000
22
SEAL ROOF SHELL LH LEFT, L 04013520050117, Replaced By: Q0009359V006000000
23
CATCH FRONT CENTRE
24
CATCH OUTER LH LEFT
24
CATCH OUTER RH RIGHT
24
CATCH OUTER LH LEFT, Replaced By: Q0009430V004000000
24
CATCH OUTER RH RIGHT, Replaced By: Q0009432V004000000
25
SHACKLE LH LEFT
25
SHACKLE RH RIGHT
27
SLEEVE NUT M6
28
EJOT BOLT K 60X15
29
EJOT BOLT K 60X15
30
LOCATING PIN
30
LOCATING PIN , Replaced By: Q0009431V002000000
31
LONGITUDINAL MEMBER MOUNT , Replaced By: Q0014978V002000000
31
LONGITUDINAL MEMBER MOUNT
32
COVER LONGITUDINAL MEMBER
34
CATCH SIDE LONGITUDINAL M , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. L 01699820030917, Replaced By: Q0014832V002000000
34
CATCH SIDE LONGITUDINAL M RIGHT
36
SPRING
37
RETRACTING STRIP
38
JOINT COVER PROFILE Y0 , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. L 02714420040209, Replaced By: Q0016842V002000000
38
JOINT COVER PROFILE Y0 , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 20050301, Replaced By: Q0016842V003000000
38
JOINT COVER PROFILE Y0
40
COVER
