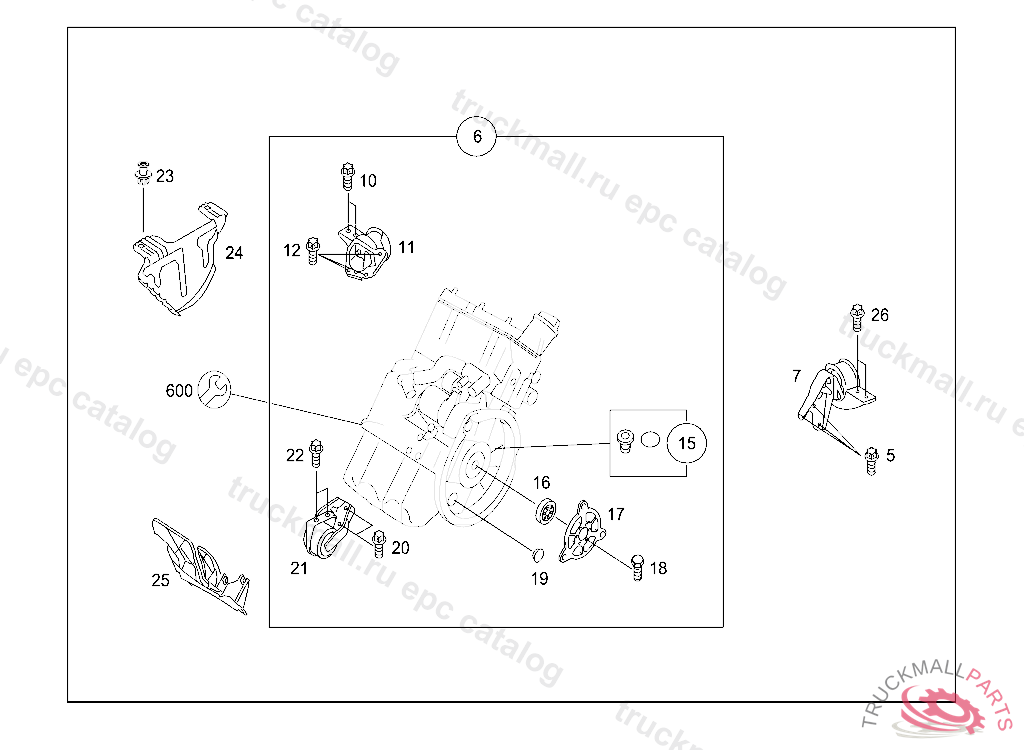

Поз.
Артикул
Описание
5
TORX SCREW M6 X 20 - 8.8 ENGINE SUPPORT AT CYLINDER HEAD M8 X 24 - 10.9 E12,M8 X 24
6
ENGINE LONG BLOCK ENGINE WITHOUT DETACHABLE PARTS, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
7
ENGINE MOUNT REAR RH REAR RIGHT
10
TORX SCREW M6 X 20 - 8.8 ENGINE LEFT REAR MOUNTING M10 X 25 - 10.9 E14,M10 X 25
11
ENGINE MOUNT REAR LH LEFT
12
TORX SCREW M6 X 20 - 8.8 ENGINE SUPPORT AT CYLINDER HEAD M8 X 24 - 10.9 E12,M8 X 24
15
SCREW PLUG M18 X 1.5 CRANKCASE M18 X 1.5
15
SCREW PLUG
16
ROTARY SHAFT SEAL RADIAL SEAL RING
17
DRIVE PLATE REINFORCED H.D. VERSION
17
CLUTCH DISC FOLLOWER DISC TO CRANKSHAFT
18
BOLTM10 X 1 X 17 - 10.9
19
COVER COVER TO BELL HOUSING
20
TORX SCREW M6 X 20 - 8.8 ENGINE SUPPORT AT CYLINDER HEAD M8 X 24 - 10.9 E12,M8 X 24
21
ENGINE MOUNT FRONT
22
TORX SCREW M6 X 20 - 8.8 ENGINE LEFT REAR MOUNTING M10 X 25 - 10.9 E14,M10 X 25
23
EXPANSION RIVET AT COVERING
23
EXPANSION RIVET
24
BELT SPLASH GUARD SPLASH GUARD
25
ALTERNATOR COVER
26
TORX SCREW M6 X 20 - 8.8 ENGINE LEFT REAR MOUNTING M10 X 25 - 10.9 E14,M10 X 25
600
ENGINE SERVICE (REPAIR KIT), A 003 989 98 20 10 IS ALSO REQUIRED
