Поз.
Артикул
Описание

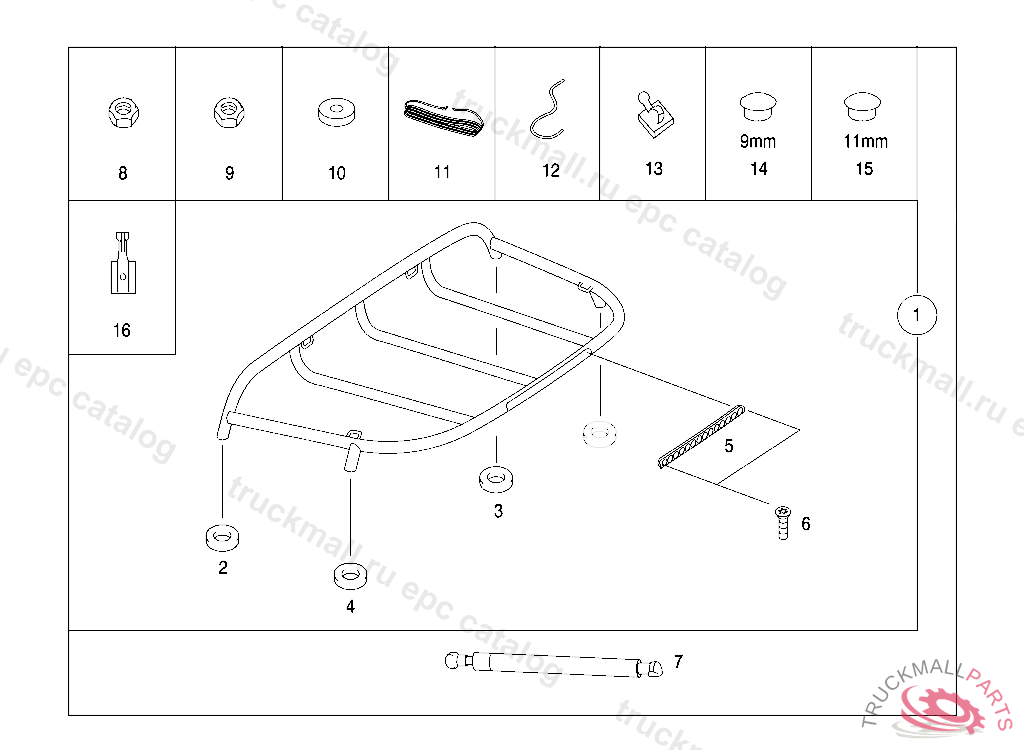

1
REAR LUGGAGE RACK
1
REAR LUGGAGE RACK , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 20050701, Replaced By: Q0012000V003000000
1
REAR LUGGAGE RACK , 20050701, Replaced By: Q0012000V002000000
2
WEDGE-SHAPED WASHER FRONT
3
WEDGE-SHAPED WASHER FRONT
4
WEDGE-SHAPED WASHER FRONT
5
BRAKE LAMP
5
BRAKE LAMP , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 20050701, Replaced By: Q0015276V002000000
6
C/S SCREW M5X8.5 TORX25
7
GAS-OPERATED STRUT
7
GAS-OPERATED STRUT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 20060101, Replaced By: Q0015280V002000000
8
HEX NUT
9
HEX NUT
10
RUBBER SUPPORT
11
TIGHTENING BELT
12
CORRUGATED TUBE
13
ADHESIVE CLIP
14
DUMMY PLUG 9 MM
15
DUMMY PLUG 11 MM
16
BLADE RECEPTACLE HOUSING
