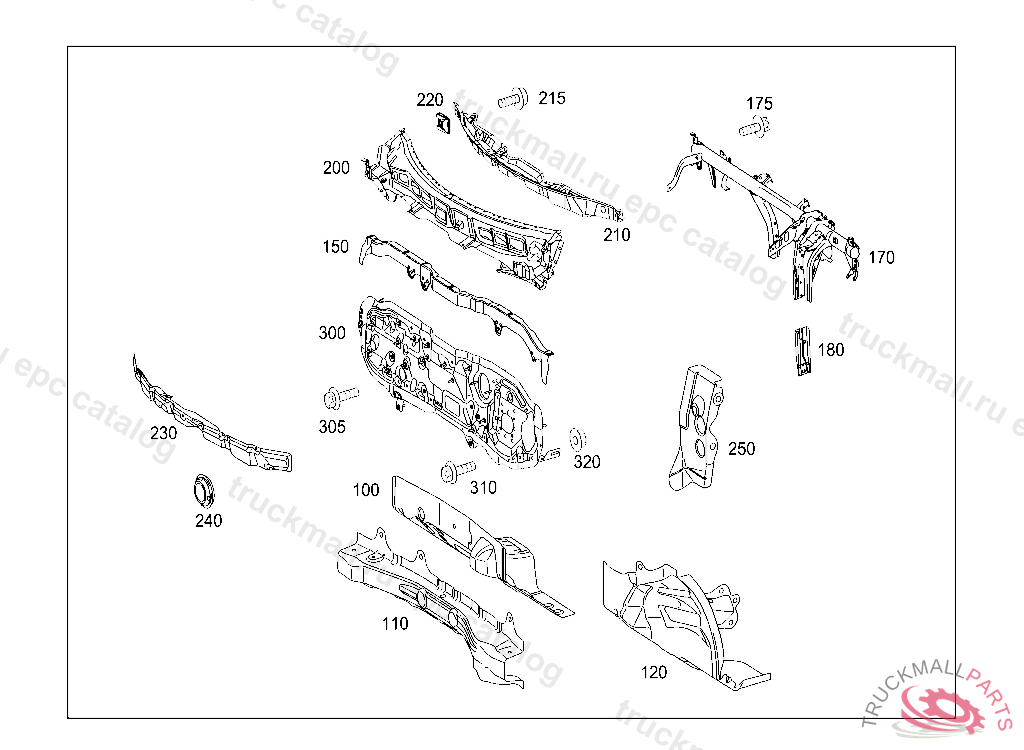

Поз.
Артикул
Описание
100
FIREWALL LOWER PART
100
FIREWALL LOWER PART
110
CROSS MEMBER AT FIRE WALL
110
CROSS MEMBER AT FIRE WALL
120
WHEELHOUSE PANEL FIREWALL BOTTOM LEFT
120
WHEELHOUSE PANEL FIREWALL BOTTOM RIGHT
150
FIREWALL UPPER PART
150
FIREWALL UPPER PART
170
CROSS MEMBER BETWEEN FRONT PANEL & INSTRUMENT PANEL TOP
170
CROSS MEMBER BETWEEN FRONT PANEL & INSTRUMENT PANEL TOP
170
CROSS MEMBER BETWEEN FRONT PANEL & INSTRUMENT PANEL TOP
170
CROSS MEMBER BETWEEN FRONT PANEL & INSTRUMENT PANEL TOP
175
BOLT FIRE WALL,CENTER
180
BRACKET CROSS MEMBER TO TUNNEL
200
FIREWALL UPPER PART, TOP
200
FIREWALL UPPER PART, TOP
210
CROSS MEMBER AT FIRE WALL, TOP
215
SCREW PUMP TO BRACKET
215
SCREW-AND-WASHER ASSEMBLY SERVICE FLAP M6X20
220
SPRING CLAMP CROSS MEMBER TO FIRE WALL
230
INSULATION MAT AT CROSS MEMBER FIRE WALL
240
STOP PLUG E-RECESS CENTER 30 MM
250
REINFORCEMENT INSIDE, RIGHT
250
REINFORCEMENT INTERIOR, LEFT
300
FIREWALL CENTRAL PART
300
FIREWALL CENTRAL PART
300
FIREWALL CENTRAL PART
300
FIREWALL CENTRAL PART
305
HEXALOBULAR BOLTM8X20
310
BOLT FIRE WALL,CENTER
320
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
