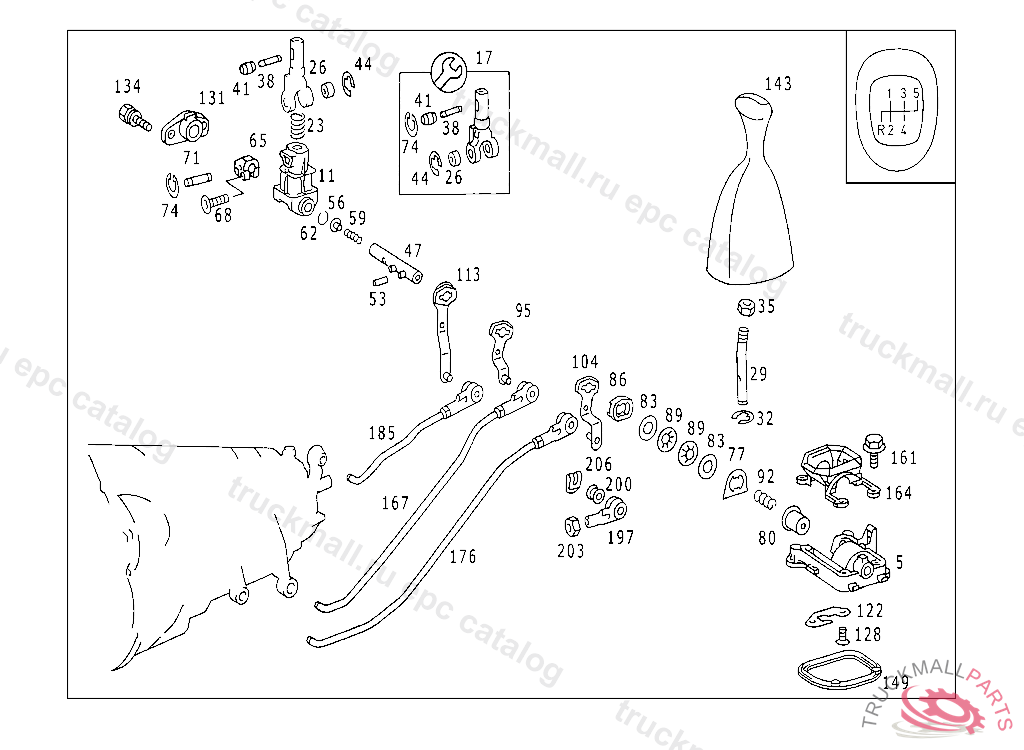

Поз.
Артикул
Описание
5
BEARING BRACKET ,B 236460
11
SUPPORT
17
REPAIR KIT SHIFT LEVER
17
REPAIR KIT SHIFT LEVER, C 051570 ALSO INSTALLED IN C 049998,C 050114,C 050142,C 050155,C 050159,C 050192,C 050264,C 050311,C 050426,C 050475,C 050501,C 050513,C 050535,C 050566, C 050608,C 050637,C 050648,C 050750,C 050761,C 050794,C 050898,C 050935,C 050977,C 051038,C 051046,C 051111,C 051147,C 051188, C 051197,C 051206,C 051269,C 051274,C 051275,C 051278,C 051286,C 051390,C 051446,C 051450,C 051463,C 051470,C 051494, EXCEPT C 051620,C 051693,C 051717,C 052062,C 052695,C 052921,C 053196,C 053290,C 053429,C 058937,C 059965
23
SPRING SHIFT LEVER
26
BUSHING
29
SHIFT LEVER
32
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
35
NUT
38
PIN
41
BUSHING
44
LOCK PLATE
47
SHIFTING TUBE FOUR-GATE SHIFT, 124.0,124.1 : F 063053 124.2,124.3 : F 079077
53
PIN
56
WASHER SHIFTING TUBE
59
SPRING SHIFTING TUBE
59
SPRING , Replaced By: A1249932101
62
SNAP RING SHIFTING TUBE
65
STOP
65
STOP , F 272214
68
SCREW
71
PIN
74
LOCK
77
WASHER , 124.0,124.1 : F 063053 124.2,124.3 : F 079077
80
BUSHING , 124.0,124.1 : F 063053 124.2,124.3 : F 079077
83
SPACER WASHER , 124.0,124.1 : F 063053 124.2,124.3 : F 079077
86
WASHER , 124.0,124.1 : F 063053 124.2,124.3 : F 079077
89
DISC SPRING
92
SPRING , Replaced By: A2019936101
92
SPRING , 124.0,124.1 : F 063053 124.2,124.3 : F 079077
95
LEVER 1ST AND 2ND SPEED, 124.0,124.1 : F 063053 124.2,124.3 : F 079077
104
LEVER 3RD AND 4TH SPEED, 124.0,124.1 : F 063053 124.2,124.3 : F 079077
113
LEVER 5TH SPEED AND REVERSE
122
SLOTTED GATE
122
SLOTTED GATE , Replaced By: A2022670947
128
SCREW
131
BEARING
134
WASHER COMPRESSED AIR LINE TO BRACKET
134
SCREW
134
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
143
HANDLE , Replaced By: A1242671910
143
HANDLE , USED WITH SPORTLINE
143
HANDLE ,F 188133
143
HANDLE LEATHER COVER, USED WITHOUT SPORTLINE
149
GASKET BEARING BRACKET TO TUNNEL
161
SCREW
164
COVERING
167
SHIFTING ROD 1ST AND 2ND SPEED, F 255070
176
ROD 3RD AND 4TH SPEED,F 177617
185
SHIFTING ROD 5TH SPEED AND REVERSE
197
END PIECE
200
BUSHING
200
BUSHING FROM LEVER TO VALVE BODY ASSEMBLY
203
NUT
206
PIN LOCK SHIFTING ROD
