Поз.
Артикул
Описание

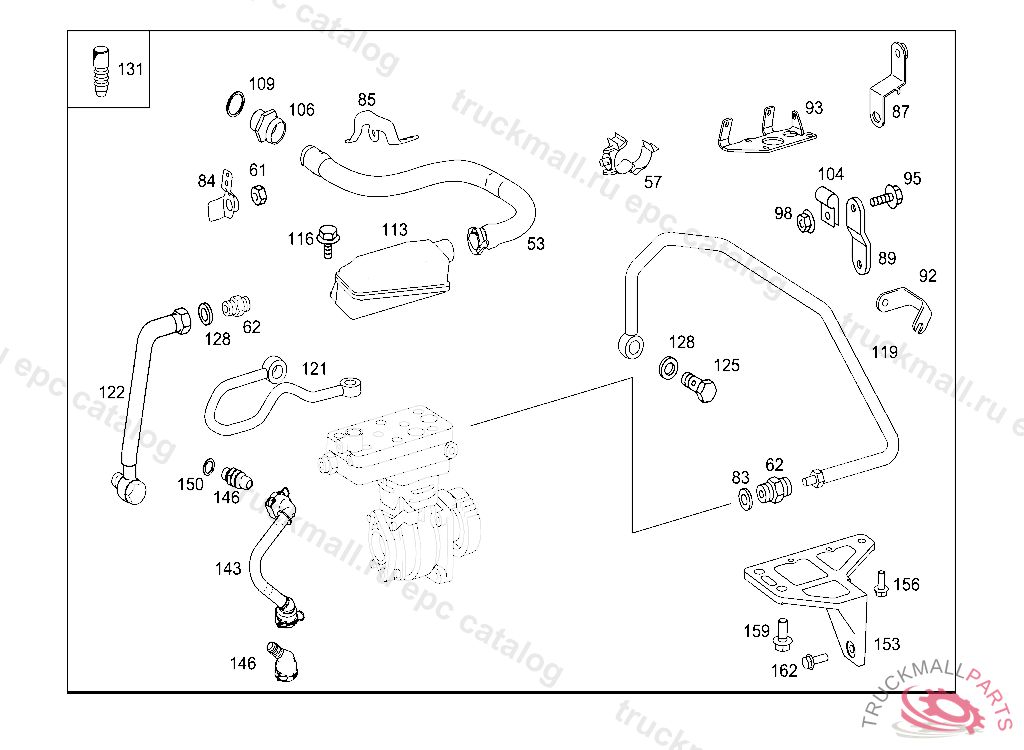

53
SUCTION LINE FROM INTAKE PIPE TO AIR COMPRESSOR
53
SUCTION LINE
53
SUCTION LINE FROM INTAKE PIPE TO AIR COMPRESSOR
57
HOSE BRACKET INTAKE PIPE TO BRACKET
61
NUT BRACKET TO SIDE MEMBER
61
NUT. HEXAGON NUT STRAP TO CONSOLE M12X1.5
62
SCREW FITTING
62
FITTING COOLING WATER LINE TO TURBOCHARGER
62
FITTING DELIVERY LINE TO PUMP
83
SEALING RING OIL PRESSURE GAUGE SENDER UNIT
84
BRACKET AT TIMING CASE
84
BRACKET , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 083991, Replaced By: A4571300340
85
BRACKET AT SUSPENSION EYE
89
BRACKET COOLING WATER LINE TO TIMING CASE,224104
95
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
98
NUT ENGINE MOUNTING M8
104
CLAMP
106
SCREW FITTING
109
SEALING RING ,760252
113
OIL TANK
116
HEXAGON HEAD BOLT COVERING TO CAB
119
LINE COOLING WATER INLET
121
LINE AIR COMPRESSOR COOLING WATER OUTLET,106778
122
COOLANT LINE AIR COMPRESSOR COOLING WATER OUTLET,106779
122
LINE AIR COMPRESSOR COOLING WATER OUTLET,106779
125
SCREW. BANJO BOLT AIR RESERVOIR,CONNECTION: "33",4 872664
125
HOLLOW SCREW FUEL FEED,AT WATER SEPARATOR
128
SEALING RING OIL PRESSURE GAUGE SENDER UNIT
131
PLUG
143
LINE
143
COOLANT LINE
146
FITTING
150
SEALING RING OIL PRESSURE GAUGE SENDER UNIT
153
BRACKET AT AIR COMPRESSOR,224104
156
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
159
HEXAGON HEAD BOLT BRACKET TO FRAME M14X1.5X30
162
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
