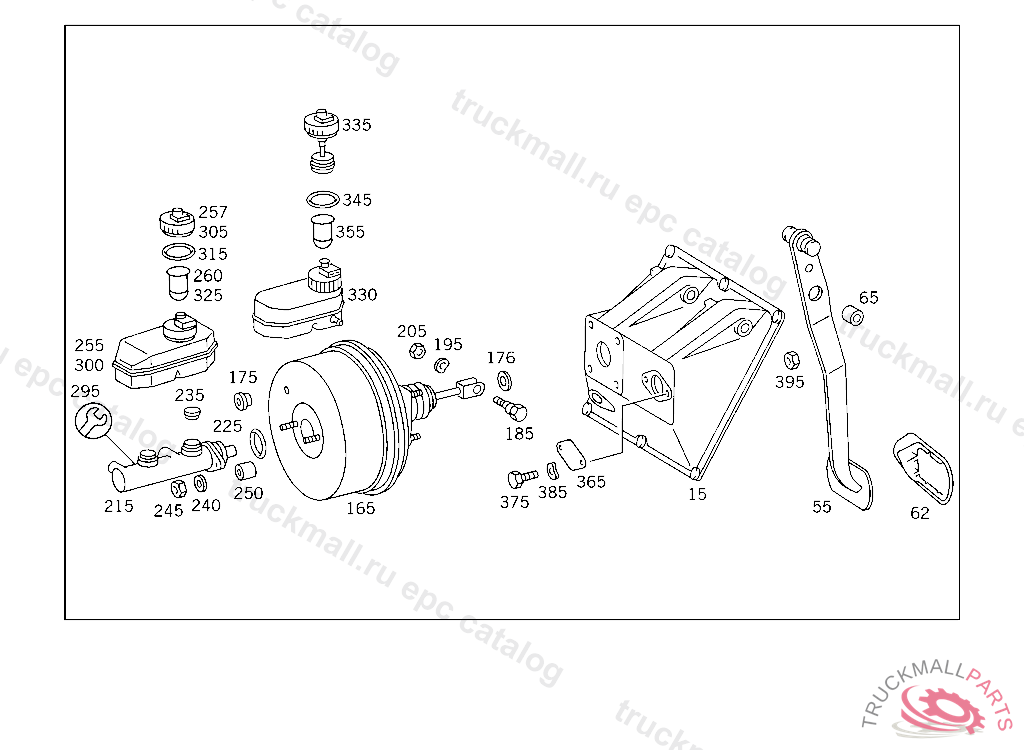

Поз.
Артикул
Описание
15
BEARING BRACKET PEDAL ASSEMBLY
15
BEARING BRACKET PEDAL ASSEMBLY
55
PEDAL BRAKE
55
PEDAL BRAKE, 031804 900880
55
PEDAL
55
PEDAL BRAKE
55
PEDAL , Replaced By: A4612900618
62
PAD BRAKE PEDAL
65
BUSHING
165
BRAKE BOOSTER ASSEMBLYTO 003 430 02 30,000 430 08 08, FROM CHASSIS 040098, FOR GREAT BRITAIN,FROM CHASSIS 035693
165
BRAKE BOOSTER ASSEMBLY"8",033336
165
BRAKE BOOSTER ASSEMBLYTO 002 430 24 30,002 430 73 30, 040097 901874 FOR GREAT BRITAIN,UP TO IDENT NO.035692
165
BRAKE BOOSTER ASSEMBLYTEVES, 601.411-467 FROM CHASSIS 649391,AND 601.476-477 FROM 614797P 000001
175
PROTECTIVE CAP , FROM CHASSIS: 017 062833, FEDERAL, ALSO INSTALLED ON: 059499,060650,061519,061527,062799. 017 062927, CALIFORNIA, ALSO INSTALLED ON: 048629,060112,062772 114 029142, ALSO INSTALLED ON: 002250,003131,016950,026317,026334,026513,027268,027269,027272,027281,027513,027518,027822,027824, 028251,029032,029113,029121,029128. 117 10/50 102743, ALSO INSTALLED ON: 098668,099672,100535,100850,100851,101663,102380,102507,102622,102708,102717. 117 12/52 102759, ALSO INSTALLED ON: 088215,099223,099235,099370,099371,099673,100542,101165,101171,101246,102475,102643,102651,102724.
176
SEAL RING ,145737 EXCEPT FOR 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913,145914,145915,145916,145917,146138. ALSO INSTALLED ON 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701.
185
NUT ROD TO LEVER,526440
185
SCREW , UP TO CHASSIS: 023 101126 072 103733 073 106943, Replaced By: A1152950172, +001N000137008202, +001N000933008131
195
SPRING WASHER , Replaced By: N000137008212
195
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
205
NUT COVER PLATE
215
BRAKE MASTER CYLINDERTO 002 430 99 30
215
BRAKE MASTER CYLINDER PARTS KIT
215
BRAKE MASTER CYLINDER ,020104
215
BRAKE MASTER CYLINDERTO 002 430 99 30
215
BRAKE MASTER CYLINDERTO 003 430 06 30
215
BRAKE MASTER CYLINDER ,035692020105
225
SEAL RING
235
GUIDE BUSHINGTO 003 430 90 01, 30 01,089608
240
WASHER EXHAUST MUFFLER TO STRAP
240
WASHER , Replaced By: N000125008443
245
NUT , Replaced By: N304032008006
245
NUT
250
BUSHING , 415 5 014668 416 5 000515 417 4 972023
250
BUSHING , Replaced By: A0004310950
255
RESERVOIR , Replaced By: A0014315802
255
RESERVOIR
257
FILLER CAPTO 000 431 87 02
260
STRAINER
295
REPAIR KIT , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 807178, Replaced By: A0004302983
295
REPAIR KITTO 005 430 21 01
295
REPAIR KIT
295
REPAIR KITTO 004 430 93 01,004 430 98 01
300
RESERVOIRTEVES,TO 004 430 28 01, 601.411-467 FROM CHASSIS 649391,AND 601.476-477 FROM 614797P 000001
305
FILLER CAP WITH SEAL RING
305
FILLER CAP , FOR USE LESS DAMLILER-BENZ BODY FROM IDENT NO. 034054 ALSO INSTALLED ON 033499,033577,033608,033628,033648,033665,033672-033677,033681-033688,033981,033998,034012. FOR USE WITH DAIMLER-BENZ BODY FROM IDENT NO. 034051,ALSO INSTALLED ON 033499,033577,033608,033628,033648,033665,033672-033677,033681-033688,033981,033998,034012.
315
SEAL RINGTEVES
315
SEAL RING42X21.5 MM
325
STRAINER
325
STRAINER , Replaced By: A0004316934
330
RESERVOIR , Replaced By: A0014314702, +001A0004314133
330
RESERVOIR BRAKE FLUID
335
FILLER CAP
345
SEAL RING42X21.5 MM
345
SEAL RINGTEVES
355
STRAINER
365
COVER PLATE PEDAL BRACKET
375
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
375
SCREW , Replaced By: N304017008016
385
SPRING WASHER , Replaced By: N000137008212
385
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
395
NUT , Replaced By: N304032008006
395
NUT
999
REPAIR KIT CLUTCH MASTER CYLINDER TO 001 295 80 06
999
REPAIR KIT CLUTCH MASTER CYLINDER TO 001 295 82 06
999
INTERMEDIATE PIECE
999
HOSE , 016 FROM CHASSIS 027623, ALSO INSTALLED ON, SEE GROUP 22/24, FOOTNOTE 6, 018 FROM CHASSIS 028986, ALSO INSTALLED ON, SEE GROUP22/24, FOOTNOTE 7, 019 FROM CHASSIS 029326
999
ROHRVERSCHRAUBUNG EM. UNION SCREW LINE MOUNTING
999
BOTTOM VALVETO 003 430 83 01,361491
999
CLAMPTO 000 431 58 02
999
STRAINER , Replaced By: A0004314334
999
RESERVOIR LESS WARNING DEVICE ATE
999
FILLER CAP BUTTRESS THREAD
999
WASHER , NOT FOR USE WITH MERCEDES-BENZ HYDRAULIC-AUTOMATIC CLUTCH
999
PIN
999
PLUG
999
SEAL RING
999
MASTER CYLINDER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 075650, Replaced By: A0012958006
999
MASTER CYLINDER CLUTCH
999
MASTER CYLINDER CLUTCH
999
BRAKE BOOSTER ASSEMBLY DIA., "9", 031805 900881
999
BRAKE BOOSTER ASSEMBLY DIA., "09", 040098 901875 FOR GREAT BRITAIN,FROM IDENT NO. 035693
999
BRAKE MASTER CYLINDER ,035693
999
BRAKE MASTER CYLINDER
999
SEAL RING
999
SEAL RINGTEVES
999
NEEDLE BEARING JOINT TO PIN
999
NEEDLE BEARING JOINT TO PIN
999
NEEDLE BEARING JOINT TO PIN
999
LINE
999
PAD BRAKE
999
LOCK HYDRAULIC LINE TO CAB
999
BRACKET PIPE LINE TO BELL HOUSING, 071355
999
SPRING
999
PAD , Replaced By: A1072910182
999
BUSHING , Replaced By: A1242920050
999
SPRING RETAINER SPRING TO PUSH ROD
999
HOSE
999
BRACKET
999
BUSHING
999
SPRING RETAINER SPRING TO PUSH ROD
999
SPRING CLUTCH PEDAL RESET
999
LINE FROM TEST CONNECTION TO VALVE 400 MM,4 478330
999
LINE FROM TEST CONNECTION TO RIGHT WHEEL CYLINDER 650 MM
999
LINE FROM BRAKE POWER REGULATOR,CONNECTION "2",TO BRAKE HOSE 1150 MM
999
ROD OVER-CENTER ACTING SPRING
999
PIN BELT TIGHTENER
999
LINE , Replaced By: A3404201029
999
BRACKET
999
LINE , Replaced By: A3404202029
999
BRACKET
999
BRACKET
999
BRACKET CLUTCH RESERVOIR
999
PEDAL
999
PEDAL
999
PEDAL , Replaced By: A4612900618
999
PEDAL
999
PEDAL
999
PEDAL
999
PEDAL
999
BUSHING
999
BUSHING APPARATUS PLATE 9 MM, TO BE ADAPTED DURING ASSEMBLY
999
SPINDLE
999
SPINDLE BRAKE PEDAL
999
SPINDLE
999
SPINDLE CLUTCH PEDAL
999
BEARING BRACKET , Replaced By: A4602941201
999
COVER PLATE BEARING BRACKET
999
BEARING BRACKET PEDAL ASSEMBLY
999
BEARING BRACKET
999
STOP STOP LIGHT SWITCH
999
PIPE FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER
999
COVER PLATE
999
BRACKET
999
CONNECTOR
999
CONNECTOR
999
CONNECTOR
999
GROMMET
999
HOSE BRAKE HOSE, ORDER BY THE METER
999
BEARING BRACKET PEDAL ASSEMBLY
999
SPRING
999
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
999
COTTER PIN CYLINDER TO BRACKET
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER , Replaced By: N000125008443
999
WASHER BRACKET TO AIR INTAKE SCOOP
999
WASHER , Replaced By: N000125010532
999
WASHER RADIATOR TO RUBBER MOUNTING
999
SPRING WASHER LICENSE PLATE TO BRACKET
999
SPRING WASHER , Replaced By: N000137008212
999
NUT , Replaced By: N308675010000
999
SCREW , Replaced By: N304017006018
999
SCREW CAB FLOOR COVERING M 6X25
999
SCREW , Replaced By: N304017008016
999
SCREW , Replaced By: N304017008023
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017008016
999
NUT BALL PIVOT TO LEVER
999
NUT , Replaced By: N304032008006
999
PIN LEVER TO ROD
999
GROOVED PIN AT BEARING BRACKET
999
HOSE LEAK LINE, ORDER BY THE METER
999
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
SCREW CABLE HARNESS MOUNTING
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
NUT PUSH ROD
999
LOCK , Replaced By: N912002008001
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
CLAMP LINE TO SIDE MEMBER
