Поз.
Артикул
Описание
5

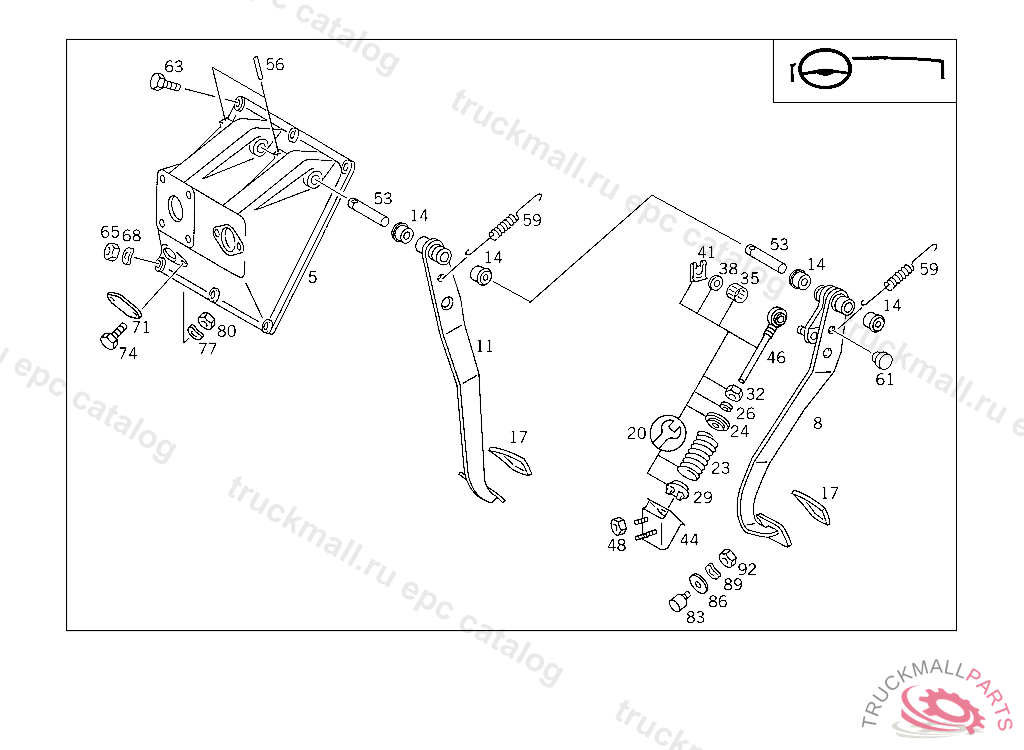

BEARING BRACKET PEDAL ASSEMBLY
8
PEDAL (CLUTCH PEDAL)
11
PEDAL
14
BUSHING , Replaced By: A1242920050
17
PAD , Replaced By: A1072910182
17
PAD BRAKE
20
REPAIR KIT OVER-CENTER ACTING SPRING, FROM IDENT NO.095166, ORDER ADDITIONALLY: 461 993 00 01
23
SPRING CLUTCH PEDAL RESET
24
SPRING RETAINER SPRING TO PUSH ROD
26
BUSHING APPARATUS PLATE 9 MM, TO BE ADAPTED DURING ASSEMBLY
29
SPRING RETAINER SPRING TO PUSH ROD
32
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
35
NEEDLE BEARING JOINT TO PIN
35
NEEDLE BEARING JOINT TO PIN
35
NEEDLE BEARING JOINT TO PIN
38
WASHER , Replaced By: N000125008443
38
WASHER EXHAUST MUFFLER TO STRAP
41
LOCK PULL TO FASTENER
41
LOCK , Replaced By: N912002008003
44
BRACKET
48
NUT , Replaced By: N913002006009
48
NUT OIL TANK TO BRACKET
53
SPINDLE
56
GROOVED PIN AT BEARING BRACKET
59
SPRING
61
PLUG
63
SCREW BRACKET TO CROSS CONNECTION STRUT
63
SCREW , Replaced By: N304017008034
65
NUT
68
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
68
SPRING WASHER , Replaced By: N000137008212
74
SCREW , Replaced By: N304017008016
