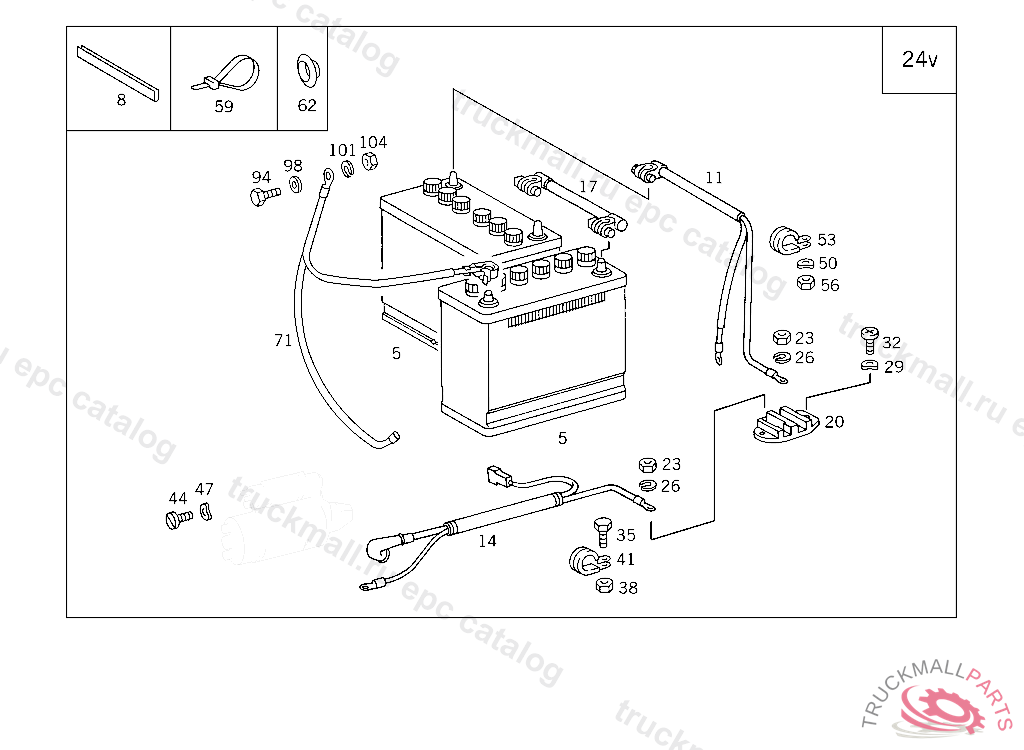

Поз.
Артикул
Описание
5
BATTERY
5
BATTERY , Replaced By: A0035413501
8
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
11
POSITIVE CABLE FROM BATTERY TO CABLE CONNECTOR
11
POSITIVE CABLE FROM BATTERY TO CABLE CONNECTOR
14
POSITIVE CABLE FROM CABLE CONNECTOR TO STARTING MOTOR
17
ELECTRIC CABLE BETWEEN THE BATTERIES
20
CABLE CONNECTOR SIDE MEMBER,RIGHT
23
NUT SPRING-LOADED PUSH ROD
23
NUT
26
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
26
SPRING WASHER LICENSE PLATE TO BRACKET
26
SPRING WASHER , Replaced By: N000137008212
29
SPRING WASHER ALTERNATOR CONNECTION D+
32
SCREW JUNCTION BOX TO BRACKET
35
SCREW BEARING BRACKET TO TRANSMISSION
35
SCREW BRACKET ON LOAD SENSOR
35
SCREWM 6X16
38
NUT AIR CLEANER ELEMENT, Replaced By: N000000004429
38
NUT AIR CLEANER ELEMENT
41
CLAMP LINE MOUNTING
41
CLAMP DELIVERY AND SUCTION LINES TO FRAME
41
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
44
SCREW ,374026
47
SPRING WASHER ALTERNATOR CONNECTION D+
50
SPRING WASHER LICENSE PLATE TO BRACKET
53
CLAMP WIRE CABLE TO SIDE MEMBER AND TO TRANSMISSION
56
NUT SPRING-LOADED PUSH ROD
59
LOOM TIE
62
GROMMET
71
GROUND STRAP FROM BATTERY TO BODY
71
GROUND STRAP FROM BATTERY TO BODY 24 V
94
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
94
SCREW , Replaced By: N304017008016
98
WASHER , Replaced By: N000125008443
98
WASHER EXHAUST MUFFLER TO STRAP
101
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
104
NUT
999
GROMMET HOSE LINE PROTECTION TO 000 546 16 30,71 30
999
SCREW
999
EXPANSION PLUG TO LOCK TRAILER-PLUG-SOCKET OUTLET
999
PIN BUSHING WITH DETENT,LESS CATCH FOR HOUSING 6 MM2,5 097182
999
SCREW TOP
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
NUT IN CASE OF SUBSEQUENT INSTALLATION
999
NUT , Replaced By: N304032005005
999
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
SCREW PUMP TO BRACKET
999
SHEET METAL SCREW , Replaced By: N007981004252
999
SHEET METAL SCREW BRACKET TO ELECTRICAL APPARATUS COMPARTMENT 4,8X19
999
NUT , Replaced By: N304032005005
999
WASHER BOOT TO CAB FLOOR
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER , Replaced By: N000433005304
999
GASKET POSITION LAMP
999
GROUND STRAP GROUND CABLE TO FRAME AND TO CAB
999
BRACKET SERIES RESISTOR
999
CABLE HARNESS BLOWER CABLE
999
ELECTRIC CABLE FROM SERIES RESISTOR TO PRE-GLOW TIME RELAY
999
COVER AUTOMATIC CUT-OUT
999
RESISTOR AUTOMATIC HEATING BLOWER MOTOR
999
PLUG. FLAT PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 4.0-6.0 MM2
999
PIN BUSHING HOUSING HEADLAMP,WIPER MOTOR,BLOWER SWITCH
999
PLUG REAR CABLE CONNECTOR,5 180266
999
PIN BUSHING HOUSING UNIPOLAR
999
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
999
PIN BUSHING HOUSING UNIPOLAR
999
CABLE CONNECTOR FRAME,REAR
999
RELAY
999
PLUG
